TEVS-AR0234-EVK Wide FOV

TEVS-AR0234-C-S128-IR-EVK

SKU: TEVSAR0234CS128IREVK Category: MIPI-CSI2 Sensors

More Information

Product Brief

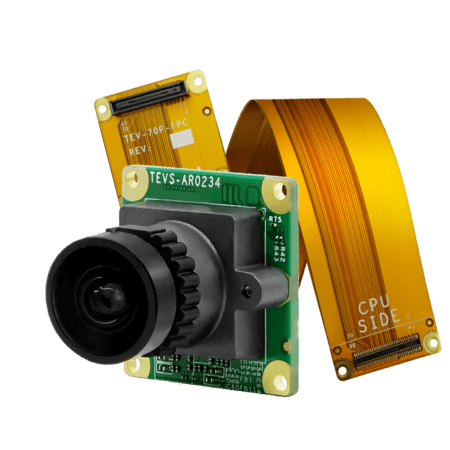

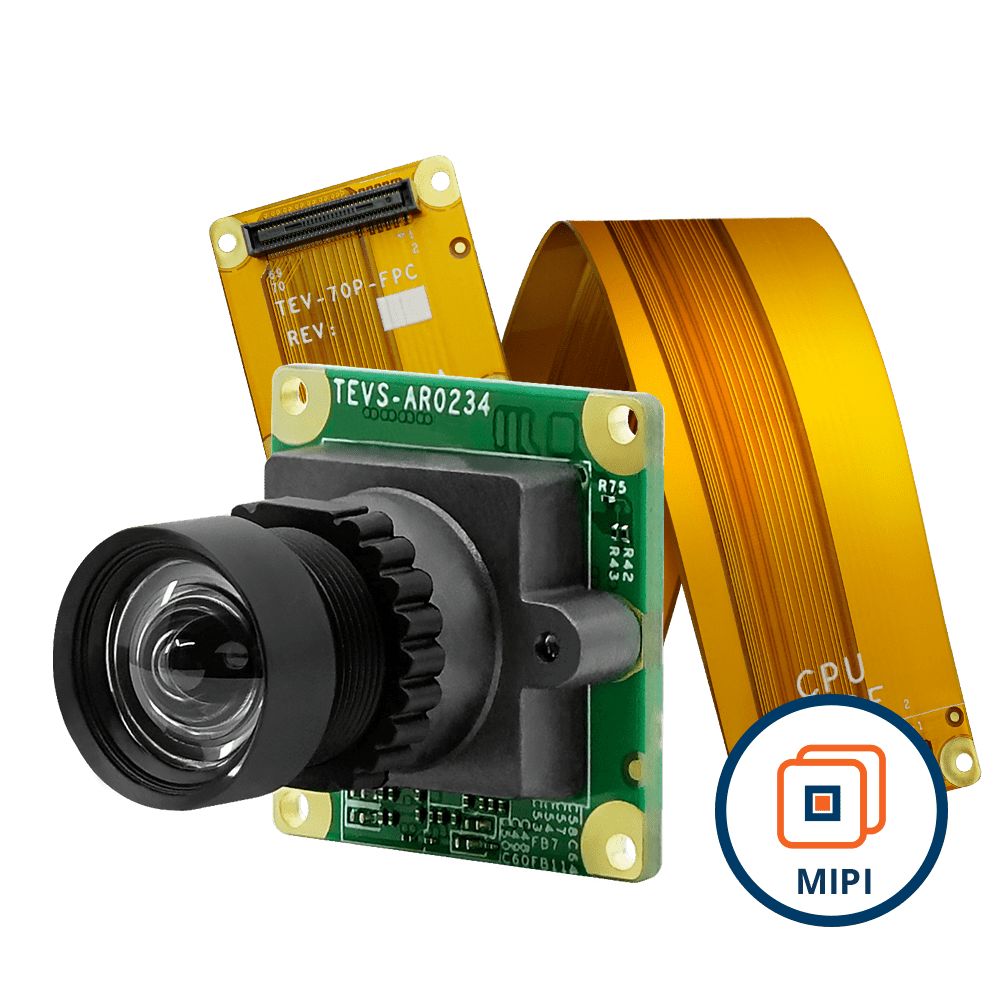

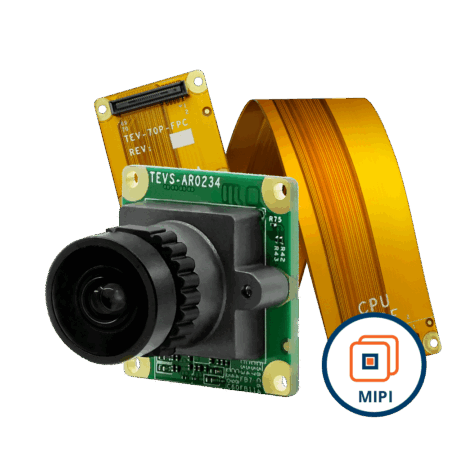

MIPI-CSI2 Sensor onsemi AR0234 2MP Full-HD Color Global Shutter with ISP + 128 Degree M12 Lens with IR-Cut Filter + FPC Cable for Technexion SOM EVK

30 in stock (can be backordered)

Quantity	Discount (%)	Price
1 - 99	—	$128.00
100 - 249	5 %	$121.60
250 - 499	10 %	$115.20
500+	15 %	$108.80

x

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0234
Active Pixels	1920 (H) x 1200 (V) = 2.3MP
Pixel Size	3.0 μm x 3.0 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	38 dB
Optical Format	1/2.6” (Diagonal 6.8 mm)
Shutter Type	Global Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	1920 x 1200 @ 60 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 120 fps 640 x 480 @ 120 fps
Output Format	YUV422-UYVY
Input Clock Range	48 MHz

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	70 Pin Standardized Connector

Power Specifications

Supply Voltage	Analog: 2.8V I/O: 1.8V Digital: 1.15V & 3.3V
Power Consumption	1920 x 1200 @ 60 fps ≤ 727 mW
SW Standby Power	≤ 53 mW Standby
HW Standby Power	≤ 30 mW Standby

Software Support

Platform Support	NXP i.MX93 / i.MX95 NXP i.MX8M Nano / Mini / Plus
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	2.87 mm
Aperture	F2.8
Module D-FOV	127.7° ± 5%
Module H-FOV	110.5° ± 5%
Module V-FOV	68.6° ± 5%
TTL	21 mm
BFL	5.27 mm
MOD	0.3 m
Distortion	< – 20.0%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 18.5(D) mm
Weight	≤ 12 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

TEVS-AR0234 Block Diagram

Spectral Characteristics

AR0234 Spectral Characteristics

Switch Setting

AR0234 Switch
