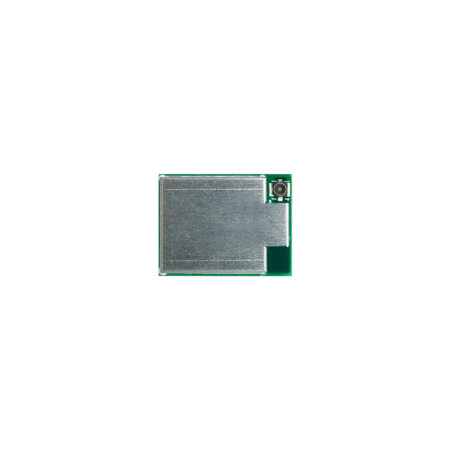

PIXI-9377-P TOP

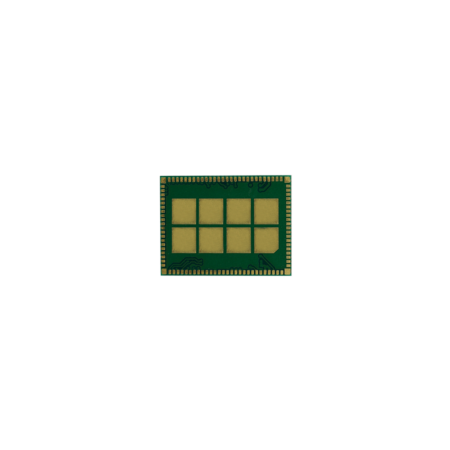

PIXI-9377-P BACK

PIXI-9377-P

SKU: PIXI9377P Category:
More information
Product Brief

QCA9377 WIFI 802.11AC (PCIE) + BLUETOOTH (USB) SOLDER DOWN MODULE

Available on backorder

Quantity Discount (%) Price
1 - 499 — $25.00
500+ 0.04 % $24.99
x

Additional information

Connectivity
Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector
Power Specifications
Power Input

3.3V DC

Power Consumption

Depending on Configuration
Environmental and Mechanical
Dimensions

12 x 16 mm

Form Factor

M.2 LGA Type 1216

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Industrial: -40° to +85° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

≤ 2 grams
Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with CE / FCC / RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)
QDID 193238 (Bluetooth 5)
Commercial Information
SKU Number

PIXI9377P

PIXI-9377-P Block Diagram

PIXI-9377-P Dimensions
