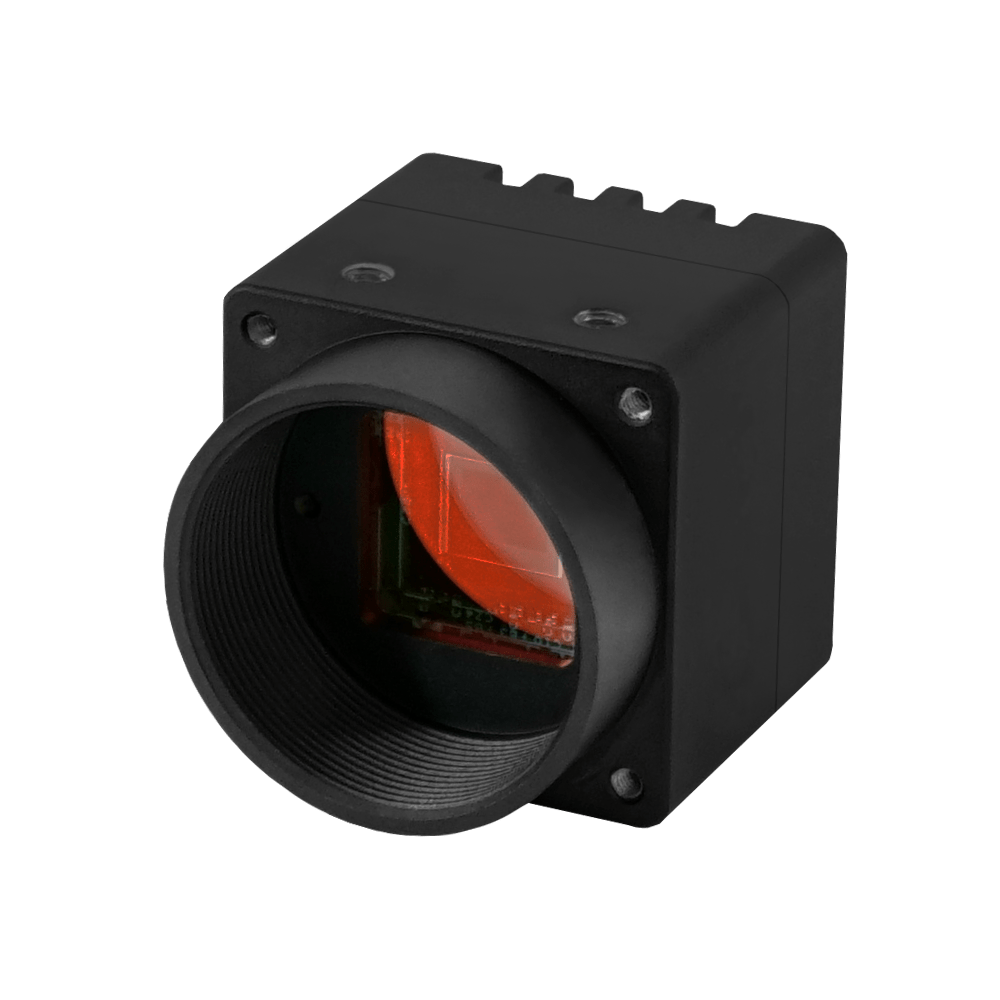

USB3 Type-C Enclosed Camera with onsemi AR0144 1MP Global Shutter with Onboard ISP + IR-Cut Filter + Incl. 1 Meter USB C Cable with C Mount Body - VCS-AR0144-CB - TechNexion - Embedded Vision | MIPI CSI-2 | USB | GMSL2 | GigE Vision

Specifications

Camera Information

CMOS Sensor	onsemi AR0144
Active Pixels	1280 (H) x 800 (V) = 1MP
Pixel Size	3.0 μm x 3.0 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	38 dB
Optical Format	1/4” (Diagonal 4.5 mm)
Shutter Type	Global Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	1280 x 800 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Maximum Frame Rate (MJPEG)	1280 x 800 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Output Format	UYVY MJPEG(JPG)

Interface

Connector	USB Type-C 5 Gbps

Power Specifications

Supply Voltage	5V ± 5%
Power Consumption	≤ 0.93W
Standby Power	≤ 0.1W Standby

Software Support

Operation Systems	UVC Plug-and-play Windows 10/11 Linux Yocto
SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Dimensions	29.5(W) x 29.5(H) x 33.7(D) mm
Weight	39 grams
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Vibration	1 Grms random 5-500Hz hr/axis
Relative Humidity	10 to 90 %
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.89.5050
ECCN	EAR99
REACH / RoHS	Yes

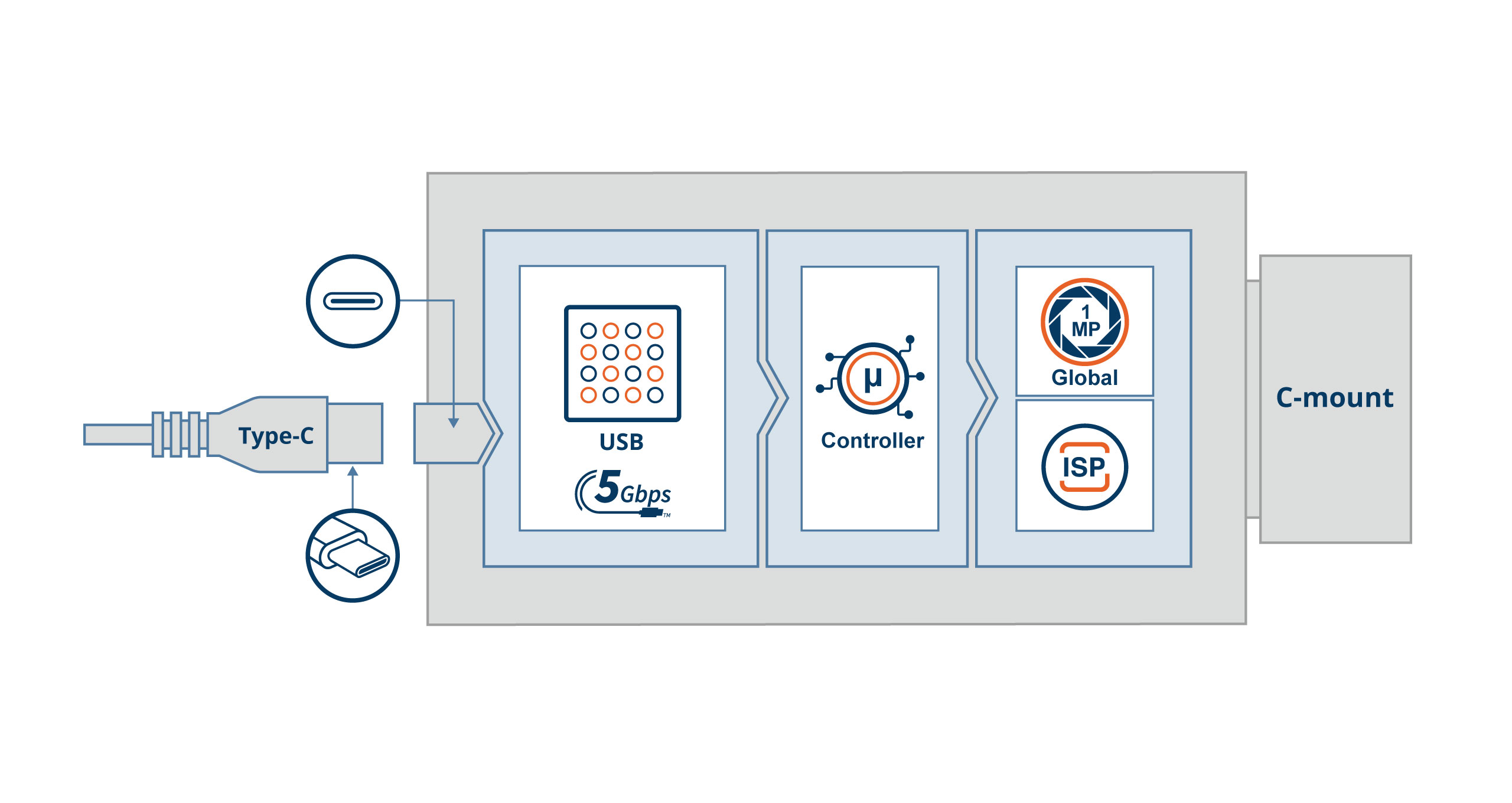

Block Diagram

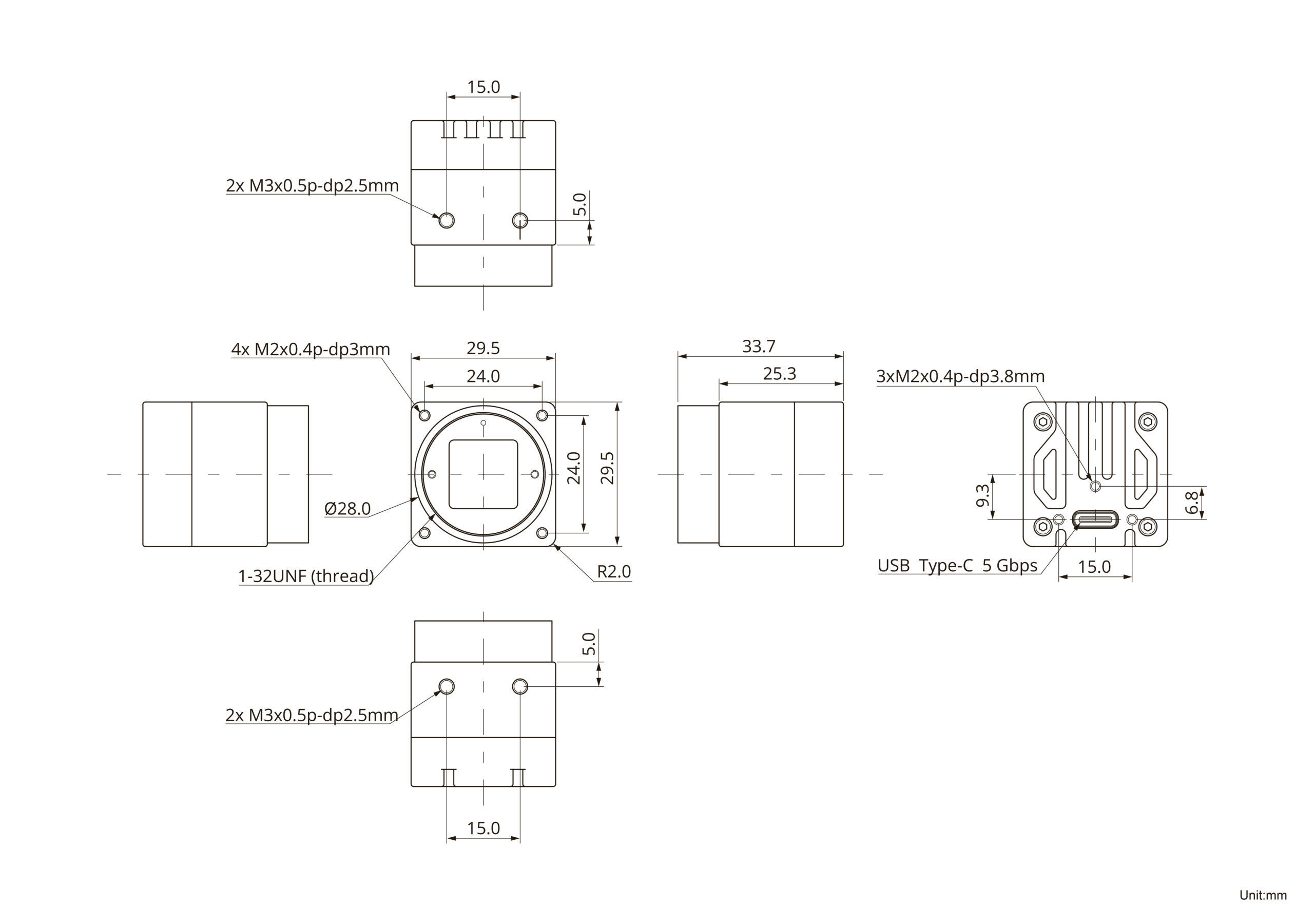

Dimensions

Spectral Characteristics

Part Numbers

Order Information Example:

VCS-AR0144-x-CB-xx

Option	Code	Description
Chromaticity	C	Color
Filter	-	-
Filter	IR	IR Cut Filter 650nm

Find the right part number

Filtered results based on your current selections

1.

Sensor Type

Choose your sensor type

2.

IR Cut Filter

Select with or without IR Cut Filter

Matching standard parts

	Part number	Description	Availability

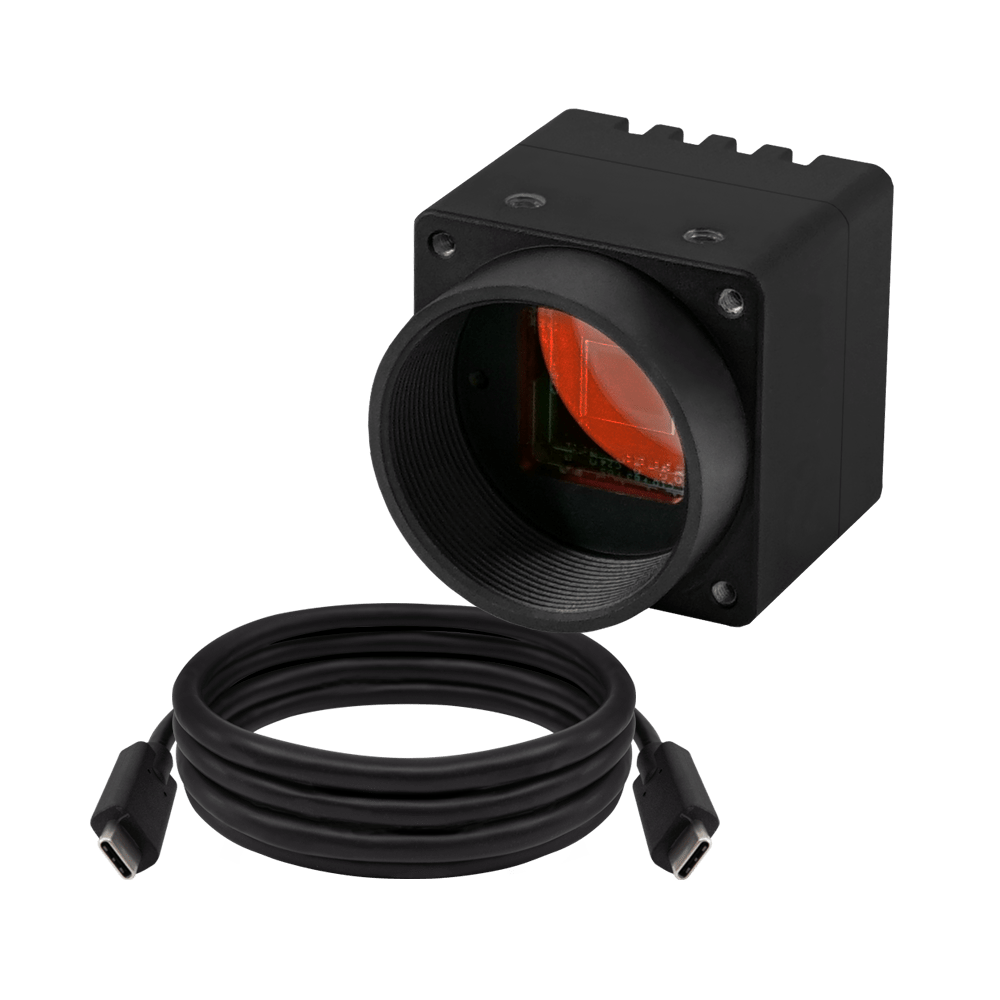

	VCS-AR0144-C-CB-IR	USB3 Type-C Enclosed Camera with onsemi AR0144 1MP Color Global Shutter with Onboard ISP + IR-Cut Filter with C Mount Body + Incl. 1 Meter USB C Cable	In Stock

Documentation

Getting Started

Product Brief

Quick Installation Guide

VizionViewer™

Support Portal

Mechanical

DXF File

STP 3D File

Certification

RoHS / REACH

Conflict Minerals

Longevity
