OSM-SL2610

  • Synaptics Astra™ SL2610 SOC
  • Cortex-A55 up-to 2Ghz
  • Google Kelvin Core AI / NPU 1 TOPS
  • Up to 2GB LPDDR4 memory
  • Support PSA Level 3 Security
  • OSM-S formfactor

Order this product

OSM-SL2610 Highlights

OSM Type-S

Scalability

Edge AI

Integrated Google Kelvin core AI accelerator.

Rugged and Reliable

Time to Market

Software Support

Embedded Vision

I/O

Specifications

Core System
Processor

Synaptics SL2610

Processor Speed

upto 2Ghz

Architecture

Arm Cortex A55

PMIC

Discrete Power Solution

Memory

Upto 1GB DDR3L
Upto 2GB LPDDR4

Storage

16GB eMMC (default)

System on Module

OSM Size-S

Connectivity
Network LAN

2x RGMII

Software Support
Standard Support

Linux
Yocto

Environmental and Mechanical
Dimensions

30 x 30 mm

Weight

≤ 3 grams

Form Factor

OSM Type-S

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Vibration

1 Grms random 5-500Hz hr/axis

Relative Humidity

10 to 90 %

Operation Temperature

Commercial: 0°C to +60°C
Industrial: -40°C to +85°C

Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

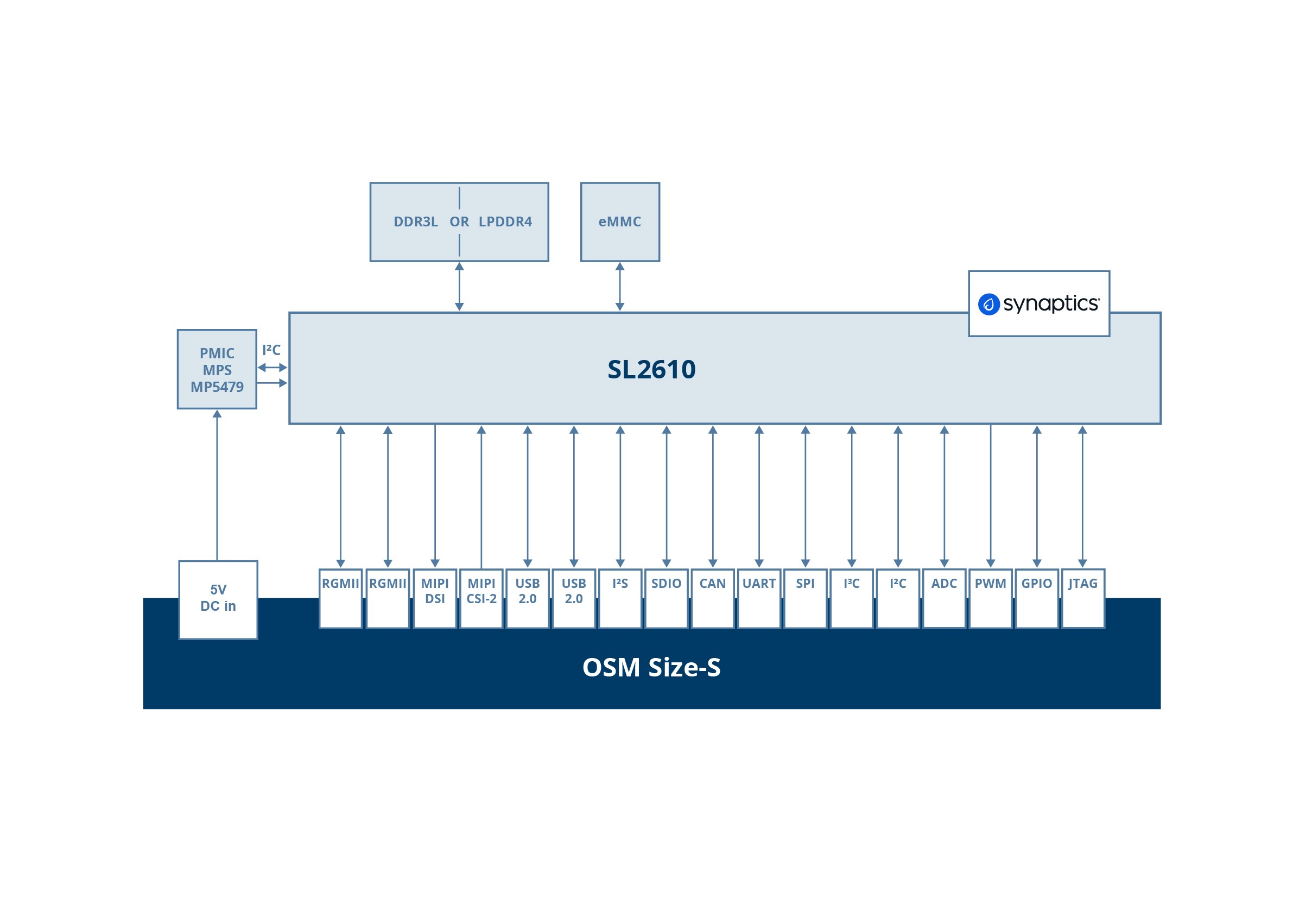

Block Diagram

OSM-SL2610 Block diagram

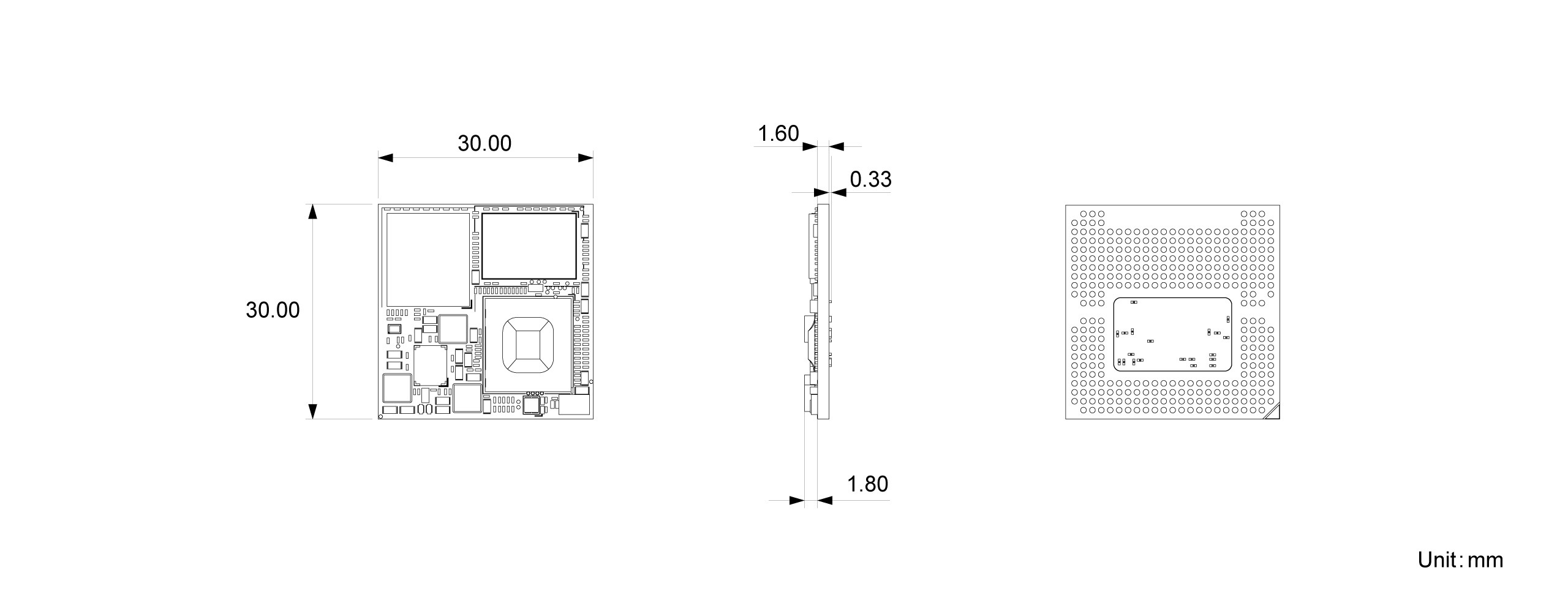

Dimensions

OSM-SL2610 Dimensions
