WB-EDM-G-IMX8M-NANO

Order this product

Product Brief

Developer Page

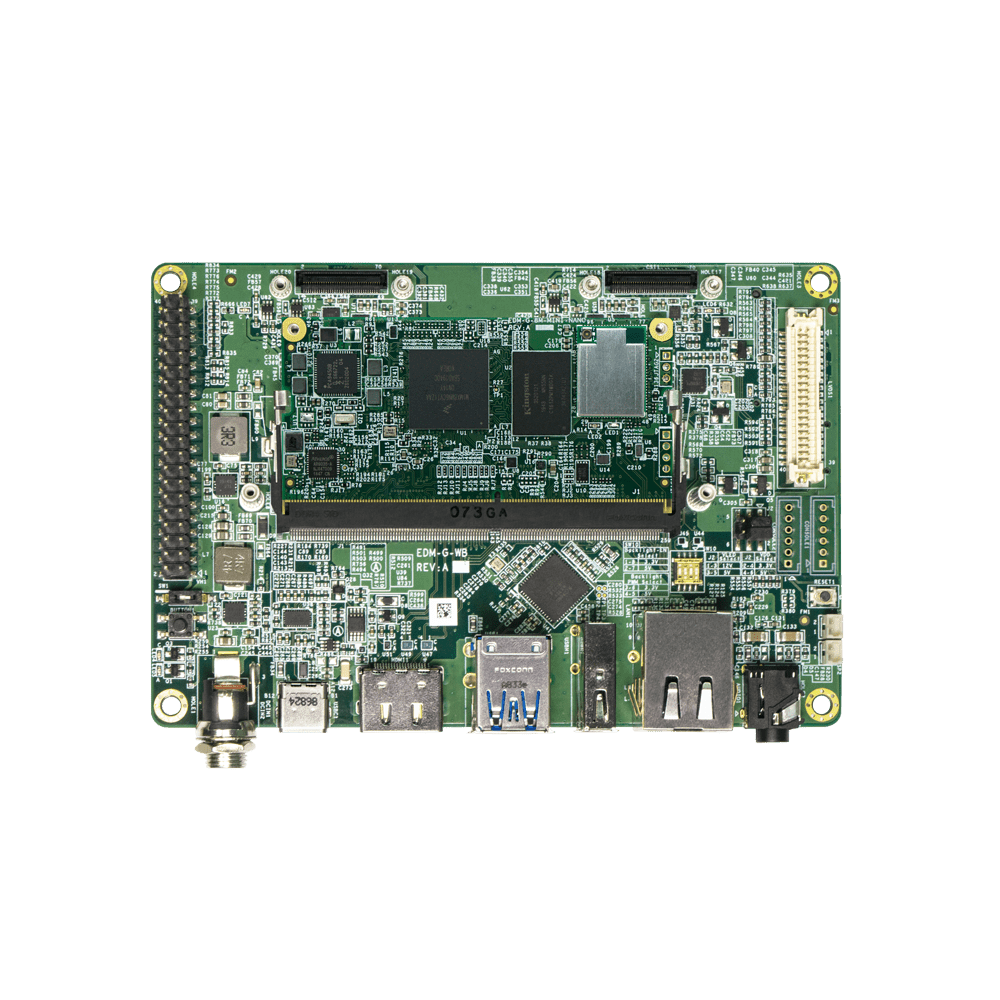

WB-EDM-G-IMX8M-NANO TOP

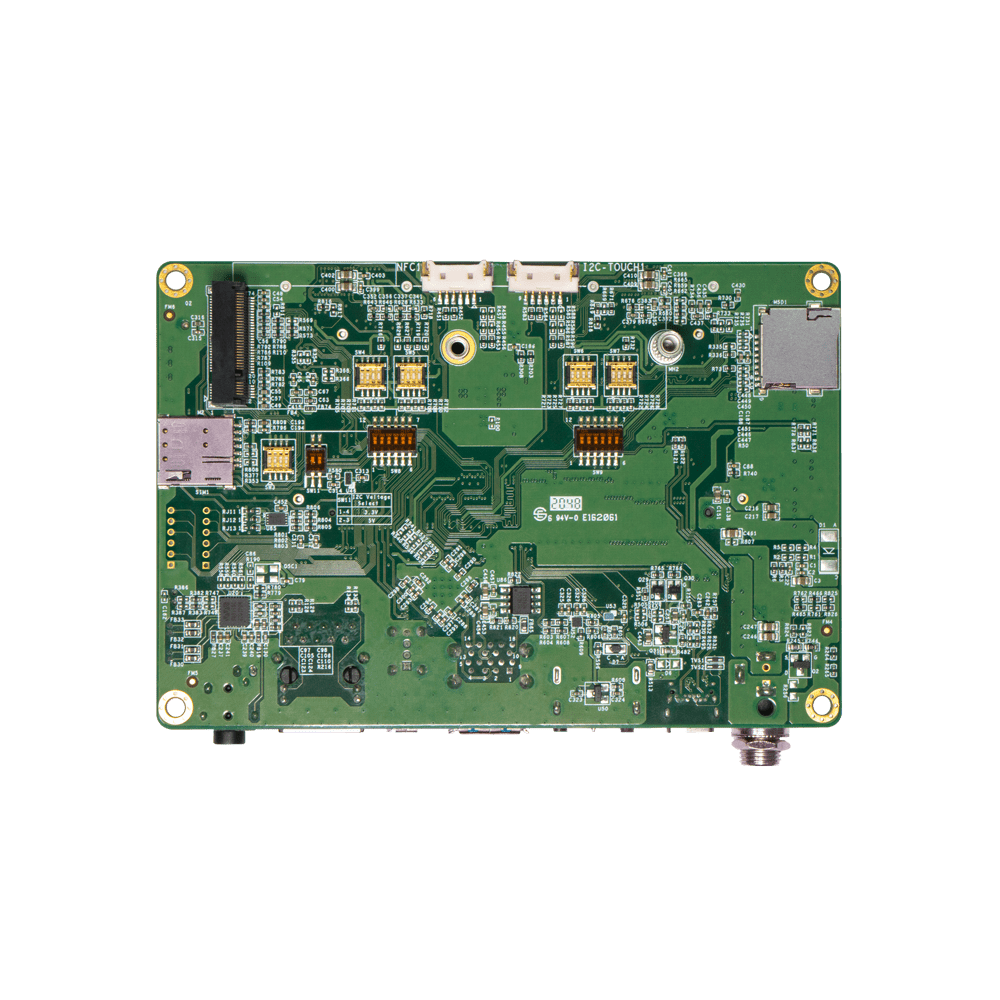

WB-EDM-G-IMX8M-NANO BACK

Highlights

Core System

Processor	NXP i.MX8M Nano
Architecture	ARM Cortex-A53 + M7
AI / ML	OpenCL CPU: 32 GOPS
PMIC	NXP PCA9450
Memory	Upto 2GB LPDDR4
Storage	32GB eMMC (default)
Board-to-Board Connector	EDM Type G connector (260-pin)
System on Module	EDM SOM
Debug Interface	JTAG Interface by Through-hole

Connectivity

Network LAN	1x Atheros AR8035 Gigabit LAN
Wi-Fi	Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac
Bluetooth	Qualcomm Atheros QCA9377 Bluetooth
Antenna	MHF4 connector

Signaling

I/O	LAN MIPI CSI MIPI DSI USB USB OTG I²S SDIO UART SPI I²C PWM GPIO

WB-EDM-G-IMX8M-NANO Block Diagram

WB-EDM-G-IMX8M-NANO Dimensions

Documentation

Getting Started

Product Brief

Quick Installation Guide

EDM Type G Product Family

TechNexion Software Loader

OS Support

Android 10

Yocto (Zeus)

Ubuntu 20.04 LTS

Boot2Qt

Source Code

Android 10

Linux (Kernel 5.4)

Yocto (Zeus)

Mechanical

DXF File

STP 3D File

PCB Footprint

Carrier Board

Schematics

PCB Layout

Gerber File

Certification

Declaration of Conformity

RoHS / REACH

Conflict Minerals
