| Camera Information |
|---|
| CMOS Sensor | onsemi AR0522
|
|---|
| Active Pixels | 2592 (H) x 1944 (V) = 5MP
|
|---|
| Pixel Size | 2.2 µm x 2.2 µm
|
|---|
| Illuminated type | Back Side Illuminated (BSI)
|
|---|
| Maximum S/N Ratio | 40 dB
|
|---|
| Optical Format | 1/2.5" (Diagonal 7.13mm)
|
|---|
| Shutter Type | Rolling Shutter
|
|---|
| Chromaticity | Color / Mono
|
|---|
| Maximum Frame Rate (YUV422-UYVY) | 2592 x 1944 @ 24 fps
2560 x 1440 @ 32 fps
1920 x 1080 @ 60 fps
1280 x 960 @ 60 fps
1280 x 720 @ 60 fps
640 x 480 @ 120 fps
|
|---|
| Output Format | YUV422-UYVY
RGB888
RGB565
RAW8
RAW10
RAW12
|
|---|
|
| Interface |
|---|

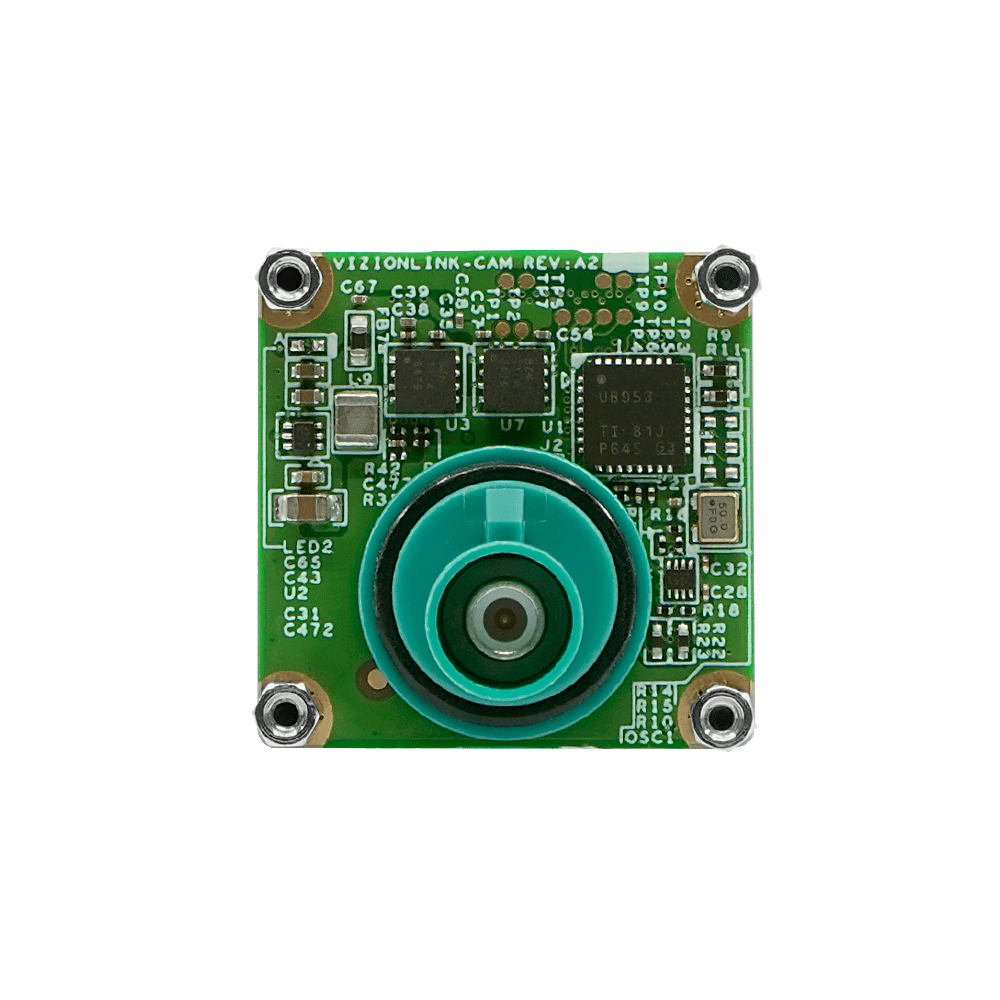

| Serial Link | FPD-Link III
|
|---|
| Serializer | TI DS90UB953
|
|---|
| Connector | FAKRA SMB Jack Z-Code
|
|---|
|
| Power Specifications |
|---|
| Power over Coax | 10.8V – 26.4V
|
|---|
| Power Consumption | UYVY 2592 x 1944 @ 24 fps ≤ 1.2W
|
|---|
| Standby Power | ≤ 0.1W Standby
|
|---|
|
| Software Support |
|---|
| Platform Support | NVIDIA Jetson AGX Orin
NVIDIA Jetson Orin Nano / NX
NVIDIA Jetson Xavier NX
NVIDIA Jetson Nano
NXP i.MX95
TI Sitara™ AM68 / AM69
TI Jacinto™ TDA4VM / TDA4VH
|
|---|
| Operation Systems | Linux
Yocto
|
|---|
| SDK | VizionViewer™ / VizionSDK
|
|---|
|
| Environmental and Mechanical |
|---|
| Dimensions | 24.5(W) x 24.5(H) x 30.0(D) mm
|
|---|
| Weight | 20 grams
|
|---|
| Operation Temperature | -30°C to +70℃
|
|---|
|
| Certification and Compliance |
|---|
| Certification | Compliant with CE / FCC / RoHS / REACH directives
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8525.89.5050
|
|---|
| ECCN | EAR99
|
|---|
| REACH / RoHS | Yes
|
|---|
|
