| Camera Information |
|---|
| CMOS Sensor | onsemi AR0821
|
|---|
| Active Pixels | 3848 (H) x 2168 (V) = 8MP
|
|---|
| Pixel Size | 2.1 μm x 2.1 μm
|
|---|
| Illuminated type | Back Side Illuminated (BSI)
|
|---|
| Maximum S/N Ratio | 41.8 dB
|
|---|
| Optical Format | 1/1.7” (Diagonal 9.25 mm)
|
|---|
| Shutter Type | Rolling Shutter
|
|---|
| Chromaticity | Color
|
|---|
| Maximum Frame Rate (YUV422-UYVY) | 3840 x 2160 @ 15 fps
2560 x 1440 @ 30 fps
1920 x 1080 @ 60 fps
1280 x 720 @ 60 fps
640 x 480 @ 60 fps
|
|---|
| Output Format | YUV422-UYVY
RGB888
RGB565
RAW8
RAW10
RAW12
|
|---|
| HDR Support | Yes
|
|---|
|
| Interface |
|---|
| Serial Link | FPD-Link III
|
|---|
| Serializer | TI DS90UB953
|
|---|
| Connector | FAKRA SMB Jack Z-Code
|
|---|
|
| Power Specifications |
|---|
| Power over Coax | 10.8V – 26.4V
|
|---|
| Power Consumption | UYVY 3840 x 2160 @ 15 fps ≤ 1.6W
|
|---|
| Standby Power | ≤ 0.1W Standby
|
|---|
|
| Software Support |
|---|
| Platform Support | NVIDIA Jetson AGX Orin
NVIDIA Jetson Orin Nano / NX
NVIDIA Jetson Xavier NX
NVIDIA Jetson Nano
NXP i.MX95
TI Sitara™ AM68 / AM69
TI Jacinto™ TDA4VM / TDA4VH
|
|---|
| Operation Systems | Linux
Yocto
|
|---|
| SDK | VizionViewer™ / VizionSDK
|
|---|
|
| Environmental and Mechanical |
|---|

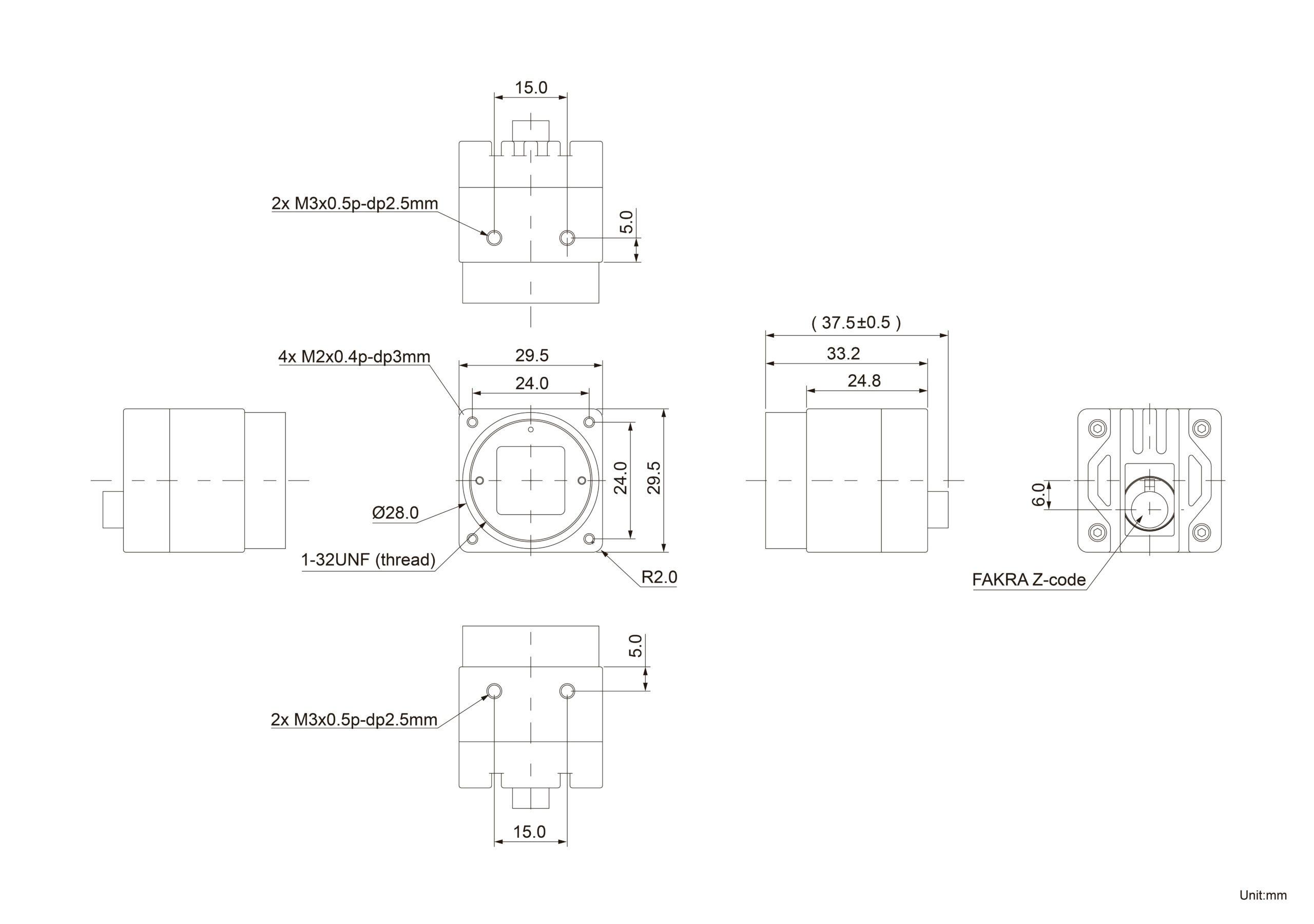

| Dimensions | 29.5(W) x 29.5(H) x 33.2(D) mm
|
|---|
| Weight | 40 grams
|
|---|
| MTBF | 50,000 Hours
|
|---|
| Shock | 15G half-sine 11 ms duration
|
|---|
| Vibration | 1 Grms random 5-500Hz hr/axis
|
|---|
| Relative Humidity | 10 to 90 %
|
|---|
| Operation Temperature | -30°C to +70℃
|
|---|
|
| Certification and Compliance |
|---|
| Certification | Compliant with CE / FCC / RoHS / REACH directives
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8525.89.5050
|
|---|
| ECCN | EAR99
|
|---|
| REACH / RoHS | Yes
|
|---|
|
