TEVS-AR0145

  • onsemi AR0145 1MP global shutter monochrome image sensor with ISP.
  • Captures high-speed dynamic targets clearly within an ultra-short exposure time.
  • Convenient S-Mount (M12) interchangeable lens.
  • Compatible with NXP i.MX95 / i.MX93 / i.MX8M Plus/Mini family and Nvidia Jetson Nano/ Xavier NX/ Orin NX.
  • Evaluation Kits Available

AMR Designers Favorite Sensor

Order this product
TEVS-AR0145 Medium FOV Front
TEVS-AR0145 Narrow FOV Right
TEVS-AR0145 Front

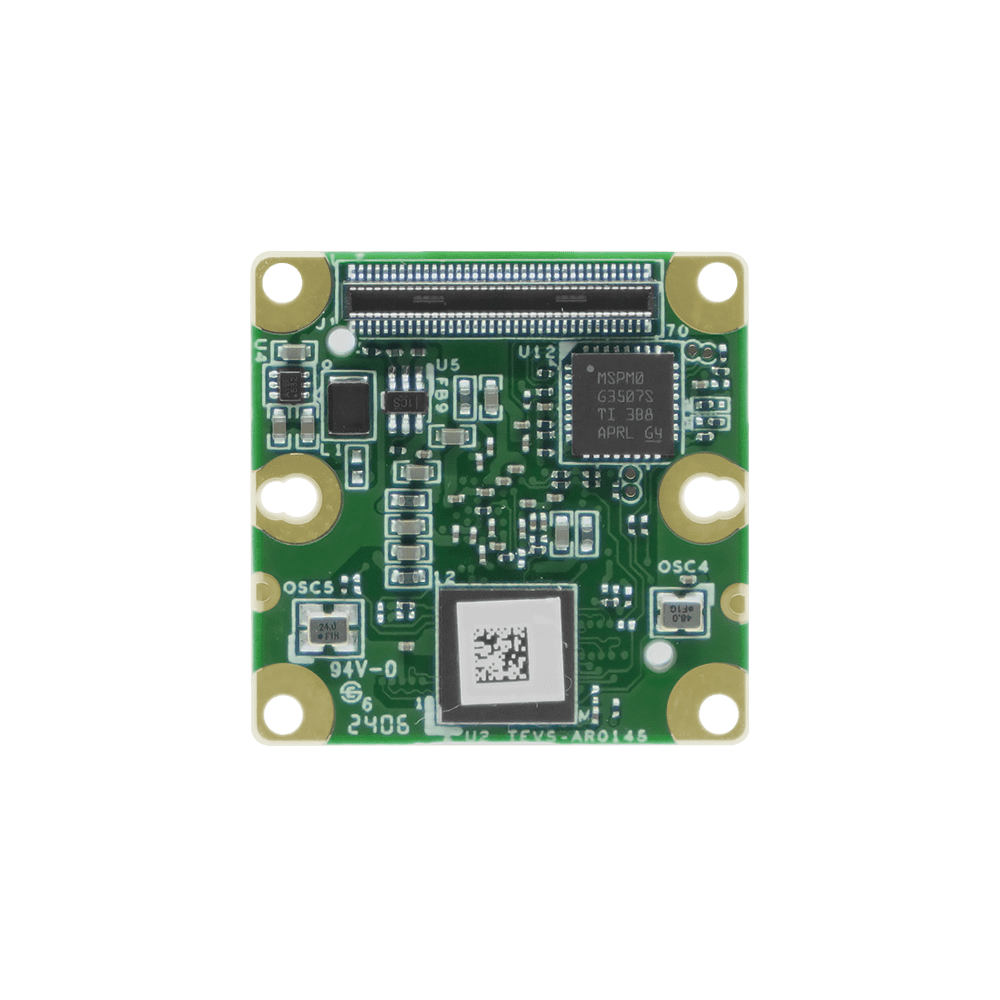

TEVS-AR0145 Back

TEVS-AR0145 Highlights

Evaluation Kits

No matter which SOC you choose from NXP / ST / NVidia. As soon as it has MIPI-CSI2. You know. You can connect our cameras to it.

Rugged and Reliable

Operates reliably in harsh industrial environments and conditions, such as strong vibrations, extreme temperatures and wet or dusty conditions.

Global Shutter

Captures high-speed dynamic images clearly within an ultra-short exposure time.

ISP

Color correction, Lens calibration, over-exposure management, and multiple functions are already taken care of with a built-in ISP.

Software Platform

Supports various platforms, programming languages and easy to build on VizionSDK and VizionViewer UI.

Time to Market

With our pre-calibrated lens and integrated software, the camera can work directly and accelerate your time-to-market.

Lens Adjustment

We provide lens calibration and correction adjustment.

MIPI Interface

Compatible with MIPI connector and easy to change among our camera modules to fit the project requirement.

Specifications

Camera Information
CMOS Sensor

onsemi AR0145

Active Pixels

1280 (H) x 800 (V) = 1MP

Pixel Size

2.8 μm x 2.8 μm

Optical Format

1/4.3” (Diagonal 4.23 mm)

Shutter Type

Global Shutter

Chromaticity

Mono

Illuminated type

Front Side Illuminated (FSI)

Maximum Frame Rate (UYVY)

1280 x 800 @ 115 fps
1280 x 720 @ 115 fps
640 x 480 @ 115 fps

Maximum S/N Ratio

38 dB

Input Clock Range

48 MHz

Output Format

UYVY

Interface
Module Data Transmission

MIPI CSI-2, up to 4 lanes

Communication Interface

I2C

Connector

70 Pin Standardized Connector

Power Specifications
Supply Voltage

Analog: 2.8V
I/O: 1.8V
Digital: 1.15V & 3.3V

Software Support
Platform Support

NXP i.MX8M Nano / Mini / Plus
NXP i.MX93 / i.MX95
TI Sitara™ AM62 / AM62A / AM67
TI Jacinto™ TDA4VM / AM68
TI Jacinto™ TDA4VH / AM69
NVIDIA Jetson Nano
NVIDIA Xavier NX
NVIDIA Orin Nano / NX
Intel Alder Lake-N
RENESAS RZ/V2H
ST STM32MP25
BeagleY®-AI / BeaglePlay®
Raspberry Pi 4 / Raspberry Pi 5

Operation Systems

Linux
Yocto
Android

SDK

VizionViewer™ / VizionSDK

Environmental and Mechanical
Dimensions

24.5(W) x 24.5(H) x 3.47(D) mm

Weight

≤ 3 grams

Operation Temperature

-30°C to +70℃

Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.80.5050

ECCN

EAR99

REACH / RoHS

Yes

Block Diagram

TEVS-AR0145 Block Diagram

Dimensions

Spectral Characteristics

AR0145 Spectral Characteristics

Switch Setting

Part Numbers

Order Information Example:

TEVS-AR0145-M-Sxx-xx-xxx

CodeDescription
ChromaticityMMono
Lens--
S31S-Mount Module D-FOV 31°
S78S-Mount Module D-FOV 78°
Filter--
IRIR Cut Filter 650nm
Evaluation Kit-70 pin Standardized Camera Connector
EVK70 pin Standardized Camera Connector with FPC cable
RPI1515 pin Standardized ZIF Connector with FFC cable
RPI2222 pin Standardized ZIF Connector with FFC cable
NXPMini-SAS connection cable for NXP Evaluation Board
Standard Parts
TEVS-AR0145 Front

TEVS-AR0145-M

MIPI-CSI2 Sensor onsemi AR0145 1MP Mono Global Shutter with ISP

TEVS-AR0145 Narrow FOV Right

TEVS-AR0145-M-S31-IR

MIPI-CSI2 Sensor onsemi AR0145 1MP Mono Global Shutter with ISP + 31 Degree M12 Lens with IR-Cut Filter

TEVS-AR0145 Medium FOV Front

TEVS-AR0145-M-S78-IR

MIPI-CSI2 Sensor onsemi AR0145 1MP Mono Global Shutter with ISP + 78 Degree M12 Lens with IR-Cut Filter
