TEK6100-ORIN-NX

  • Nvidia Jetson Orin NX
  • 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
  • 100 TOPS AI Performance
  • Gigabit Ethernet and USB 3
  • UART, CAN, GPIO I/O
  • 8 FPD-Link III Camera supported
  • Comes with Nvidia Jetpack Software pre-installed
  • VizionViewer SDK for easy camera control

Order this product

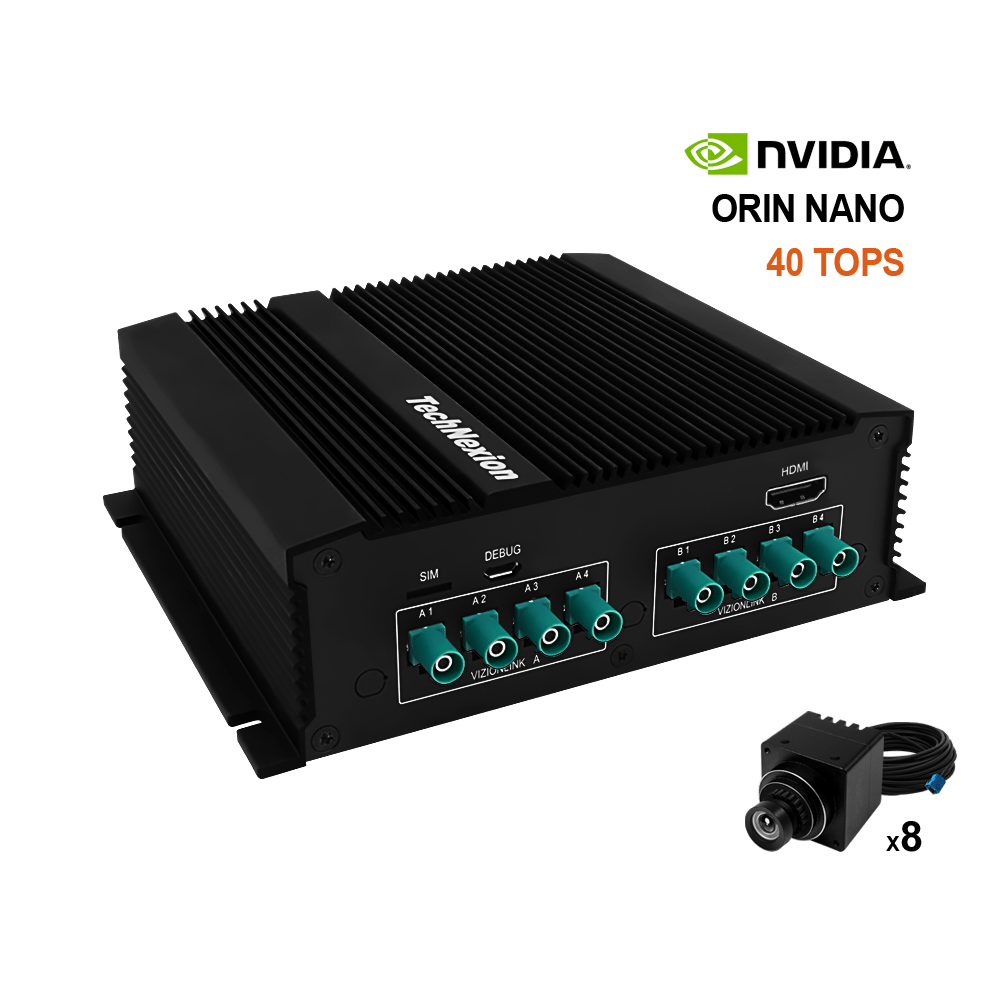

TEK6100-ORIN-NX Right top

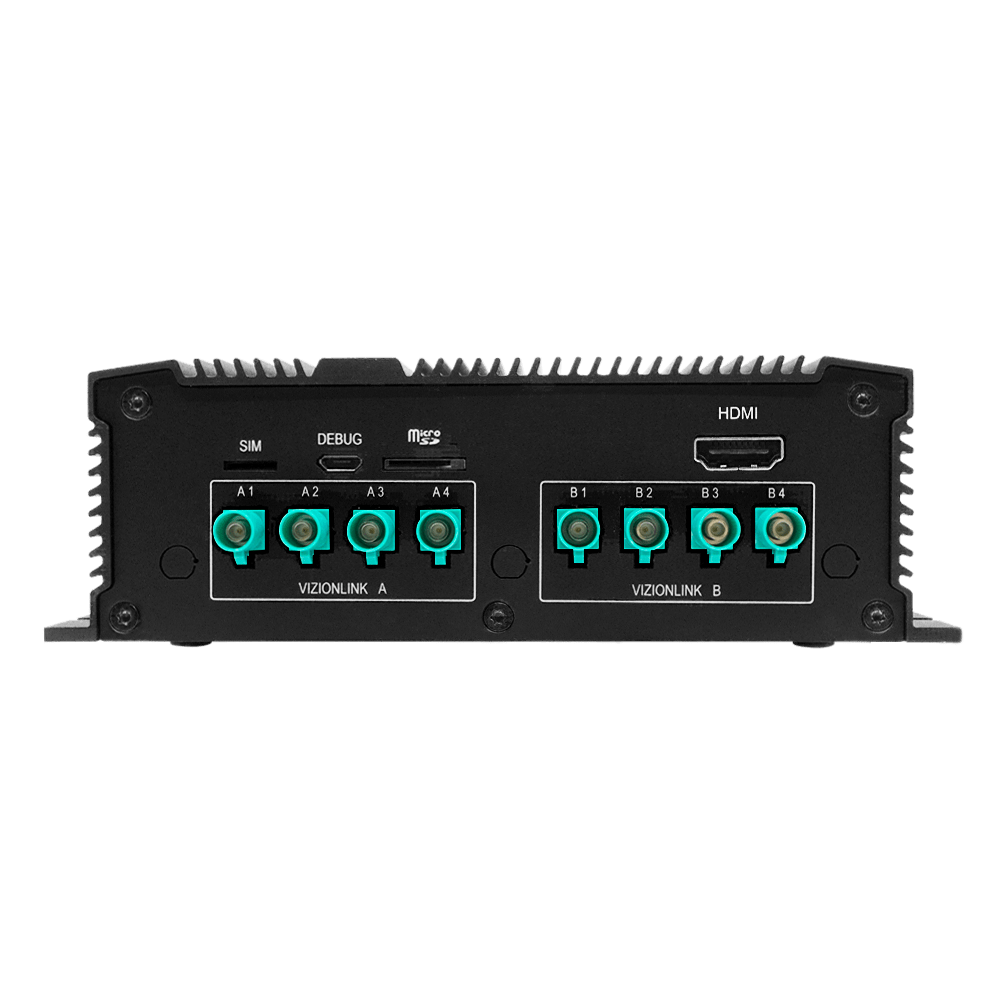

TEK6100-ORIN-NX Front

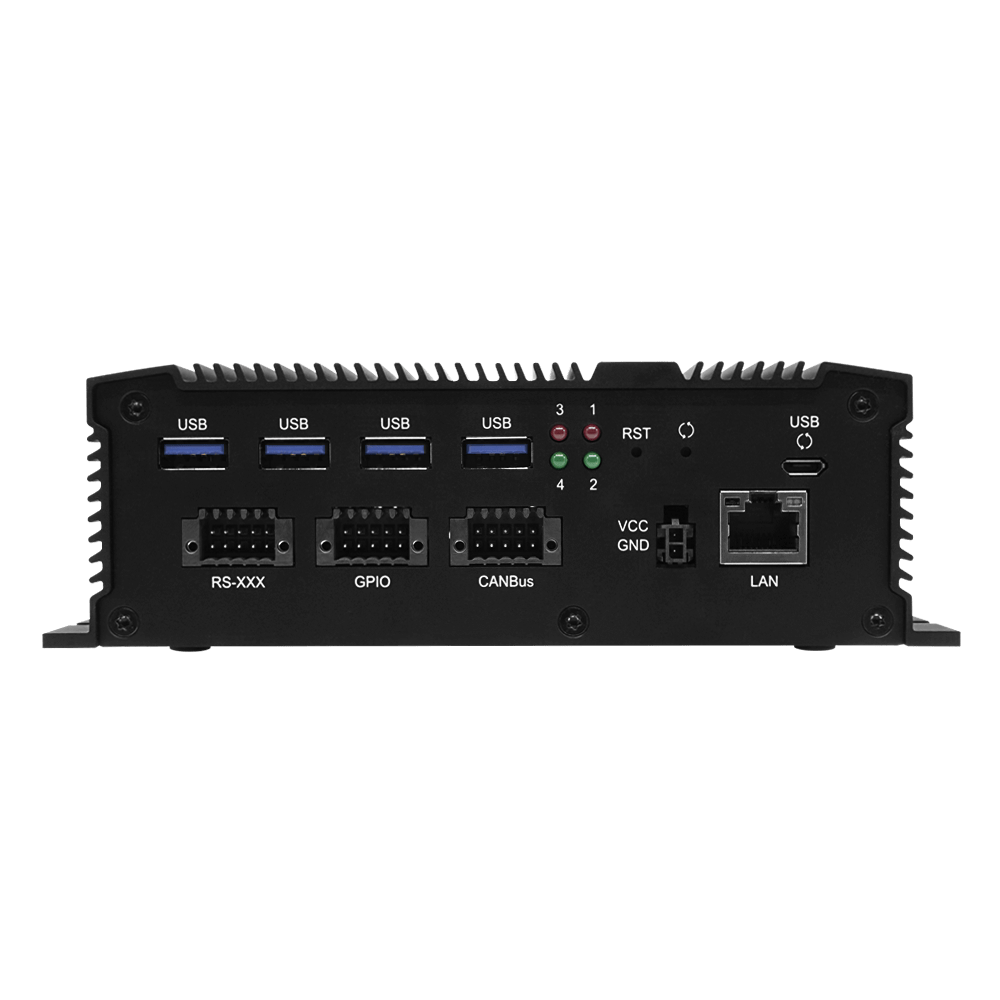

TEK6100-ORIN-NX Back

TEK6100-ORIN-NX Highlights

Nvidia Jetson Orin NX

AI Ready

Fanless

I/O

M.2

Wide Input Voltage

Ubuntu LTS and Nvidia JetPack

Specifications

Core System
Processor

NVIDIA® Jetson Orin™ NX

Architecture

8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

AI / ML

100 TOPS

Memory

16GB 128-bit LPDDR5 102.4 GB/s

Storage

NVMe via M.2 Key M 2242 or M 2280

System on Module

Jetson Orin NX 16GB

Video
GPU Engine

1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

Video decode

18x 1080p30 (H.265)
1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)

Video encode

12x 1080p30 (H.265)
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)

Environmental and Mechanical
Enclosure Material

Anodized Aluminium

Dimensions

168 (W) x 150 (D) x 55 (H) mm

Weight

960 grams

Relative Humidity

10 to 90 %

Shock

30G half-sine 11 ms duration

Operation Temperature

Industrial: -20°C to +50°C

Vibration

3 Grms random 5-500Hz hr/axis

Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives

More
Weight

960 g

Block Diagram

TEK6100-ORIN-NX Block Diagram

Dimension

TEK6100-ORIN-NX Dimension
