STIX-9377-MPCIE

  • Delivers all IoT multi-mode wireless communication needs in one compact and secure mini-PCIe module.
  • Qualcomm QCA-9377 802.11ac + Bluetooth Combo Module.
  • Offers the latest and most stringent security and robust radio performance for noisy industrial environments.
  • Pre-certified FCC/CE/IC/RCM/TELEC.

Order this product
STIX-9377-MPCIE TOP

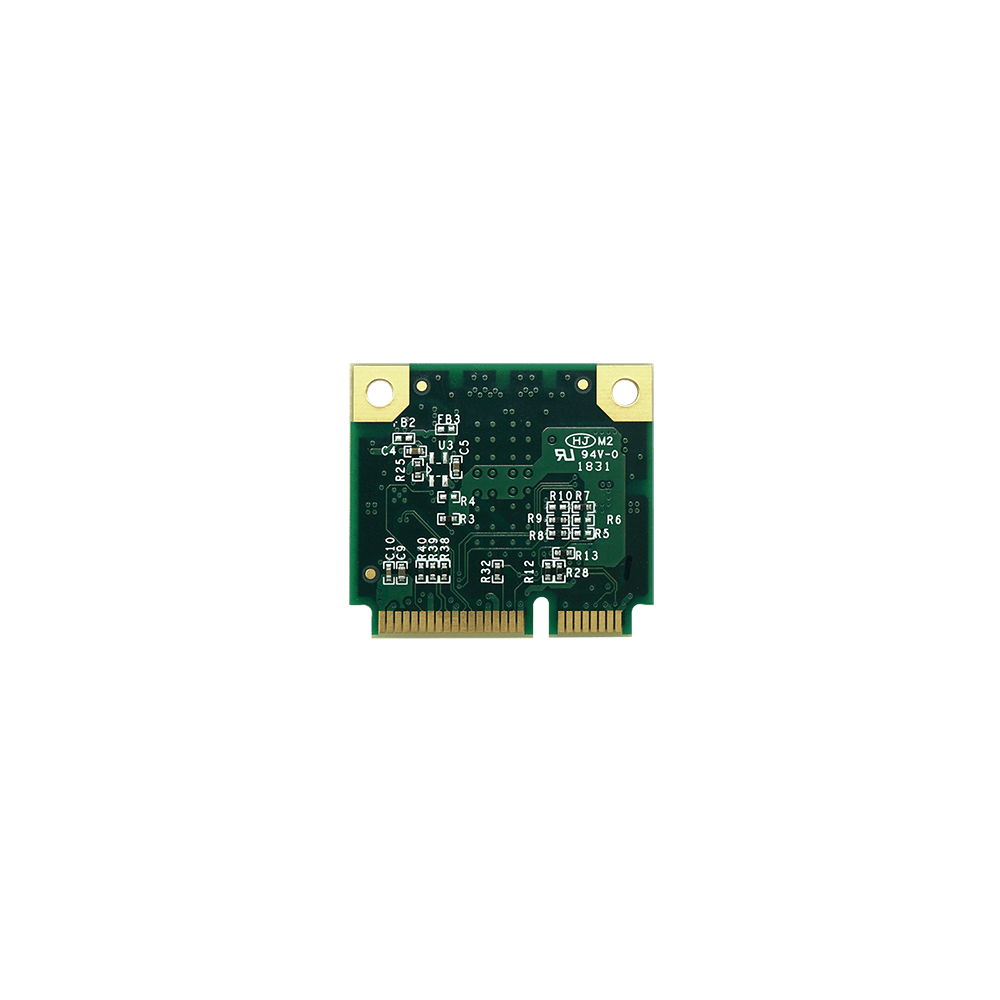

STIX-9377-MPCIE BACK

STIX-9377-MPCIE Highlights

Certified Connectivity

Simplify your design with pre-certified wireless options - from the module to the antennas - and make end-device certification processes more predictable while cutting costs.

Rugged and Reliable

Our Wi-Fi / Bluetooth modules are available in industrial grade configurations to withstand the worst environmental challenges.

Software Platform

Supports Windows, Linux and Android operating system.

Specifications

Connectivity
Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector

Power Specifications
Power Input

3.3V DC +/-10%

Power Consumption

Depending on Configuration

Environmental and Mechanical
Dimensions

30 x 26.8 mm

Weight

≤ 3 grams

Form Factor

mini-PCIe Half Size

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0°C to +60°C

Vibration

1 Grms random 5-500Hz hr/axis

Certification and Compliance
USA

FCC ID: 2AKZA-QCA9377

Canada

IC: 22364-QCA9377

European Union

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

Japan

TELEC: 201-180629

Australia / New Zealand

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)
QDID 193238 (Bluetooth 5)

Block Diagram

STIX-9377-MPCIE Block Diagram

Dimensions

STIX-9377-M2-MPCIE Dimensions
