TechNexion

PIXI-9377-S

  • Qualcomm QCA-9377 802.11ac + Bluetooth Combo Module
  • Pre-certified FCC/CE/IC/RCM/TELEC
  • Linux, Android Integration support for NXP i.MX Platform
  • SDIO + UART Interface
  • M.2 1216 Formfactor

Order this product

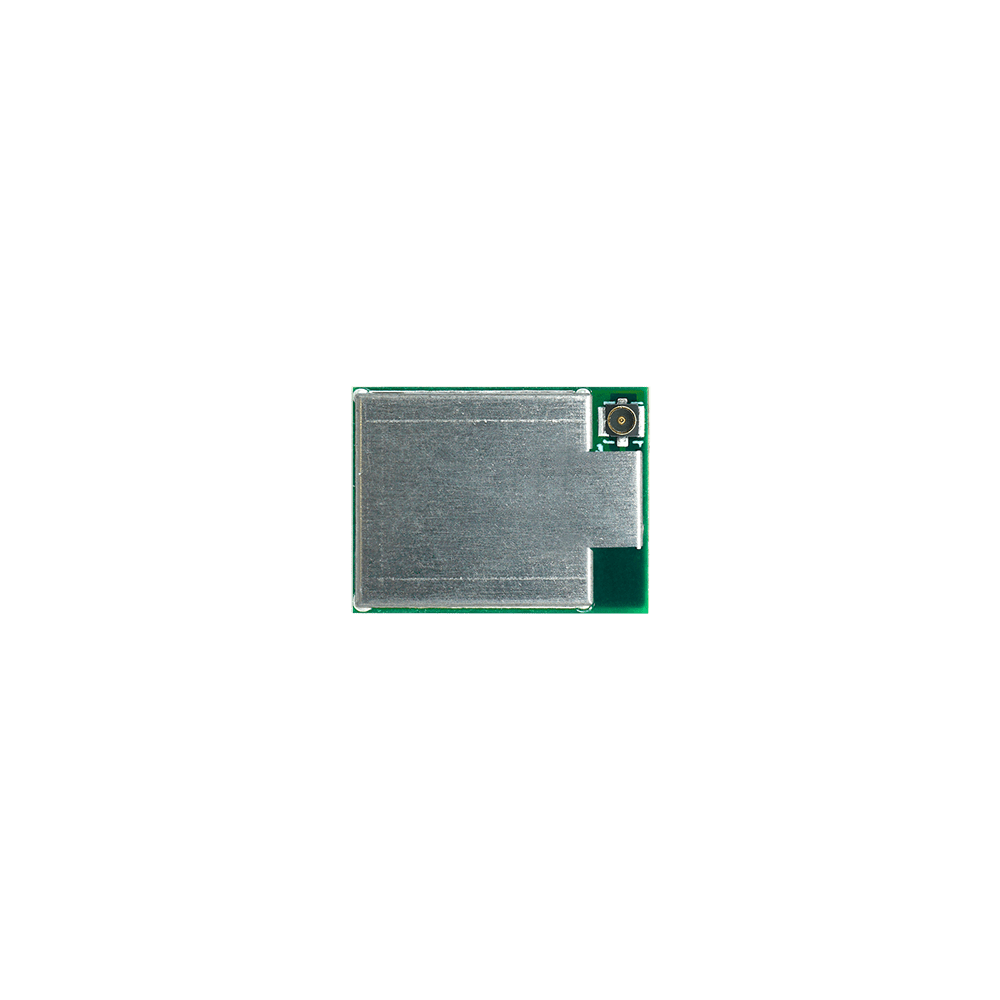

PIXI-9377-S TOP

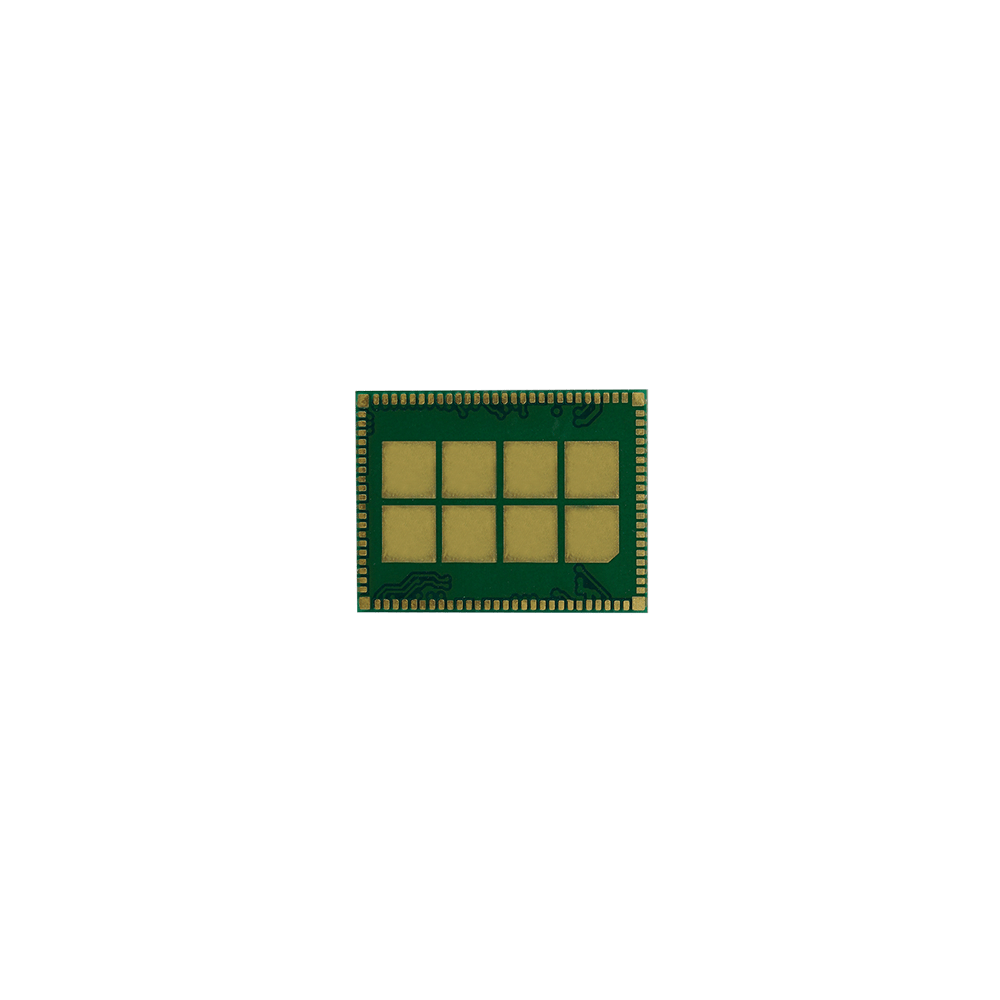

PIXI-9377-S BACK

Highlights

Software

Integration guides and software examples available for NXP i.MX 6 / i.MX7 / i.MX8 series

Certified Connectivity

Simplify your design with pre-certified wireless options — from the module to the antennas — to make end-device certification processes more predictable while cutting costs.

Rugged and Reliable

Our Wi-Fi / Bluetooth modules are available in industrial grade configurations to withstand the worst environmental challenges your embedded product might face.

Evaluation Kits

Get started today with TechNexion Evaluation Kits

Connectivity
Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector

Power Specifications
Power Input

3.3V DC

Power Consumption

Depending on Configuration

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with CE / FCC / RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)

Environmental and Mechanical
Dimensions

12 x 16 mm

Form Factor

M.2 LGA Type 1216

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Industrial: -40° to +85° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

≤ 2 grams

PIXI-9377-S Block Diagram

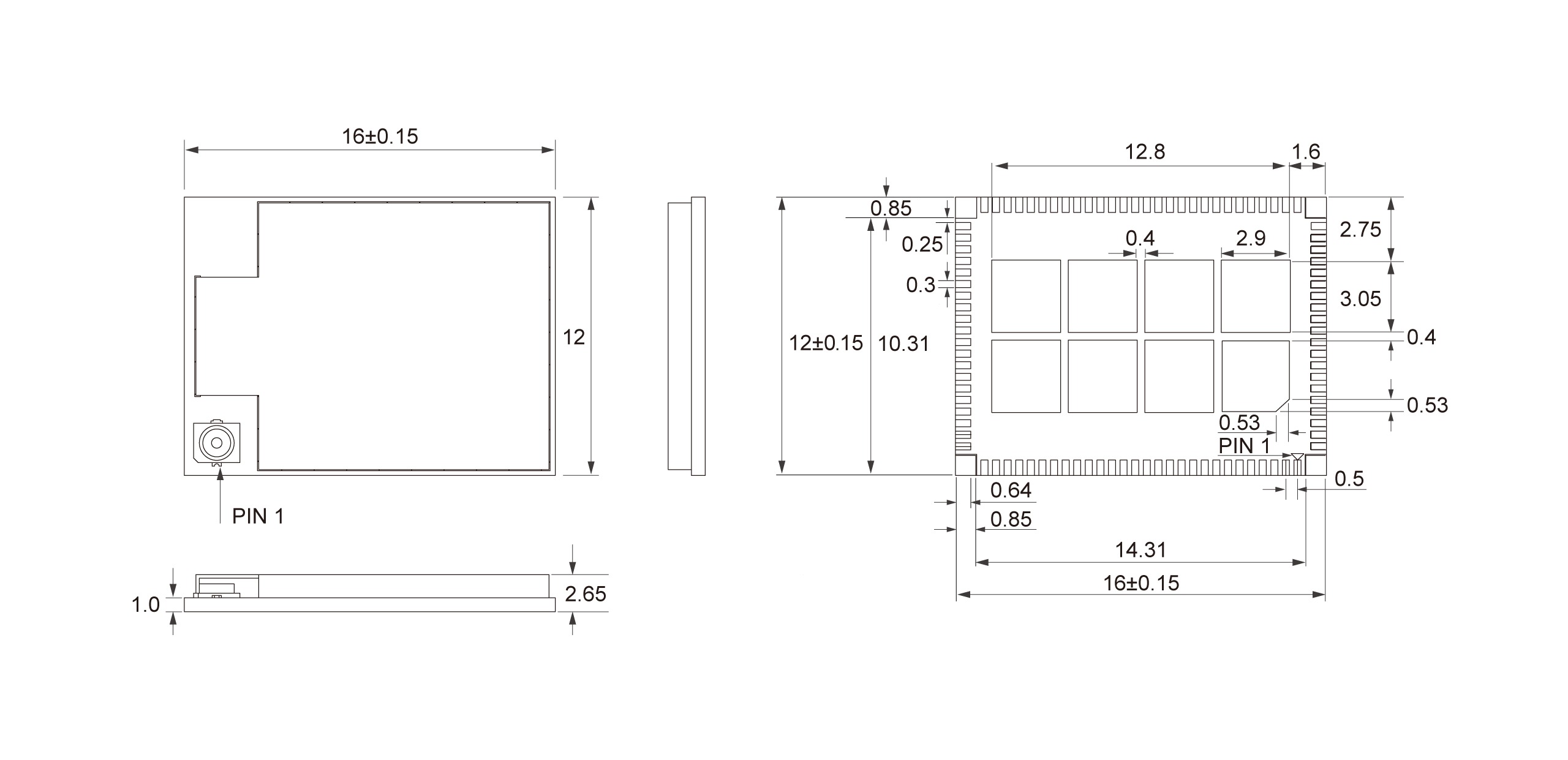

PIXI-9377-S Dimensions

PIXI-9377-EVK

Get started today with the evaluation kit to integrate PIXI-9377 into your embedded design.
