PIXI-9377-EVK

Order this product

Product Brief

PIXI Family Page

PIXI-9377-EVK TOP

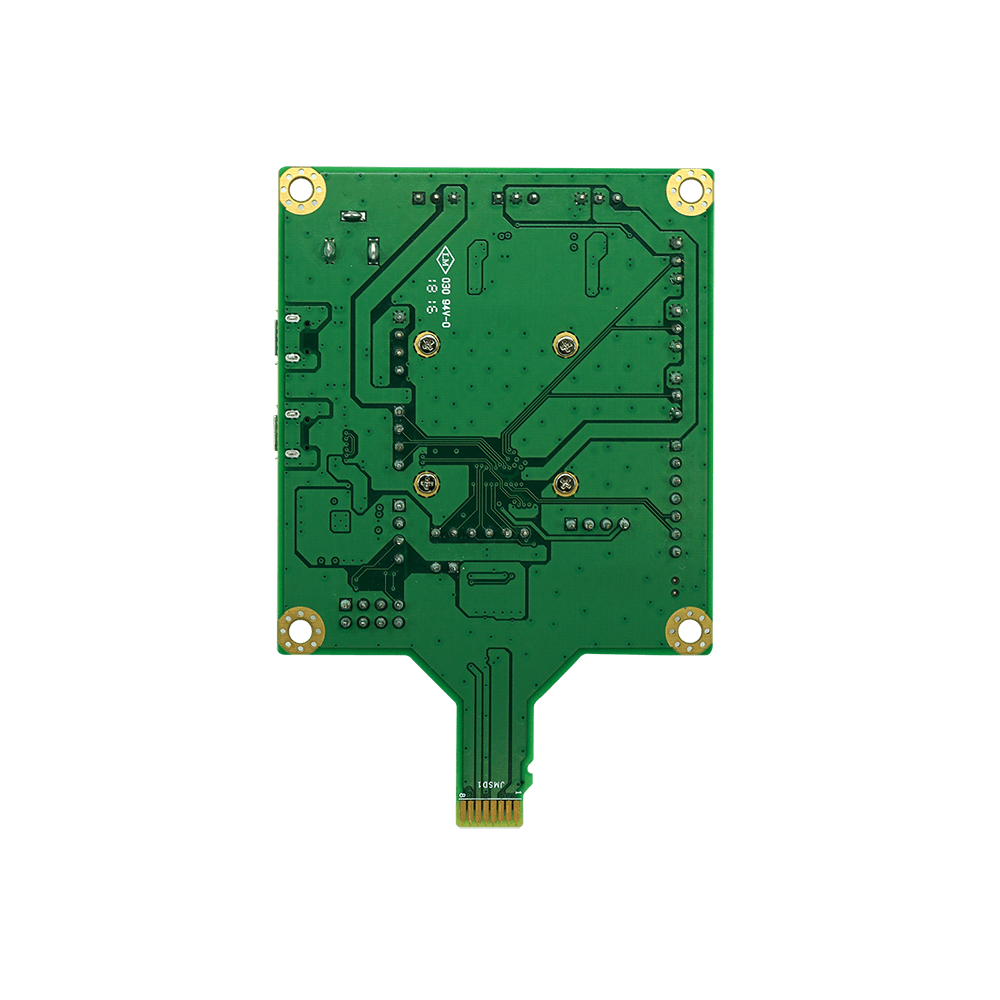

PIXI-9377-EVK BACK

Highlights

Connectivity

Wi-Fi	Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac
Bluetooth	Qualcomm Atheros QCA9377 Bluetooth
Antenna	MHF4 connector

Signaling

I/O	I²S SDIO UART

Power Specifications

Power Input	3.3V DC
Power Consumption	Depending on Configuration

Certification and Compliance

FCC	FCC ID: 2AKZA-QCA9377
IC	IC: 22364-QCA9377
CE	EN 300 328 v2.2.2 EN 301 893 v2.1.1 EN 55032 / EN 55024
TELEC (Japan)	TELEC: 201-180629
RCM (Australia/New Zealand)	RCM Compliant
Certification	Compliant with CE / FCC / RoHS / REACH directives
Bluetooth Logo	QDID 150839 (Bluetooth 4.2)

PIXI-9377-EVK Block Diagram

PIXI-9377-EVK Dimensions

PIXI-9377 Evaluation Kit

In the evaluation Kit you find all the components and connecting cables you need to fully evaluate the PIXI-9377

Documentation

Getting Started

Product Brief

Product Datasheet

Mechanical

DXF File

STP 3D File

Certification

Declaration of Conformity

RoHS / REACH

Conflict Minerals
