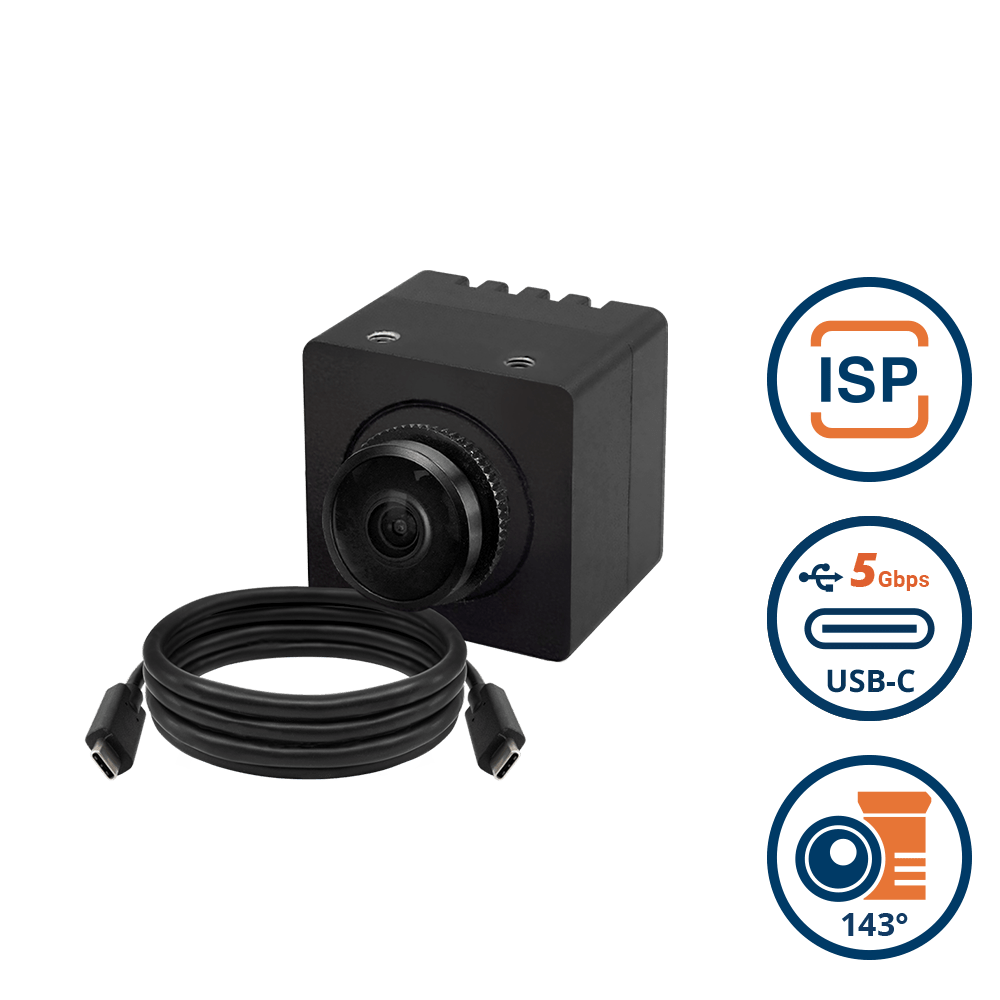

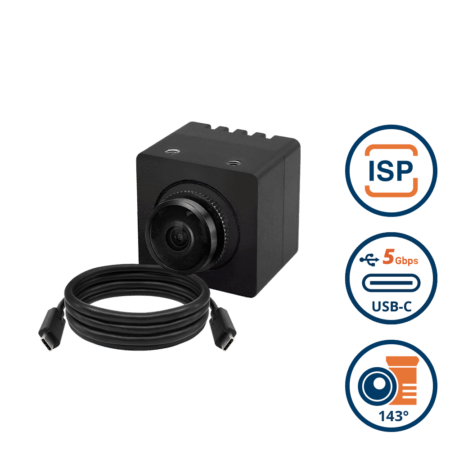

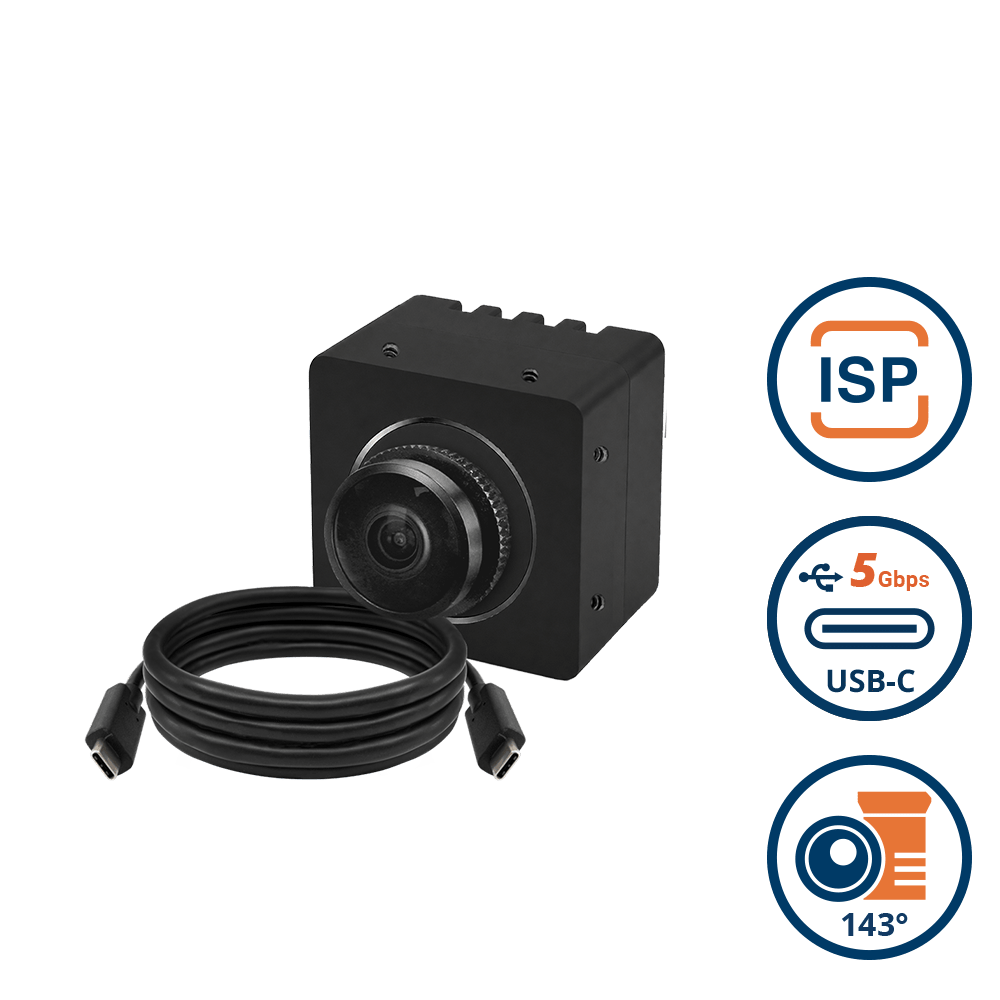

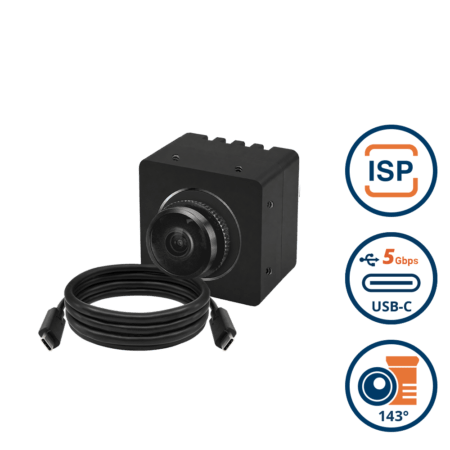

VCS-AR0246-SL Wide FOV Kit

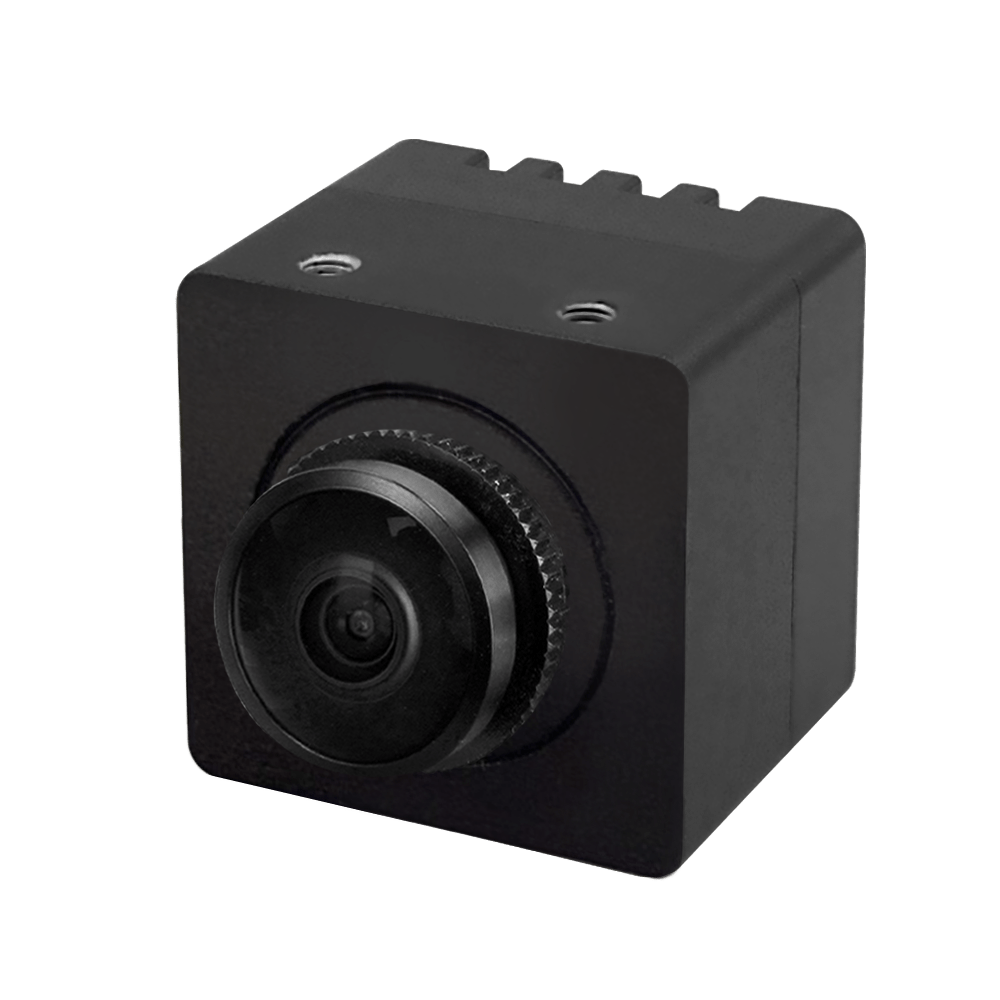

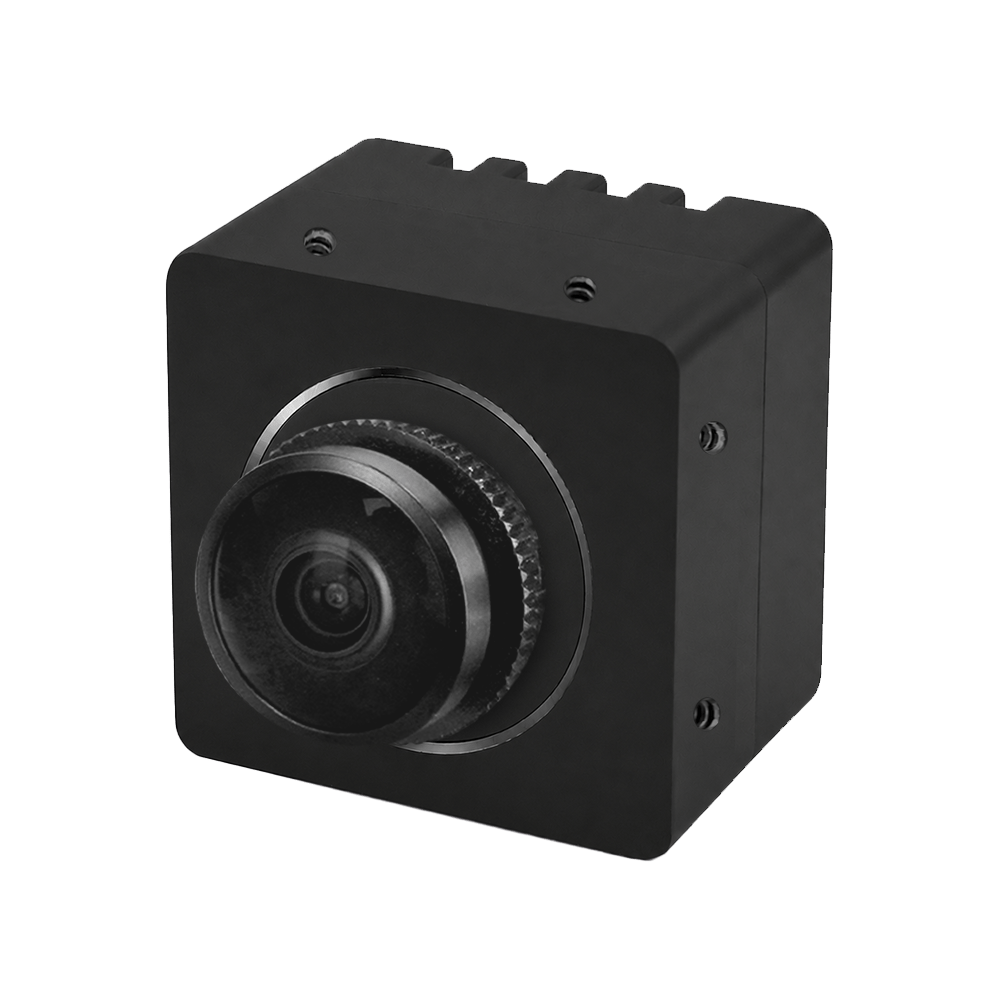

VCS-AR0246-SL Wide FOV
VCS-AR0246 Back

VCS-AR0246-C-S143-IR

SKU: VCSAR0246CS143IR Category: Brand:

USB3 Type-C Enclosed Camera with onsemi AR0246 2MP Full-HD Color Rolling Shutter with onboard ISP + 143 Degree M12 Lens with IR-Cut Filter + Incl. 1 Meter USB C Cable

More Information
Product Brief

$198.50

Quantity Discount (%) Price
1 - 50 — $198.50
51 - 199 7.48 % $183.65
200 - 499 13.38 % $171.95
500+ 19.47 % $159.85

Available on backorder

x

Specifications

Additional information

Camera Information
CMOS Sensor

onsemi AR0246

Active Pixels

1920 (H) x 1080 (V) = 2MP

Pixel Size

2.0 μm x 2.0 μm

Illuminated type

Front Side Illuminated (FSI)

Maximum S/N Ratio

39 dB

Optical Format

1/4” (Diagonal 4.41 mm)

Shutter Type

Rolling Shutter

Chromaticity

Color

Maximum Frame Rate (YUV422-UYVY)

1920 x 1080 @ 30 fps
1280 x 720 @ 30 fps
640 x 480 @ 30 fps

Maximum Frame Rate (MJPEG)

1280 x 720 @ 30 fps
1920 x 1080 @ 30 fps
640 x 480 @ 30 fps

Output Format

UYVY
MJPEG(JPG)

HDR Support

Yes
Interface
Connector

USB Type-C 5 Gbps
Power Specifications
Supply Voltage

5V ± 5%

Power Consumption

UYVY 1920 x 1080 @ 30 fps ≤ 1.2W

Standby Power

≤ 0.1W Standby
Software Support
Operation Systems

UVC Plug-and-play
Windows 10/11
Linux
Yocto

SDK

VizionViewer™ / VizionSDK
Lens Information
Focus Type

Fixed Focus

Focal Length

1.8 mm

Aperture

F2.3

Module D-FOV

143° ± 5%

Module H-FOV

114° ± 5%

Module V-FOV

80° ± 5%

TTL

15.9 mm

BFL

4.0 mm

MOD

0.2 m

Distortion

< – 98°

IR-Filter

650 nm
Environmental and Mechanical
Dimensions

29.5(W) x 29.5(H) x 28.5(D) mm

Weight

44 grams

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Vibration

1 Grms random 5-500Hz hr/axis

Relative Humidity

10 to 90 %

Operation Temperature

-30°C to +70℃
Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.89.5050

ECCN

EAR99

REACH / RoHS

Yes

Block Diagram

VCS-AR0246-SL Block Diagram

Dimensions

VCS-AR0246-SL Dimensions

Spectral Characteristics

AR0246 Spectral Characteristics
