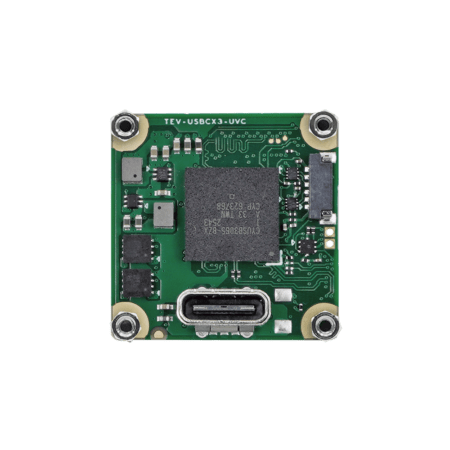

UVCS-AR1335-SL Back

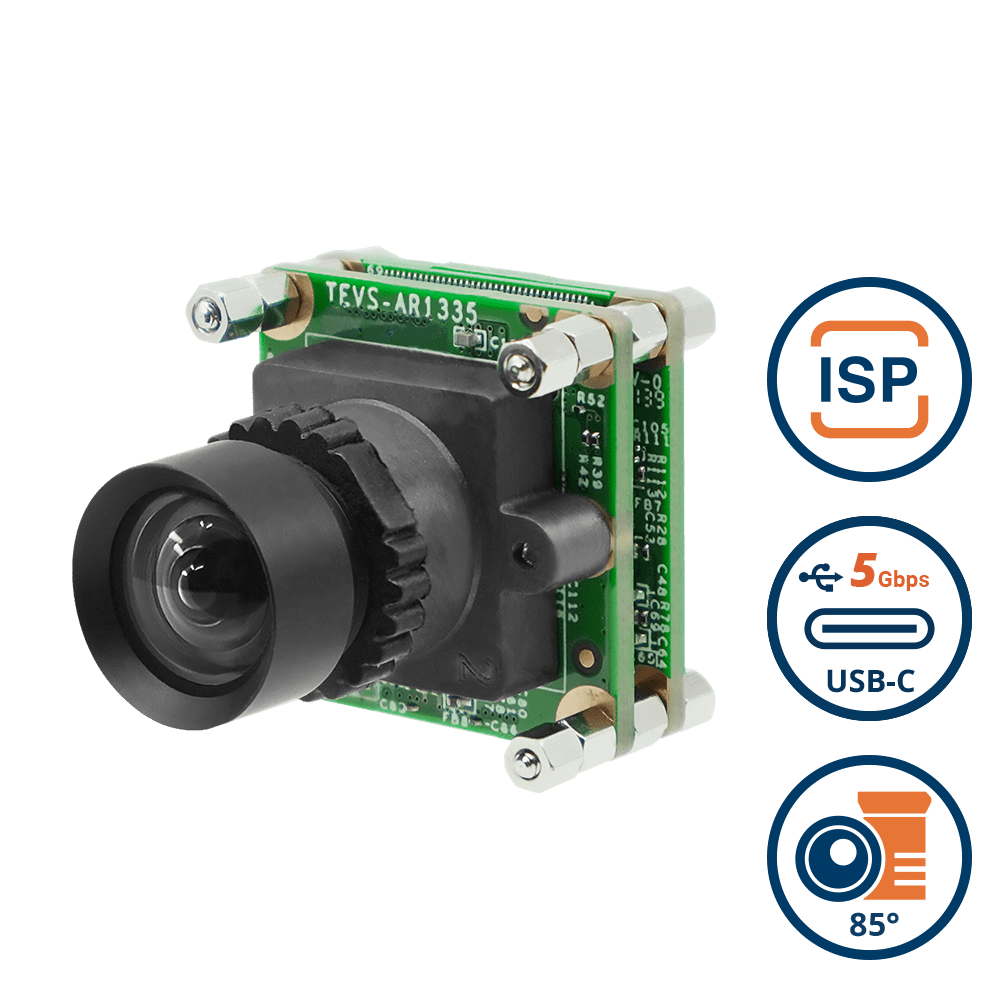

UVCS-AR1335-C-S85-IR

SKU: UVCSAR1335CS85IR Category: VCS USB3 Series Brand: TechNexion

USB3 Type-C PCB Board Level Camera with onsemi AR1335 13MP Color Rolling Shutter with Onboard ISP + 85 Degree M12 Lens with IR-Cut Filter

More Information

Product Brief

Quantity	Discount (%)	Price
1 - 50	—	$176.00
51 - 199	7.73 %	$162.40
200 - 499	13.64 %	$152.00
500+	19.55 %	$141.60

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR1335
Active Pixels	4208 (H) x 3120 (V) = 13MP
Pixel Size	1.1 μm x 1.1 μm
Illuminated type	Back Side Illuminated (BSI)
Maximum S/N Ratio	37 dB
Optical Format	1/3.2” (Diagonal 5.8 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	4208 x 3120 @ 10 fps 3840 x 2160 @ 15 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 120 fps 640 x 480 @ 60 fps
Maximum Frame Rate (MJPEG)	4208 x 3120 @ 30 fps 3840 x 2160 @ 30 fps 2560 x 1440 @ 60 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 120 fps 640 x 480 @ 60 fps
Output Format	UYVY MJPEG(JPG)

Interface

Connector	USB Type-C 5 Gbps

Power Specifications

Supply Voltage	5V ± 5%
Power Consumption	UYVY 4200 x 3120 @ 12 fps ≤ 1.4W
Standby Power	≤ 0.3W Standby

Software Support

Operation Systems	UVC Plug-and-play Windows 10/11 Linux Yocto
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	3.2 mm
Aperture	F2.4
Module D-FOV	84.6° ± 5%
Module H-FOV	70.3° ± 5%
Module V-FOV	55.2° ± 5%
TTL	22 mm
BFL	3.4 mm
MOD	0.3 m
Distortion	< 1.6%
IR-Filter	650 nm

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 25.6(D) mm
Weight	18 grams
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Vibration	1 Grms random 5-500Hz hr/axis
Relative Humidity	10 to 90 %
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.89.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

UVCS-AR1335-SL Block Diagram

Spectral Characteristics

AR1335 Spectral Characteristics
