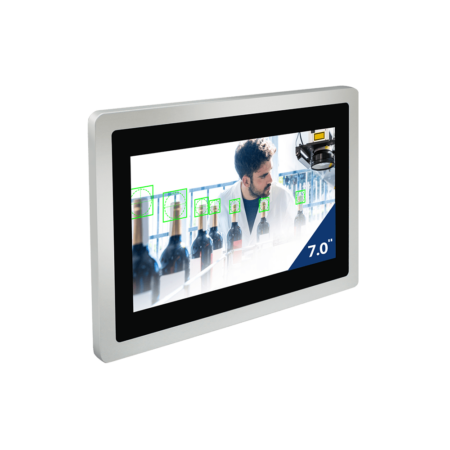

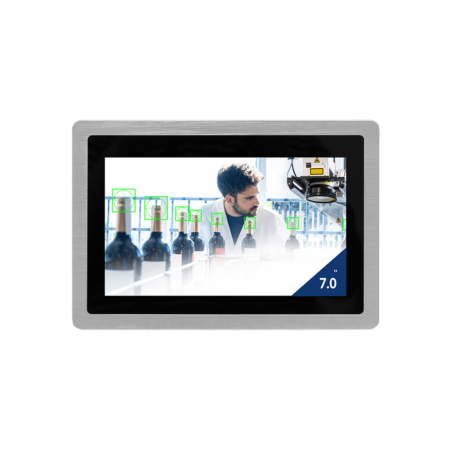

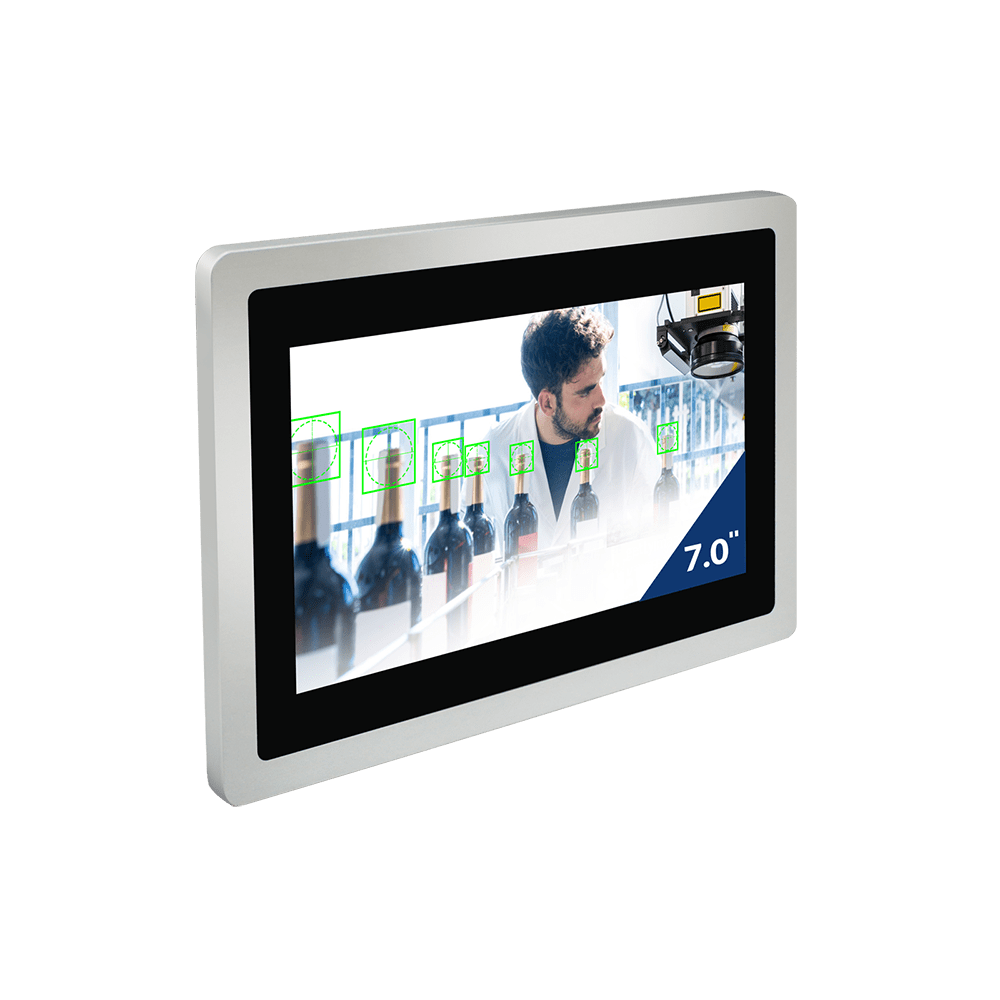

TEP-0700-IMX7

  • The TEP-0700-IMX7 is a low-power consumption HMI based on an NXP i.MX7 Dual core Cortex-A7™ + M4™ processor.
  • The TEP-0700-IMX7 features a 7-inch widescreen ratio multitouch PCAP touch screen with LED backlight and brushed aluminum front bezel.
  • Edge-computing ready with internal mini-PCIe expansion + SIM card slot for LTE/5G cloud connectivity.
  • 2 RS-232, 2 CAN, 8 GPIO, 2 Gigabit Ethernet and USB interfaces.
  • Orderable with single voltage 12VDC, wide voltage 9 – 36VDC or 802.3.at PoE (power over ethernet) options.
  • The TEP-0700-IMX7 is a low-power consumption HMI based on an NXP i.MX7 Dual core Cortex-A7™ + M4™ processor.
  • The TEP-0700-IMX7 features a 7-inch widescreen ratio multitouch PCAP touch screen with LED backlight and brushed aluminum front bezel.
  • Edge-computing ready with internal mini-PCIe expansion + SIM card slot for LTE/5G cloud connectivity.
  • 2 RS-232, 2 CAN, 8 GPIO, 2 Gigabit Ethernet and USB interfaces.
  • Orderable with single voltage 12VDC, wide voltage 9 – 36VDC or 802.3.at PoE (power over ethernet) options.

Additional information

Core System
Processor

NXP i.MX7 Dual

Processor Speed

1.0 Ghz

Architecture

ARM Cortex-A7 + M4

PMIC

NXP PF3000

Memory

Upto 2GB DDR3L

Storage

4GB eMMC

Connectivity
Network LAN

2x Atheros AR8035 Gigabit LAN

Power over Ethernet

PoE function 802.3at (optional)

Power Specifications
Power Input

12 VDC
9-36V DC (wide power input)

Power Consumption

Depending on Configuration

Power Connector

2-pin Micro-Fit 3.0

Operating Systems
Standard Support

Linux
Yocto
Android
Ubuntu

Extended Support

Commercial Linux

Environmental and Mechanical
Enclosure Material

Metal

Frontbezel

Brushed Anodized Aluminium

IP Rating

IP65 Front

Dimensions

198 (W) x 136 (H) x 52 (D) mm

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +50° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

945 grams

Mounting Options
VESA Mounting

35*75 VESA MIS C. Standard (separate purchase)

Surface Mounting

8 mounting holes

Modular Expansion Options
Power Expansion Module

TXB-P1-1030V-LAN1 (8-36V 5A)
TXB-P1-12V-LAN1 (12V 3A)
TXB-P1-12V-POE1 (12V 3A) or (PoE 802.3at)

Display
LCD

7 inch widescreen LCD with LED Backlight

Resolution

800 x 480 pixels

Luminance

350 cd/m²

Maximum Colors

16.7 million

Touchscreen

Projective Capacitive (multitouch)

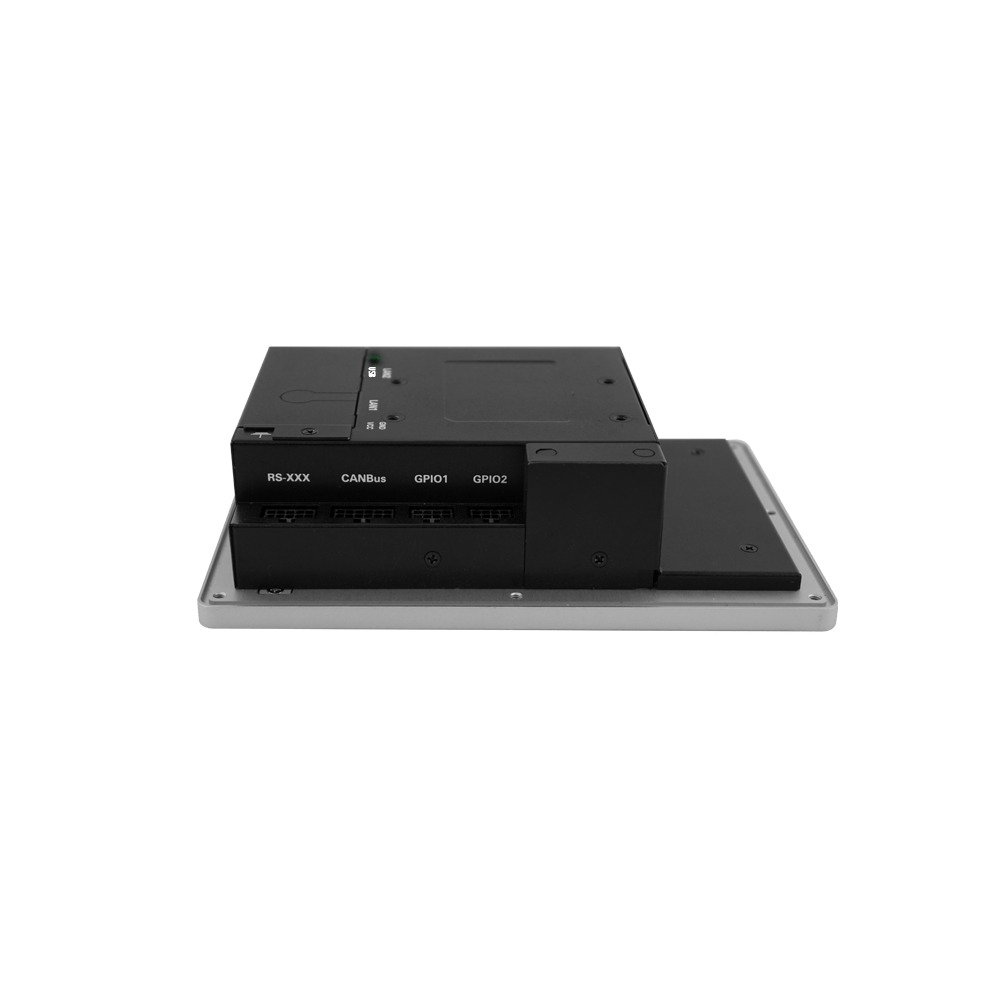

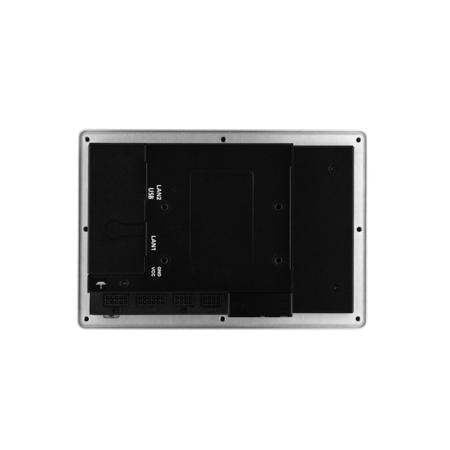

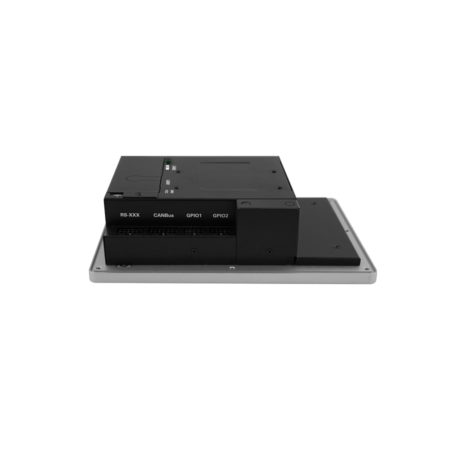

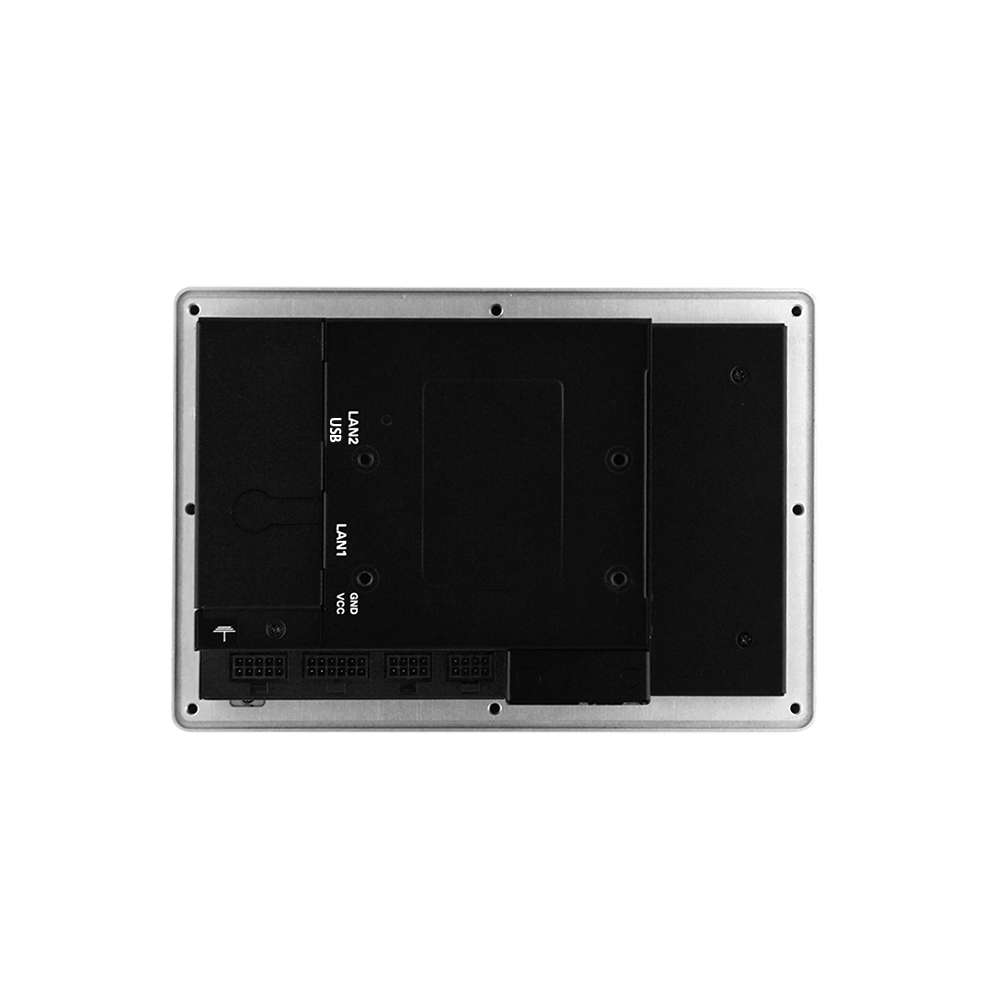

External Connectors
Network

2x RJ45

USB

1x USB 2.0 Host
1x USB 2.0 OTG (Type-C)

CAN BUS

2x Flex CAN version 2.0B compliant

Serial Port

2x RS-232

GPIO

8x GPIO

Buttons

1x Boot Select
1x Reset

Indicators

1x Programmable LED

SIM Cardslot

1x Nano-SIM cardslot

SD Cardslot

1x MicroSD Card Slot

Expansion Interfaces
Expansion Slots

1x M.2 Slot with SIM Cardslot

Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives

TEP-0700-IMX7 Block Diagram

TEP-0700-IMX7 Dimensions
