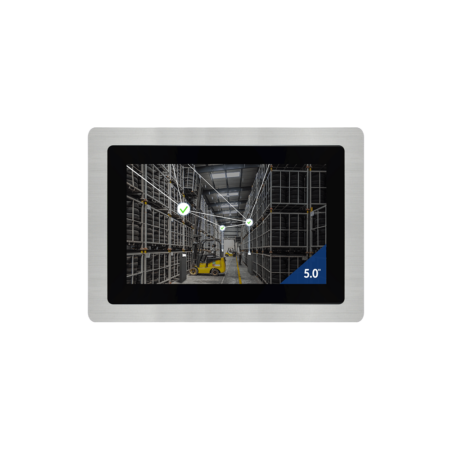

TEP-0500-IMX7 FRONT

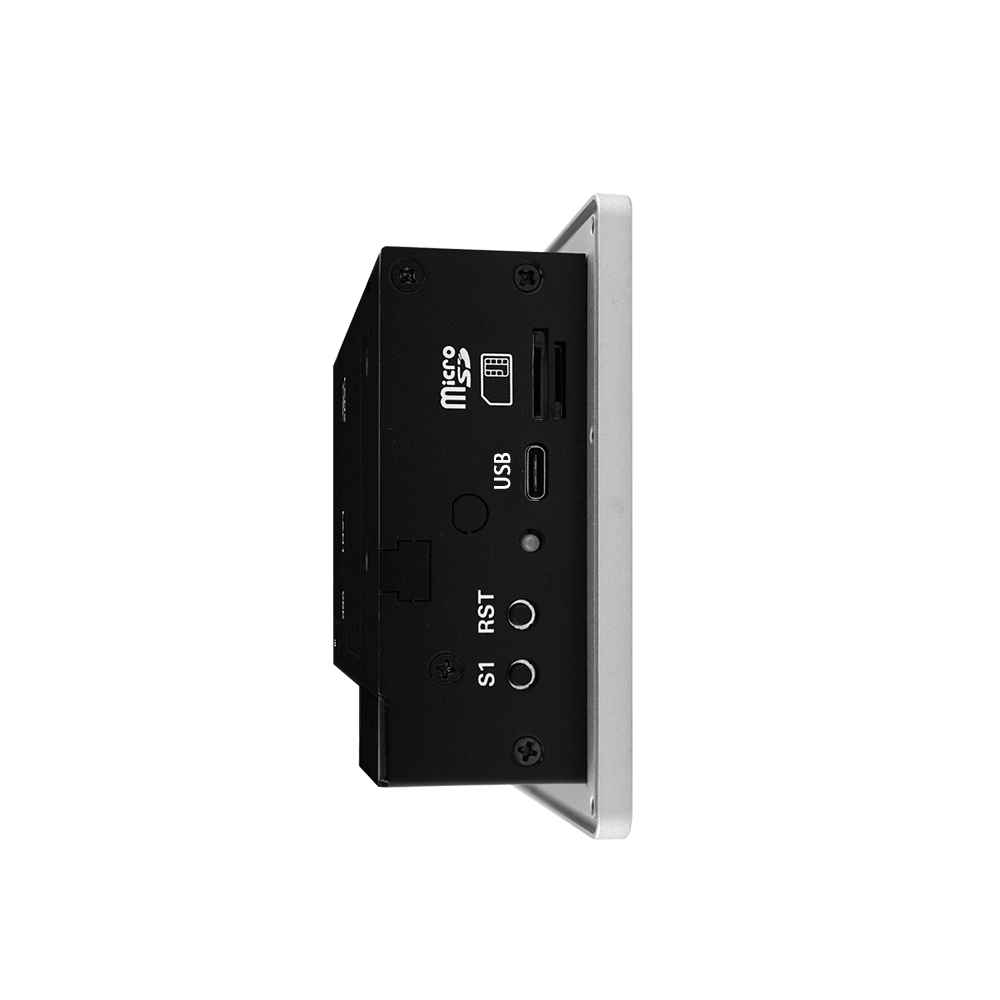

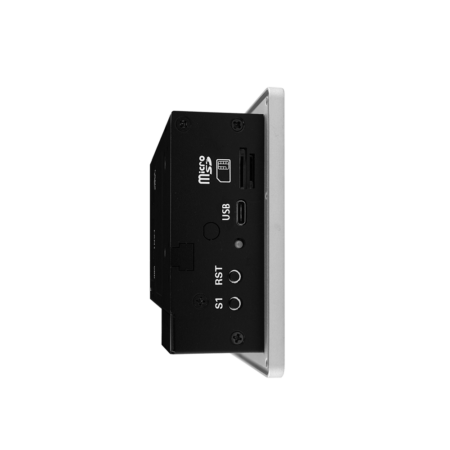

TEP-0500-IMX7 LEFT SIDE

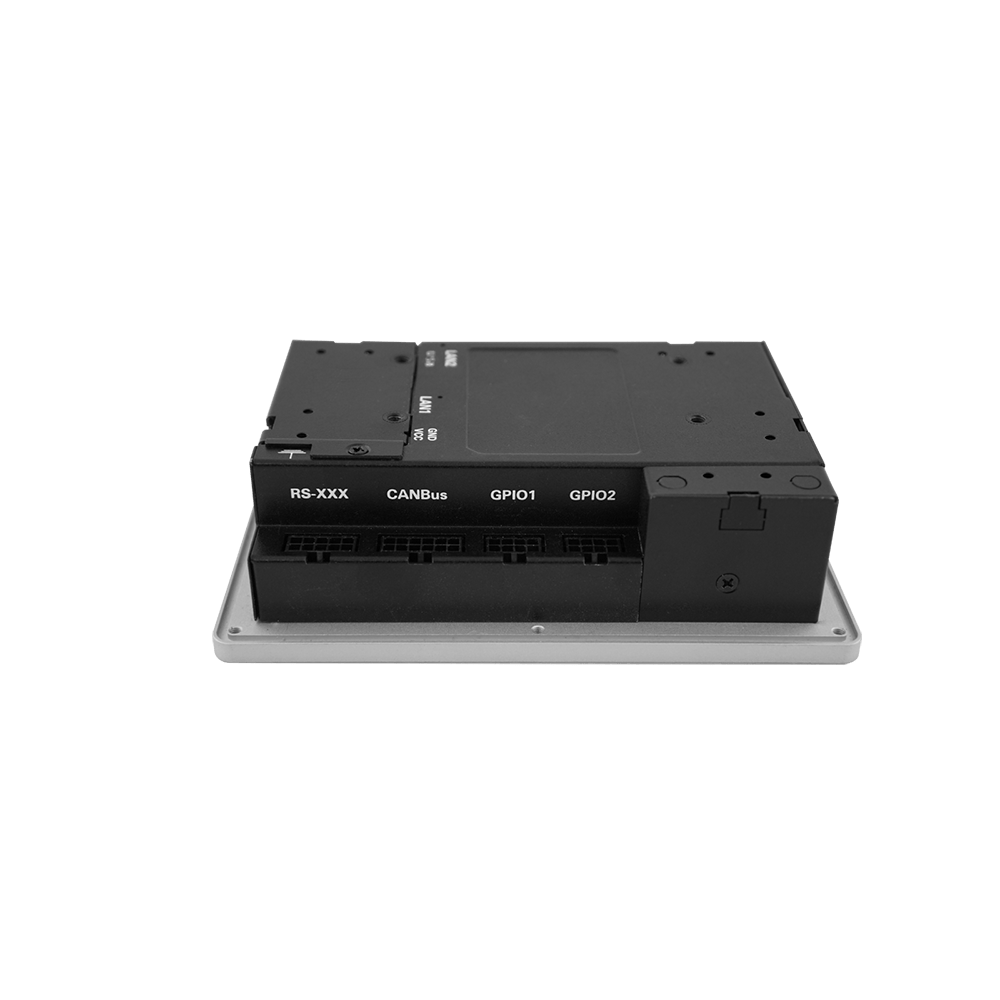

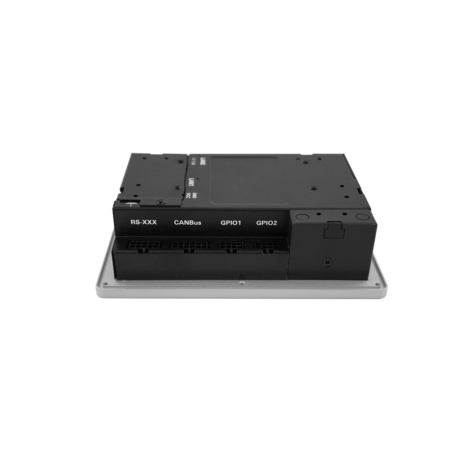

TEP-0500-IMX7 BOTTOM SIDE

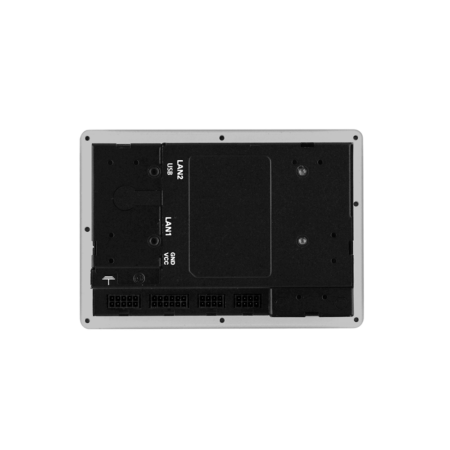

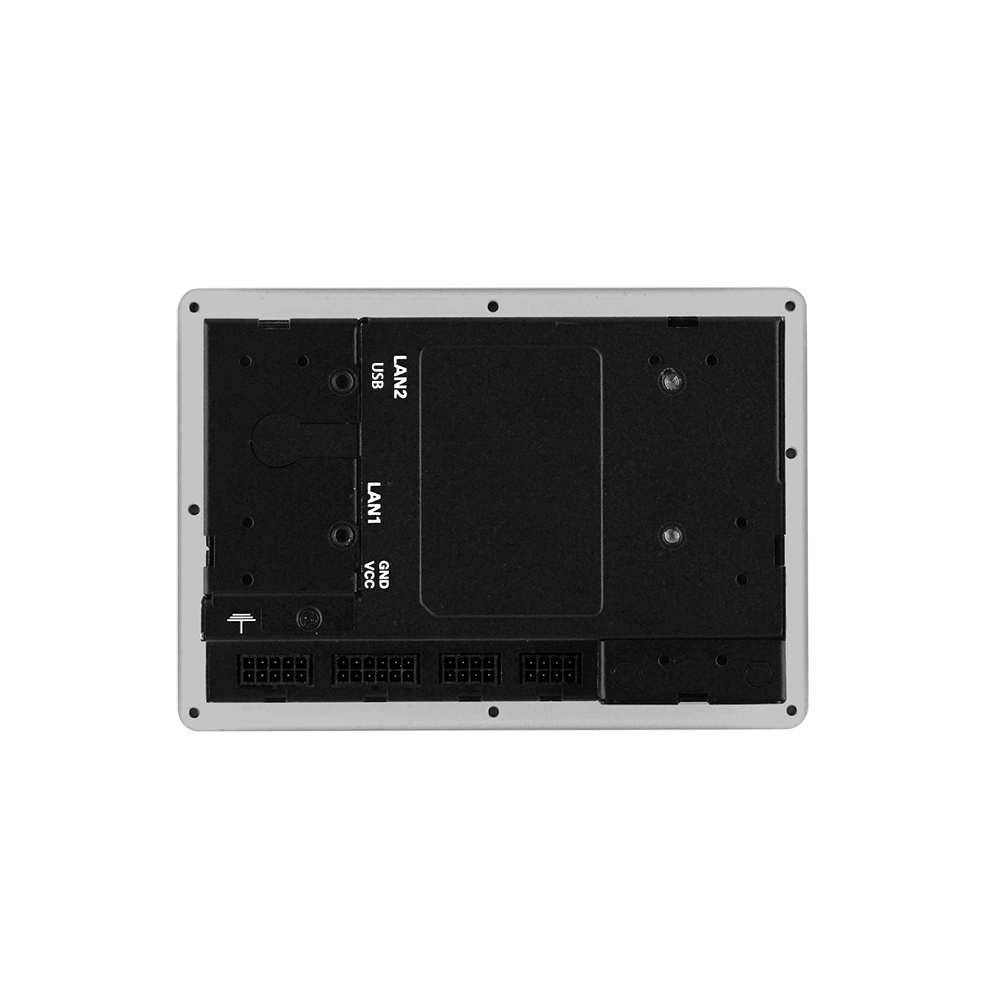

TEP-0500-IMX7 BACK

TEP-0500-IMX7

SKU: TEP0500IMX7 Categories: ,
More Information
Product Brief

TEP-0500-IMX7 is a low-power consumption HMI based on an NXP i.MX7 Dual core Cortex-A7™ + M4™ processor

Specifications

Additional information

Core System
Processor

NXP i.MX7 Dual

Processor Speed

1.0 Ghz

Architecture

ARM Cortex-A7 + M4

PMIC

NXP PF3000

Memory

Upto 2GB DDR3L

Storage

4GB eMMC
Connectivity
Network LAN

2x Atheros AR8035 Gigabit LAN

Power over Ethernet

PoE function 802.3at (optional)
Power Specifications
Power Input

12 VDC
9-36V DC (wide power input)

Power Consumption

Depending on Configuration

Power Connector

2-pin Micro-Fit 3.0
Software Support
Standard Support

Linux
Yocto
Android
Ubuntu

Extended Support

Commercial Linux
Mounting Options
Rear Mounting

4 mounting clips required (included)

VESA Mounting

35*75 VESA MIS C. Standard (separate purchase)

Surface Mounting

8 mounting holes
Display
LCD

5 inch widescreen LCD with LED Backlight

Resolution

800 x 480 pixels

Luminance

300 cd/m²

Maximum Colors

16.7 million

Touchscreen

Projective Capacitive (multitouch)
External Connectors
Network

2x RJ45

USB

1x USB 2.0 Host
1x USB 2.0 OTG (Type-C)

CAN BUS

2x Flex CAN version 2.0B compliant

Serial Port

2x RS-232

GPIO Connector

8x GPIO

Buttons

1x Boot Select
1x Reset

Indicators

1x Programmable LED

SIM Cardslot

1x Nano-SIM cardslot

SD Cardslot

1x MicroSD Card Slot
Environmental and Mechanical
Enclosure Material

Metal

Dimensions

150 (W) x 105 (H) x 42 (D) mm

Weight

550 grams

Frontbezel

Brushed Anodized Aluminium

Relative Humidity

10 to 90 %

IP Rating

IP65 Front

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0°C to +50°C

Vibration

1 Grms random 5-500Hz hr/axis
Expansion Interfaces
Expansion Slots

1x M.2 Slot with SIM Cardslot
Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives

Blockdiagram

TEP-0500-IMX7 Block Diagram

Dimensions

TEP-0500-IMX7 Dimensions
