SKU: C2305350FF Category:

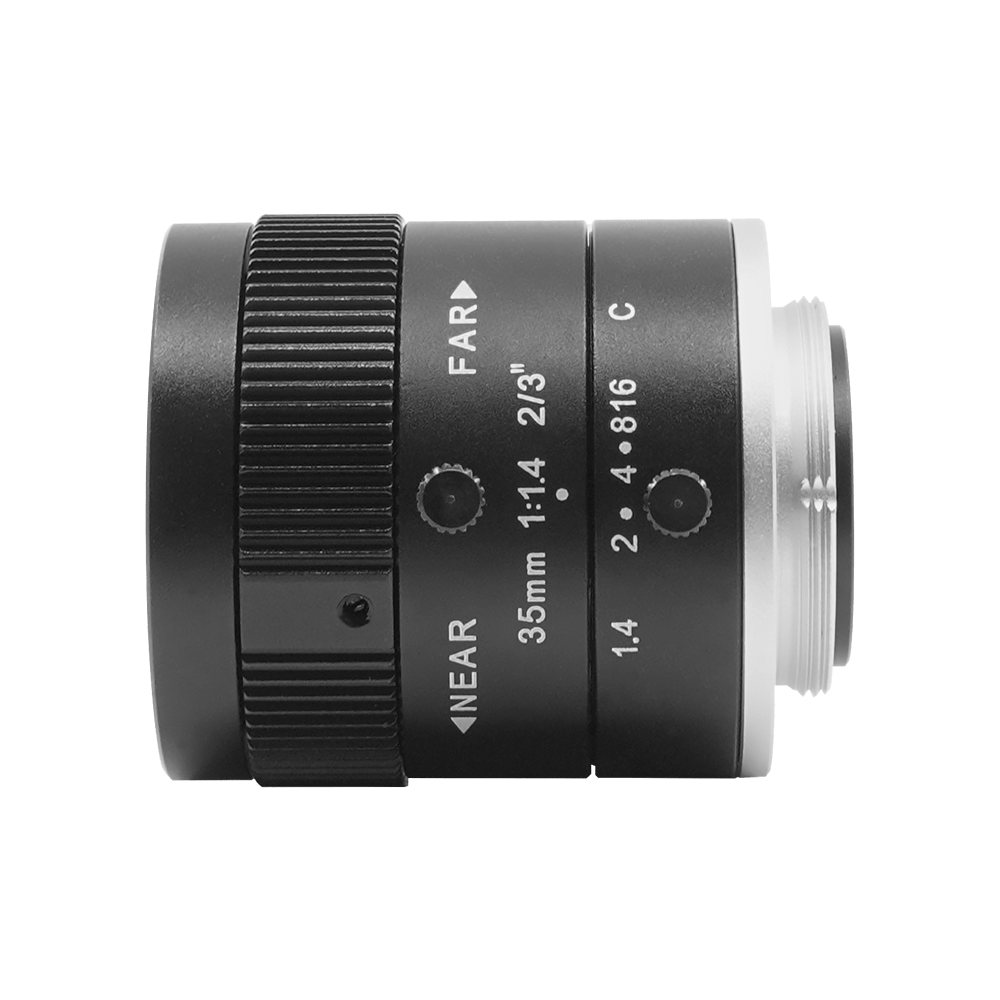

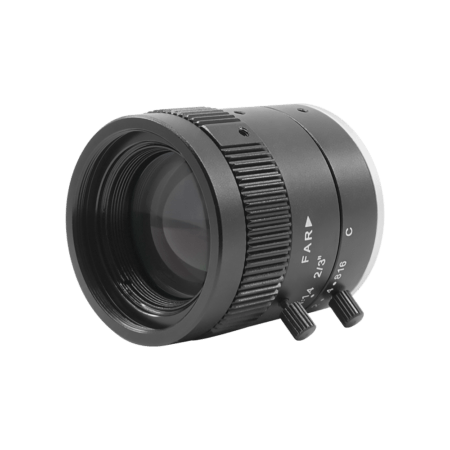

C-Mount Lens 35mm Fixed Focal Length Aperture Range From F1.4 ~ Close Up To 5 Megapixel Resolution

Out of stock

Specifications

Additional information

Lens Information
Focal Length

35 mm

Aperture

F1.4 ~ Close

Lens D-FOV

18.0°

Lens H-FOV

15.5°

Lens V-FOV

8.8°

TTL

56.74 mm

BFL

12.91 mm

MOD

0.5 m

Distortion

< – 1.0%

Lens Operating Temperature

-20°C to +100°C

Image Size

2/3”

Resolution

5MP

Environmental and Mechanical
Weight

94 grams

Material

Metal

Mount Type

C-Mount

Operation Focal

Manual with Lock

Operation Iris

Manual with Lock

Operation Zoom

Fixed

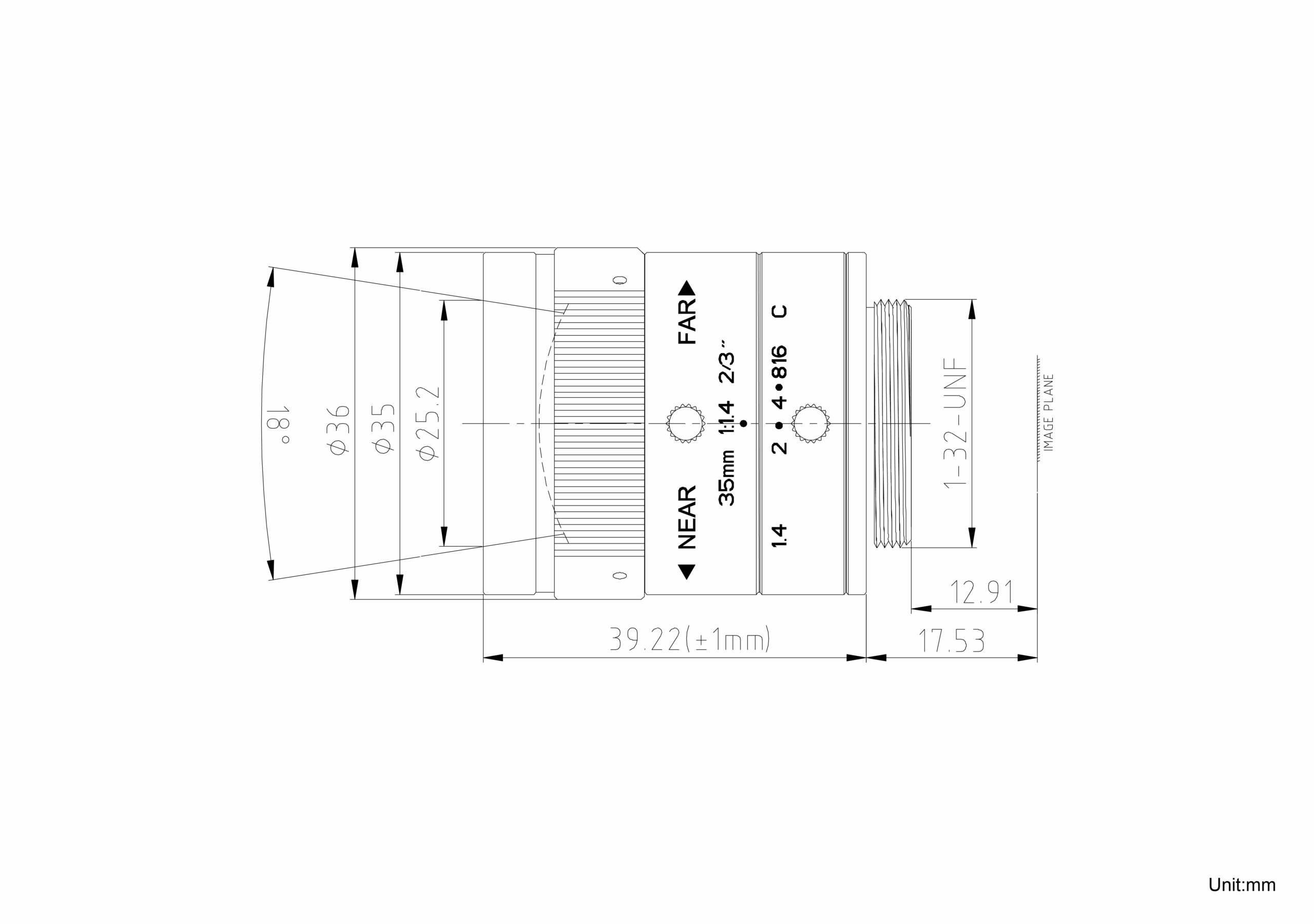

Dimensions

C2305350FF Dimension
