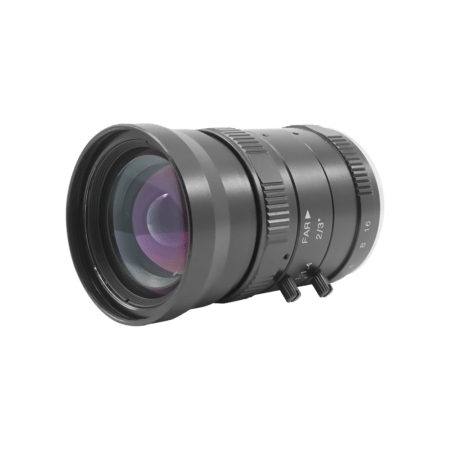

C2305080FF front-side

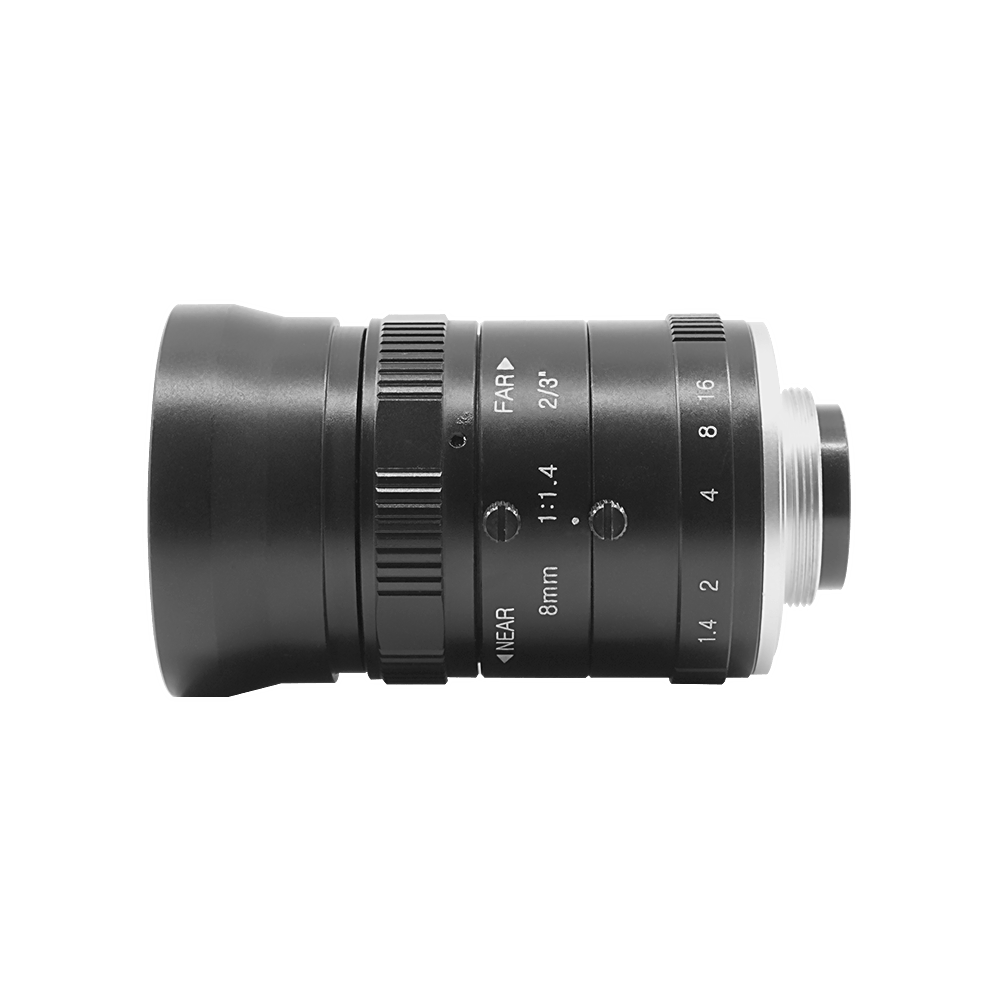

C2305080FF side

C2305080FF

SKU: C2305080FF Category:
More Information
Product Brief

C-Mount Lens 8mm Fixed Focal Length Aperture Range From F1.4 ~ F1.6 Up To 5 Megapixel Resolution

Out of stock

Specifications

Additional information

Lens Information
Focal Length

8 mm

Aperture

F1.4 ~ F16

Lens D-FOV

67.0°

Lens H-FOV

59.5°

Lens V-FOV

35.0°

TTL

84.41 mm

BFL

7.46 mm

MOD

0.2 m

Distortion

＜ – 1.2%

Lens Operating Temperature

-20°C to +100°C

Image Size

2/3”

Resolution

5MP
Environmental and Mechanical
Weight

242 grams

Material

Metal

Mount Type

C-Mount

Operation Focal

Manual with Lock

Operation Iris

Manual with Lock

Operation Zoom

Fixed

Dimensions

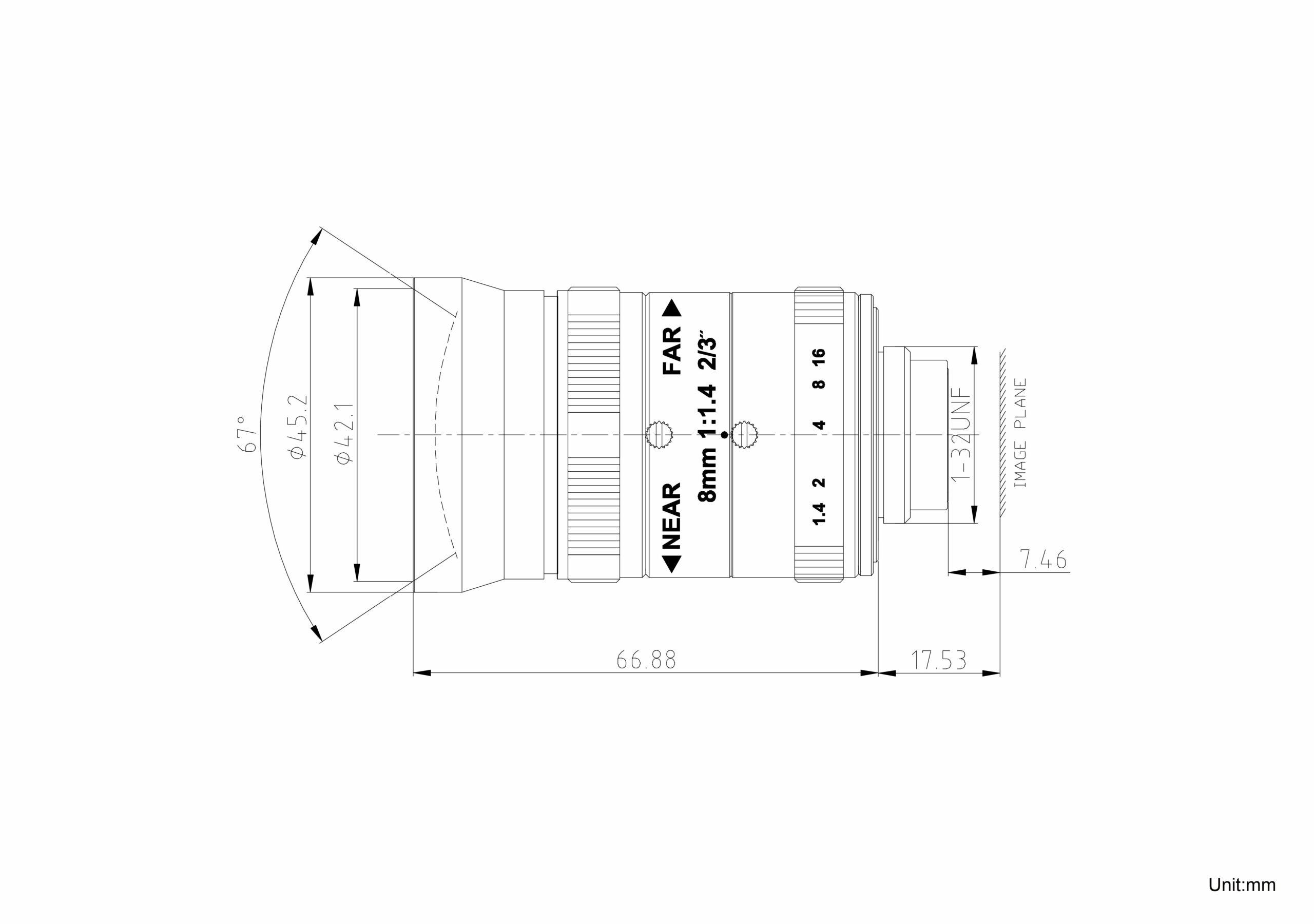

C2305080FF Dimension
