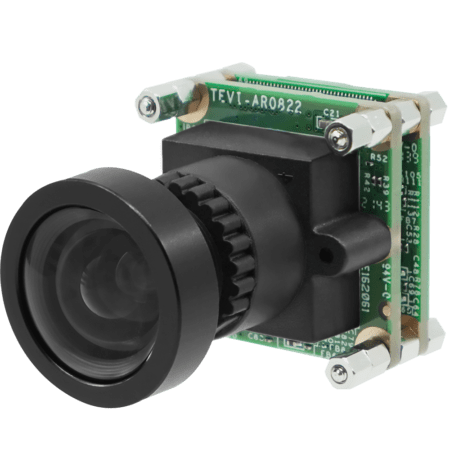

UVCI-AR0822-SL Medium FOV Right

UVCI-AR0822 Back

UVCI-AR0822-C-S72-IR

SKU: UVCIAR0822CS72IR Category: USB3 Type-C Cameras

More Information

Product Brief

USB3 Type-C PCB Board Camera with onsemi AR0822 8MP 4K Color Rolling Shutter with Onboard ISP + 72 Degree M12 Lens with IR-Cut Filter

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0822
Active Pixels	3848 (H) x 2168 (V) = 8MP
Pixel Size	2.0 μm x 2.0 μm
Optical Format	1/2” (Diagonal 8.81 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Illuminated type	Back Side Illuminated (BSI)
Maximum Frame Rate (MJPEG)	3840 x 2160 @ 30 fps 2560 x 1440 @ 60 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Maximum Frame Rate (UYVY)	3840 x 2160 @ 15 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Maximum S/N Ratio	40.5 dB
HDR Support	Yes
Output Format	UYVY MJPEG (JPG)

Interface

Connector	USB Type-C 5 Gbps

Power Specifications

Supply Voltage	5V ± 5%
Power Consumption	UYVY 3840 x 2160 @ 15 fps ≤ 1.3W
Standby Power	≤ 0.1W Standby

Software Support

Operation Systems	UVC Plug-and-play Windows 10/11 Linux Yocto
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	6 mm
Aperture	F2.8
Lens D-FOV	72.0°
Lens H-FOV	61.0°
Lens V-FOV	47.0°
Module D-FOV	72.0° ± 5%
Module H-FOV	64.7° ± 5%
Module V-FOV	39.0° ± 5%
TTL	28.6 mm
BFL	8.8 mm
MOD	0.1 m
Distortion	< 0.5%
IR-Filter	650 nm
Lens Operating Temperature	-10°C to +50°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 30.0(D) mm
Weight	23 grams
Relative Humidity	10 to 90 %
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Operation Temperature	-30°C to +70℃
Vibration	1 Grms random 5-500Hz hr/axis

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

UVCI-AR0822 Block Diagram

Dimensions

UVCI-AR0822 Dimension

Spectral Characteristics
