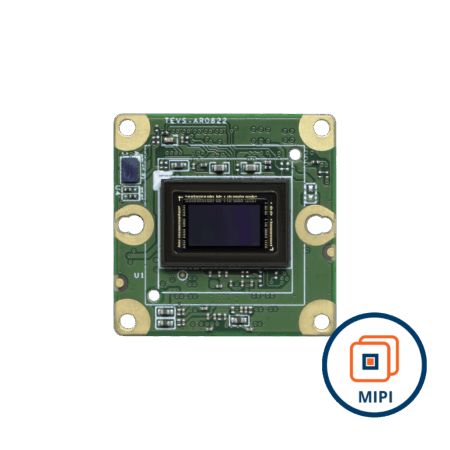

TEVS-AR0822 Top

TEVS-AR0822 Back

TEVS-AR0822-M

SKU: TEVSAR0822M Category: MIPI-CSI2 Sensors

More Information

Product Brief

MIPI-CSI2 Sensor onsemi AR0822 8MP 4K Mono Rolling Shutter with ISP

Available on backorder

Quantity	Discount (%)	Price
1 - 99	—	$95.00
100 - 249	5 %	$90.25
250 - 499	10 %	$85.50
500+	15 %	$80.75

x

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0822
Active Pixels	3848 (H) x 2168 (V) = 8MP
Pixel Size	2.0 μm x 2.0 μm
Optical Format	1/2” (Diagonal 8.81 mm)
Shutter Type	Rolling Shutter
Chromaticity	Mono
Illuminated type	Back Side Illuminated (BSI)
Maximum Frame Rate (YUY2)	3840 x 2160 @ 15 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Maximum S/N Ratio	40.5 dB
HDR Support	Yes
Input Clock Range	48 MHz
Output Format	YUV2

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	70 Pin Standardized Connector

Power Specifications

Supply Voltage	Digital: 3.3V Analog: 2.8V I/O: 1.8V
Power Consumption	3840 x 2160 @ 24 fps ≤ 1194 mW
Standby Power	≤ 52 mW Standby

Software Support

Platform Support	NVIDIA Jetson Nano NVIDIA Xavier NX NVIDIA Orin Nano / NX NXP i.MX8M Nano / Mini / Plus NXP i.MX93 TI Sitara™ AM62 / AM62A / AM67 TI Jacinto™ TDA4VM / AM68
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 4.65(D) mm
Weight	≤ 3 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

TEVS-AR0822 Block Diagram

Spectral Characteristics

AR0822 Spectral Characteristics

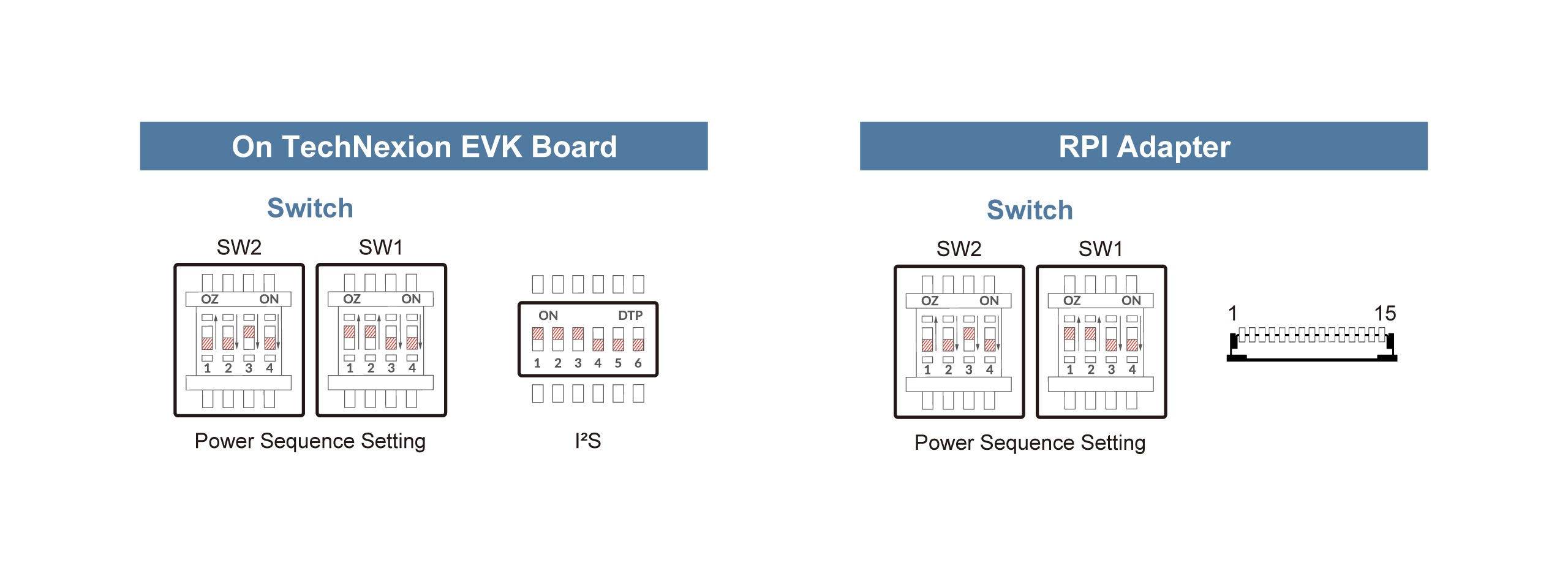

Switch Setting

AR0822 Switch
