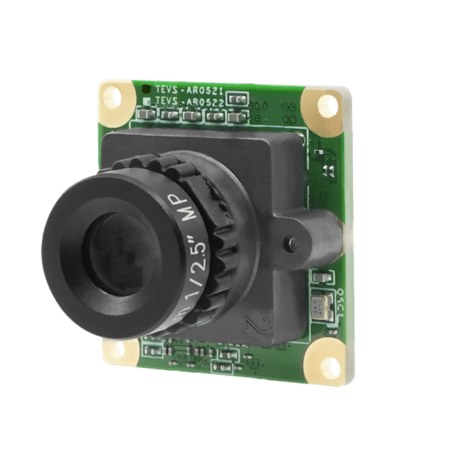

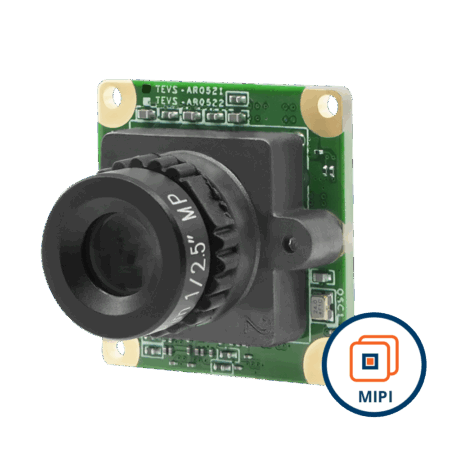

TEVS-AR0521 Narrow FOV Right

TEVS-AR0521-C-S34-IR

SKU: TEVSAR0521CS34IR Category: MIPI-CSI2 Sensors

More Information

Product Brief

MIPI-CSI2 Sensor onsemi AR0521 5MP Color Rolling Shutter with ISP + 34 Degree M12 Lens with IR-Cut Filter

30 in stock

Quantity	Discount (%)	Price
1 - 99	—	$80.00
100 - 249	5 %	$76.00
250 - 499	10 %	$72.00
500+	15 %	$68.00

x

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0521
Active Pixels	2592 (H) x 1944 (V) = 5MP
Pixel Size	2.2 µm x 2.2 µm
Illuminated type	Back Side Illuminated (BSI)
Maximum S/N Ratio	40 dB
Optical Format	1/2.5" (Diagonal 7.13mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	2592 x 1944 @ 24 fps 2560 x 1440 @ 32 fps 1920 x 1080 @ 60 fps 1280 x 960 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 120 fps
Output Format	YUV422-UYVY
Input Clock Range	48 MHz

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	70 Pin Standardized Connector

Power Specifications

Supply Voltage	Analog: 2.8V I/O: 1.8V Digital: 1.15V & 3.3V
Power Consumption	2592 x 1944 @ 24 fps ≤ 694 mW
SW Standby Power	≤ 50 mW Standby
HW Standby Power	≤ 25 mW Standby

Software Support

Platform Support	NVIDIA Jetson Orin Nano / NX NVIDIA Xavier NX NVIDIA Jetson Nano NXP i.MX93 / i.MX95 NXP i.MX8M Nano / Mini / Plus TI Sitara™ AM62 / AM62A / AM67 TI Sitara™ AM68 / AM69 TI Jacinto™ TDA4VM / TDA4VH BeagleY®-AI / BeaglePlay® Raspberry Pi 4 / Raspberry Pi 5 ST STM32MP25 Renesas RZ/V2H Intel Alder Lake-N
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	12 mm
Aperture	F2.0
Module D-FOV	33.6° ± 5%
Module H-FOV	26.8° ± 5%
Module V-FOV	20.1° ± 5%
TTL	23.2 mm
BFL	7.3 mm
MOD	0.3 m
Distortion	< – 2.5%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 12.7(D) mm
Weight	≤ 3 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

TEVS-AR0521 Block Diagram

Spectral Characteristics

AR0521 Spectral Characteristics

Switch Setting

AR0521 Switch
