TEVS-AR1335-C-S85-IR-NXP
$130.00

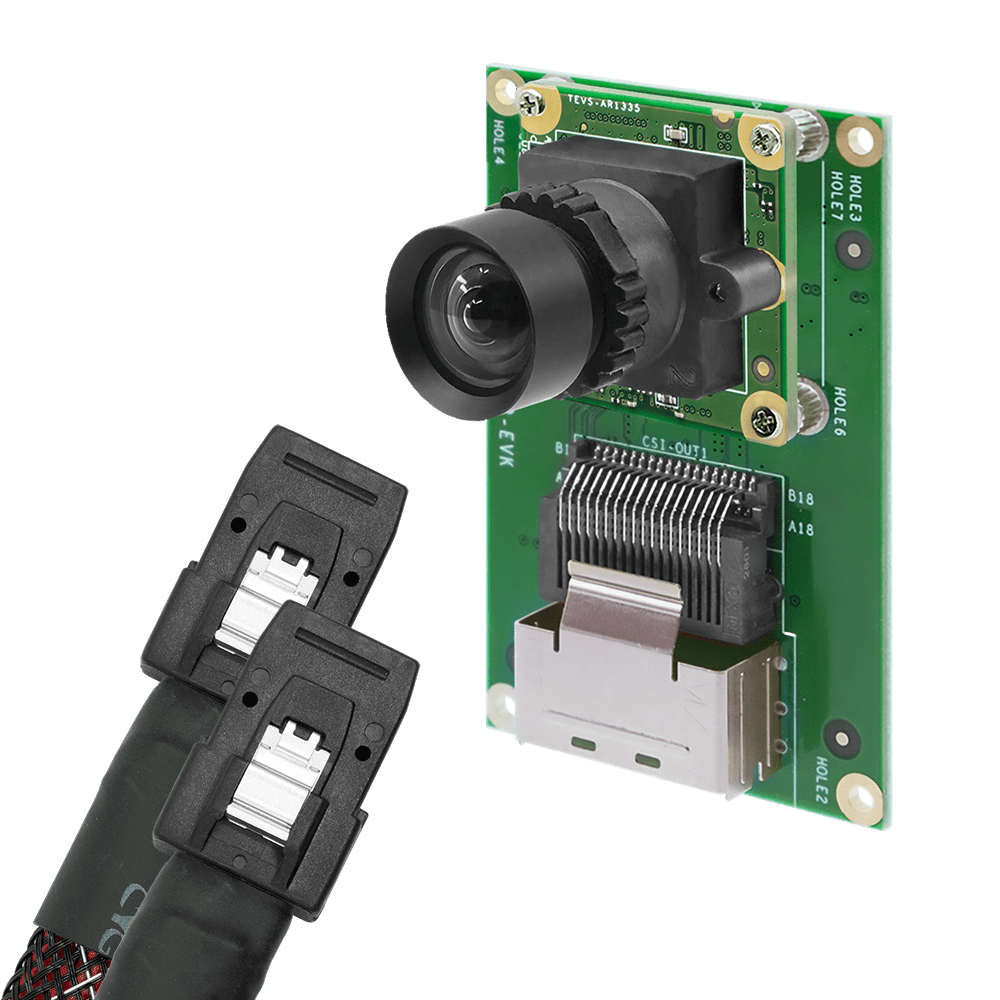

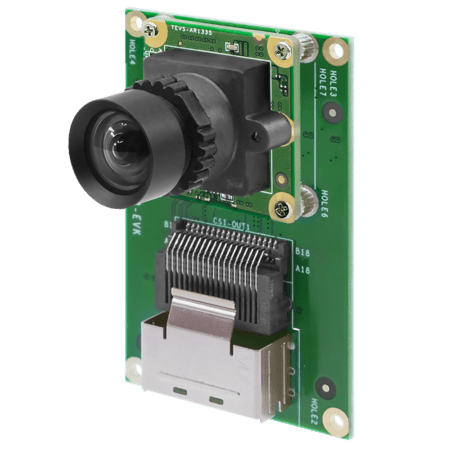

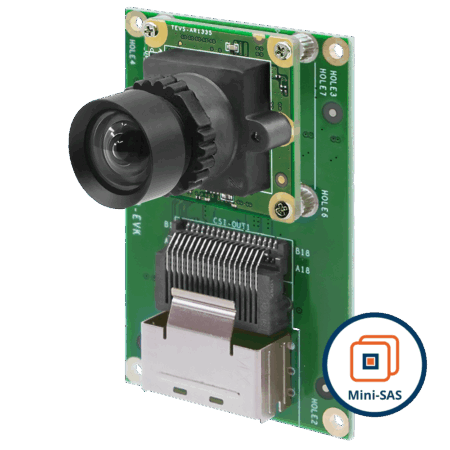

MIPI-CSI2 Sensor onsemi AR1335 13MP Color Rolling Shutter with ISP + 85 Degree M12 Lens with IR-Cut Filter + MINI-SAS Cable for NXP i.MX8 EVK
10 in stock (can be backordered)
Specifications
Additional information
CMOS Sensor | onsemi AR1335 |
---|---|
Active Pixels | 4208 (H) x 3120 (V) = 13MP |
Pixel Size | 1.1 μm x 1.1 μm |
Optical Format | 1/3.2” (Diagonal 5.8 mm) |
Shutter Type | Rolling Shutter |
Chromaticity | Color |
Illuminated type | Back Side Illuminated (BSI) |
Maximum Frame Rate (YUY2) | 4208 x 3120 @ 10 fps, 3840 x 2160 @ 15 fps, 2560 x 1440 @ 30 fps, 1920 x 1080 @ 60 fps, 1280 x 720 @ 120 fps, 640 x 480 @ 60 fps |
Maximum S/N Ratio | 37 dB |
HDR Support | Yes |
Input Clock Range | 48 MHz |
Output Format | YUV2 |
Module Data Transmission | MIPI CSI-2, up to 4 lanes |
Communication Interface | I2C |
Connector | Molex 757830132 36 Pin NXP EVK Kit Connector |
Supply Voltage | Analog: 2.8V, I/O: 1.8V, Digital: 1.15V & 3.3V |
Power Consumption | 4300 x 3120 @ 10 fps ≤ 622 mW |
Standby Power | ≤ 33 mW Standby |
Platform Support | NXP i.MX93, NXP i.MX8M Plus, NXP i.MX8M Mini |
Operation Systems | Linux, Yocto |
SDK | VizionViewer™ / VizionSDK |
Operation Temperature | -30°C to +70℃ |
Dimensions | 24.5(W) x 24.5(H) x 18.3(D) mm |
Weight | ≤ 20 grams |
Certification | Compliant with CE / FCC / RoHS / REACH directives |
Brand | TechNexion |
Country of Origin | Taiwan |
HTSN | 8525.80.5050 |
ECCN | EAR99 |
REACH / RoHS | Yes |
Focus Type | Fixed Focus |
Focal Length | 3.2 mm |
Aperture | F2.4 |
Lens D-FOV | 91.0° |
Lens H-FOV | 82.0° |
Lens V-FOV | 51.4° |
Module D-FOV | 84.6° ± 5% |
Module H-FOV | 70.3° ± 5% |
Module V-FOV | 55.2° ± 5% |
TTL | 22 mm |
BFL | 3.4 mm |
MOD | 0.3 m |
Distortion | < 3.9% |
IR-Filter | 650 nm |
Lens Operating Temperature | -20°C to +60°C |
