TEVS-AR0821-RPI15 Narrow FOV

TEVS-AR0821-C-S44-IR-RPI15

SKU: TEVSAR0821CS44IRRPI15 Category: MIPI-CSI2 Sensors

More Information

Product Brief

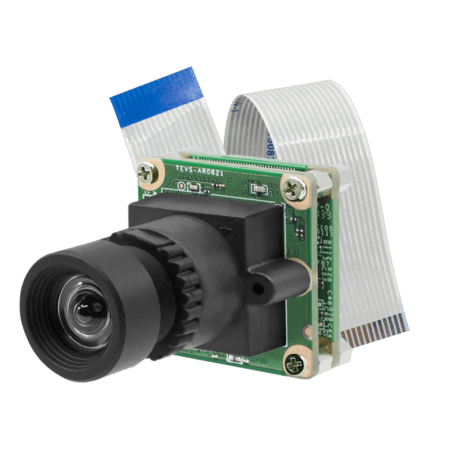

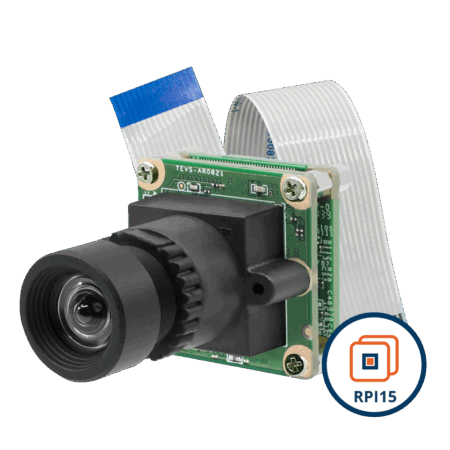

MIPI-CSI2 Sensor onsemi AR0821 8MP 4K Color Rolling Shutter with ISP + 44 Degree M12 Lens with IR-Cut Filter + RPI 15 Pin Converter and Flex PCB

Available on backorder

Quantity	Discount (%)	Price
1 - 99	—	$162.00
100 - 249	5 %	$153.90
250 - 499	10 %	$145.80
500+	15 %	$137.70

x

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0821
Active Pixels	3848 (H) x 2168 (V) = 8MP
Pixel Size	2.1 μm x 2.1 μm
Optical Format	1/2” (Diagonal 9.25 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Illuminated type	Back Side Illuminated (BSI)
Maximum Frame Rate (YUY2)	1280 x 720 @ 60 fps 1920 x 1080 @ 60 fps 2560 x 1440 @ 30 fps 3840 x 2160 @ 15 fps 640 x 480 @ 60 fps
Maximum S/N Ratio	41.8 dB
HDR Support	Yes
Input Clock Range	48 MHz
Output Format	YUV2

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	15 Pin Standardized ZIF Connector

Power Specifications

Supply Voltage	Analog: 2.8V I/O: 1.8V Digital: 1.15V & 3.3V
Power Consumption	3840 x 2160 @ 23 fps ≤ 1118 mW
Standby Power	≤ 54 mW Standby

Software Support

Platform Support	TI Jacinto™ TDA4VM / TDA4VA / TDA4VH NVIDIA Jetson Nano NVIDIA Xavier NX NVIDIA Orin Nano/NX
Operation Systems	Linux
SDK	VizionViewer™ SDK

Lens Information

Focus Type	Fixed Focus
Focal Length	12 mm
Aperture	F2.0
Lens D-FOV	41.0°
Lens H-FOV	38.0°
Lens V-FOV	22.0°
Module D-FOV	44.0° ± 5%
Module H-FOV	38.3° ± 5%
Module V-FOV	21.6° ± 5%
TTL	23.9 mm
BFL	3.88 mm
MOD	0.15 m
Distortion	< 0.2%
IR-Filter	650 nm
Lens Operating Temperature	-10°C to +50°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 23.6(D) mm
Weight	≤ 18 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Spectral Characteristics

AR0821 Spectral Characteristics

Switch Setting

AR0821 Switch
