TEVS-AR0522-C-S140-IR-RPI15
$96.00

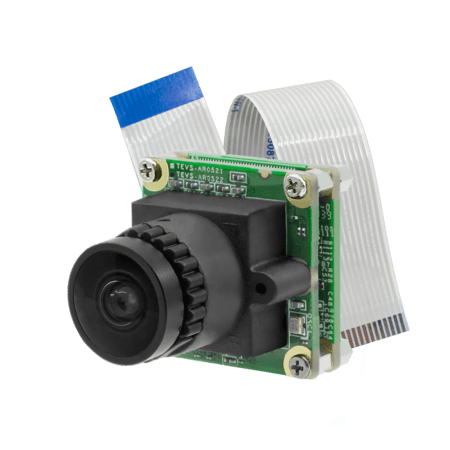

MIPI-CSI2 Sensor onsemi AR0522 5MP Color Rolling Shutter with ISP + 140 Degree M12 Lens with IR-Cut Filter + RPI 15 Pin Converter and Flex PCB
30 in stock (can be backordered)
Specifications
Additional information
| CMOS Sensor | onsemi AR0522 |
|---|---|
| Active Pixels | 2592 (H) x 1944 (V) = 5MP |
| Pixel Size | 2.2 µm x 2.2 µm |
| Optical Format | 1/2.5" (Diagonal 7.13mm) |
| Shutter Type | Rolling Shutter |
| Chromaticity | Color |
| Illuminated type | Back Side Illuminated (BSI) |
| Maximum Frame Rate (YUY2) | 2592 x 1944 @ 24 fps, 2560 x 1440 @ 32 fps, 1920 x 1080 @ 60 fps, 1280 x 960 @ 60 fps, 1280 x 720 @ 60 fps, 640 x 480 @ 120 fps |
| Maximum S/N Ratio | 40 dB |
| Input Clock Range | 48 MHz |
| Output Format | YUV2 |
| Module Data Transmission | MIPI CSI-2, up to 4 lanes |
| Communication Interface | I2C |
| Connector | 15 Pin Standardized ZIF Connector |
| Supply Voltage | Analog: 2.8V, I/O: 1.8V, Digital: 1.15V & 3.3V |
| Power Consumption | 2592 x 1944 @ 24 fps ≤ 678 mW |
| SW Standby Power | ≤ 43 mW Standby |
| HW Standby Power | ≤ 20 mW Standby |
| Platform Support | NVIDIA Xavier NX, NVIDIA Jetson Nano, TI Jacinto™ TDA4VM / TDA4VH, Raspberry Pi 4 |
| Operation Systems | Linux |
| SDK | VizionViewer™ / VizionSDK |
| Dimensions | 24.5(W) x 24.5(H) x 19.2(D) mm |
| Weight | ≤ 18 grams |
| Operation Temperature | -30°C to +70℃ |
| Certification | Compliant with CE / FCC / RoHS / REACH directives |
| Brand | TechNexion |
| Country of Origin | Taiwan |
| HTSN | 8525.80.5050 |
| ECCN | EAR99 |
| REACH / RoHS | Yes |
| Focus Type | Fixed Focus |
| Focal Length | 2.87 mm |
| Aperture | F2.8 |
| Module D-FOV | 140.0° ± 5% |
| Module H-FOV | 110.5° ± 5% |
| Module V-FOV | 81.4° ± 5% |
| TTL | 21 mm |
| BFL | 5.27 mm |
| MOD | 0.3 m |
| Distortion | < – 20.0% |
| IR-Filter | 650 nm |
| Lens Operating Temperature | -20°C to +60°C |
Spectral Characteristics
Switch Setting
