TEVS-AR0234-RPI15 Narrow FOV Kit

TEVS-AR0234-C-S32-IR-RPI15

SKU: TEVSAR0234CS32IRRPI15 Category: MIPI-CSI2 Sensors

More Information

Product Brief

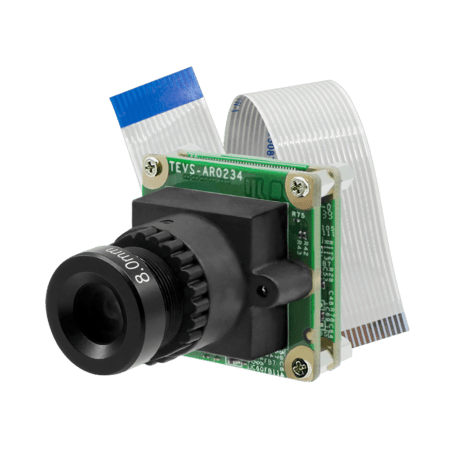

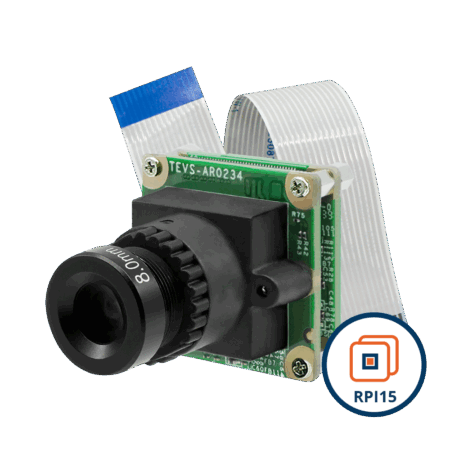

MIPI-CSI2 Sensor onsemi AR0234 2MP Full-HD Color Global Shutter with ISP + 32 Degree M12 Lens with IR-Cut Filter + RPI 15 Pin Converter and Flex PCB

25 in stock

Quantity	Discount (%)	Price
1 - 99	—	$132.00
100 - 249	5 %	$125.40
250 - 499	10 %	$118.80
500+	15 %	$112.20

x

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0234
Active Pixels	1920 (H) x 1200 (V) = 2.3MP
Pixel Size	3.0 μm x 3.0 μm
Optical Format	1/2.6” (Diagonal 6.8 mm)
Shutter Type	Global Shutter
Chromaticity	Color
Illuminated type	Front Side Illuminated (FSI)
Maximum Frame Rate (YUY2)	1920 x 1200 @ 60 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 120 fps 640 x 480 @ 120 fps
Maximum S/N Ratio	38 dB
Input Clock Range	48 MHz
Output Format	YUV2

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	15 Pin Standardized ZIF Connector

Power Specifications

Supply Voltage	Analog: 2.8V I/O: 1.8V Digital: 1.15V & 3.3V
Power Consumption	1920 x 1200 @ 80 fps ≤ 861 mW
Standby Power	≤ 33 mW Standby

Software Support

Platform Support	TI Jacinto™ TDA4VM / TDA4VA / TDA4VH NVIDIA Jetson Nano NVIDIA Xavier NX NVIDIA Orin Nano/NX
Operation Systems	Linux
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	12 mm
Aperture	F2.0
Lens D-FOV	34.0°
Lens H-FOV	28.2°
Lens V-FOV	17.5°
Module D-FOV	31.8° ± 5%
Module H-FOV	26.9° ± 5%
Module V-FOV	16.8° ± 5%
TTL	23.2 mm
BFL	7.3 mm
MOD	0.3 m
Distortion	< – 2.5%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 19.2(D) mm
Weight	≤ 18 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Spectral Characteristics

AR0234 Spectral Characteristics

Switch Setting

AR0234 Switch
