TEVS-AR0234-C-S128-IR-NXP
$170.00

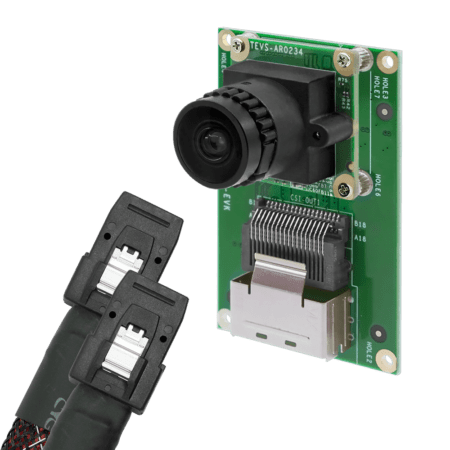

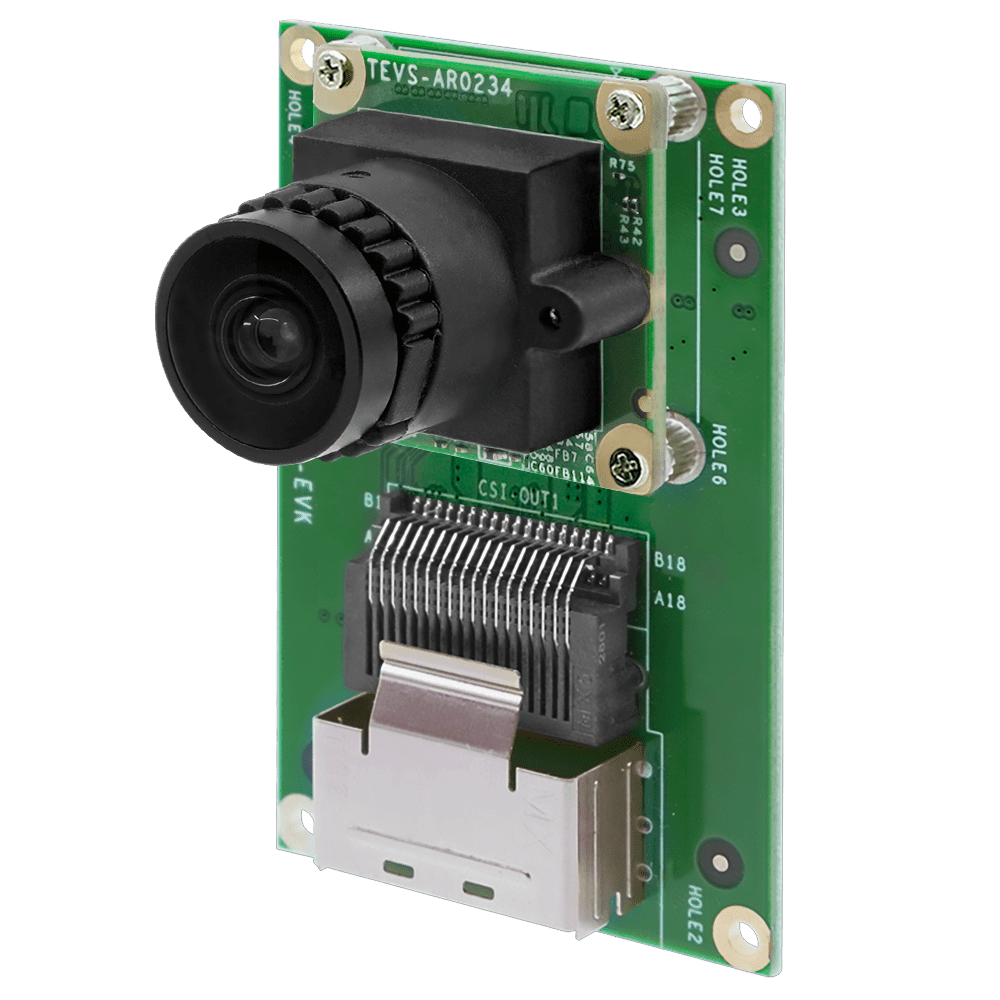

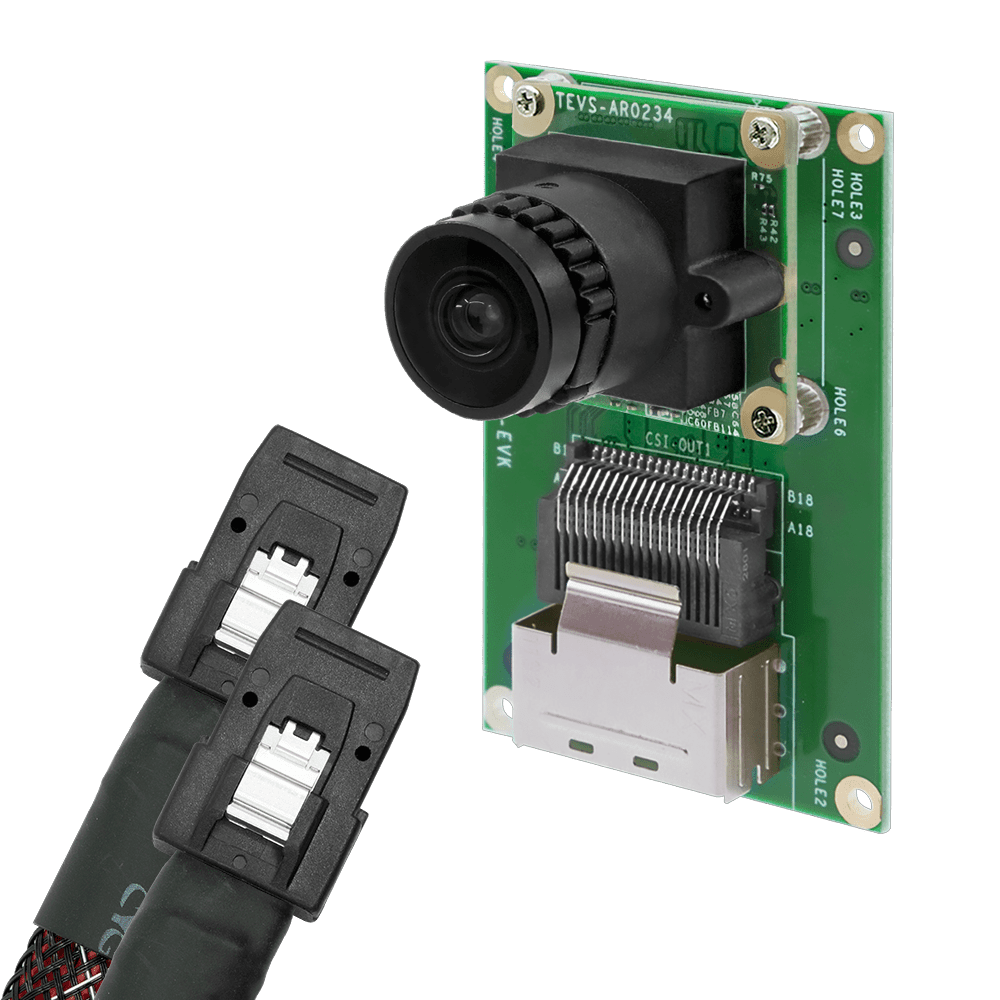

MIPI-CSI2 Sensor onsemi AR0234 2MP Full-HD Color Global Shutter with ISP + 128 Degree M12 Lens with IR-Cut Filter + MINI-SAS Cable for NXP i.MX8 EVK
30 in stock (can be backordered)
Specifications
Additional information
CMOS Sensor | onsemi AR0234 |
---|---|
Active Pixels | 1920 (H) x 1200 (V) = 2.3MP |
Pixel Size | 3.0 μm x 3.0 μm |
Optical Format | 1/2.6” (Diagonal 6.8 mm) |
Shutter Type | Global Shutter |
Chromaticity | Color |
Illuminated type | Front Side Illuminated (FSI) |
Maximum Frame Rate (YUV422-UYVY) | 1920 x 1200 @ 60 fps, 1920 x 1080 @ 60 fps, 1280 x 720 @ 120 fps, 640 x 480 @ 120 fps |
Maximum S/N Ratio | 38 dB |
Input Clock Range | 48 MHz |
Output Format | YUV422-UYVY |
Module Data Transmission | MIPI CSI-2, up to 4 lanes |
Communication Interface | I2C |
Connector | Molex 757830132 36 Pin NXP EVK Kit Connector |
Supply Voltage | Analog: 2.8V, I/O: 1.8V, Digital: 1.15V & 3.3V |
Power Consumption | 1920 x 1200 @ 80 fps ≤ 861 mW |
SW Standby Power | ≤ 53 mW Standby |
HW Standby Power | ≤ 30 mW Standby |
Platform Support | NXP i.MX93 / i.MX95, NXP i.MX8M Plus, NXP i.MX8M Mini |
Operation Systems | Linux, Yocto |
SDK | VizionViewer™ / VizionSDK |
Operation Temperature | -30°C to +70℃ |
Dimensions | 55(W) x 35(H) x 18.3(D) mm |
Weight | ≤ 20 grams |
Certification | Compliant with CE / FCC / RoHS / REACH directives |
Brand | TechNexion |
Country of Origin | Taiwan |
HTSN | 8525.80.5050 |
ECCN | EAR99 |
REACH / RoHS | Yes |
Focus Type | Fixed Focus |
Focal Length | 2.87 mm |
Aperture | F2.8 |
Module D-FOV | 127.7° ± 5% |
Module H-FOV | 110.5° ± 5% |
Module V-FOV | 68.6° ± 5% |
TTL | 21 mm |
BFL | 5.27 mm |
MOD | 0.3 m |
Distortion | < – 20.0% |
IR-Filter | 650 nm |
Lens Operating Temperature | -20°C to +60°C |
