TEVI-OV5640-NXP Medium FOV

TEVI-OV5640-NXP Medium FOV Kit

TEVI-OV5640-C-S84-IR-NXP

SKU: TEVIOV5640CS84IRNXP Category: MIPI-CSI2 Sensors

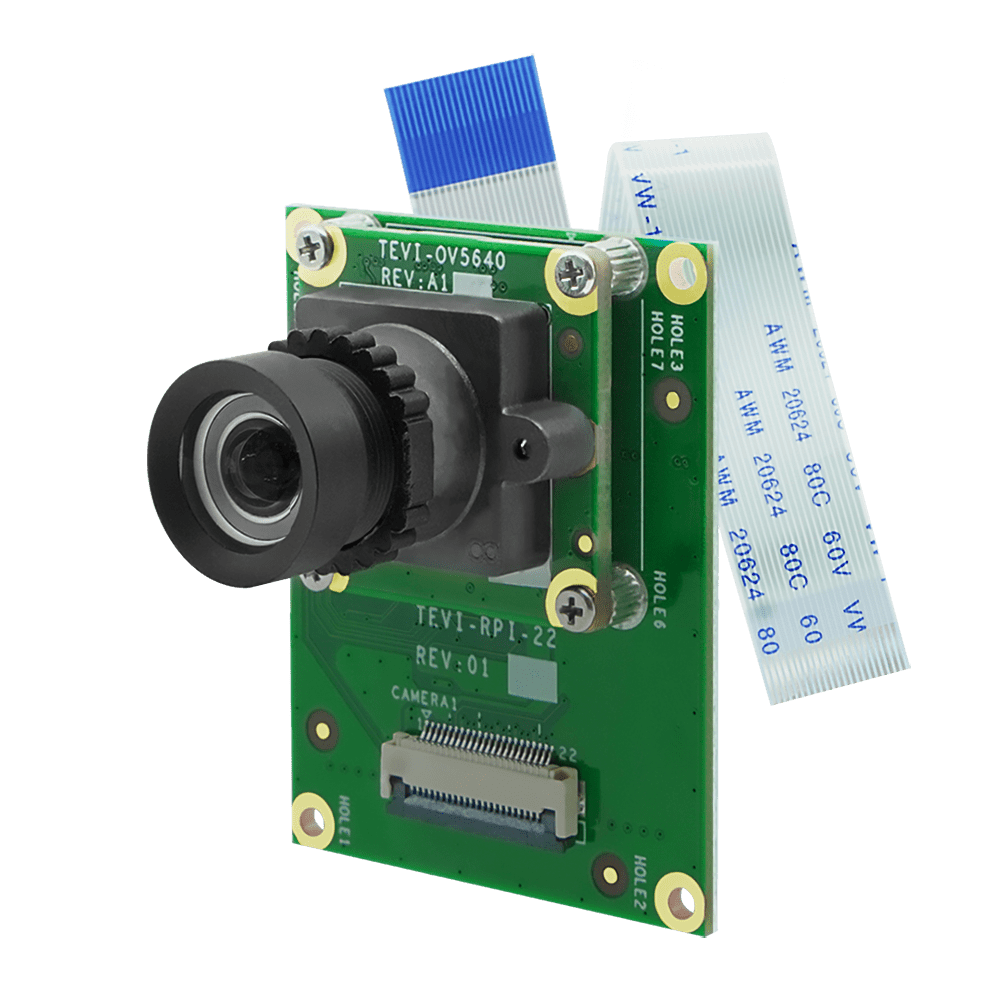

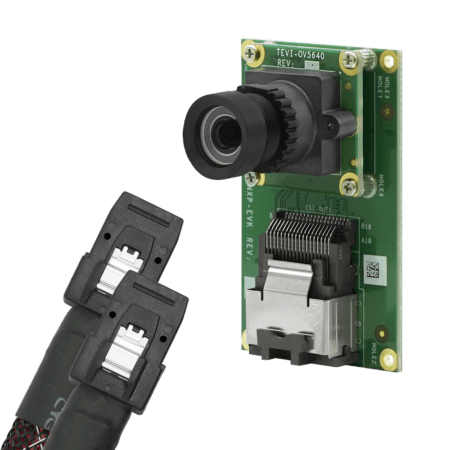

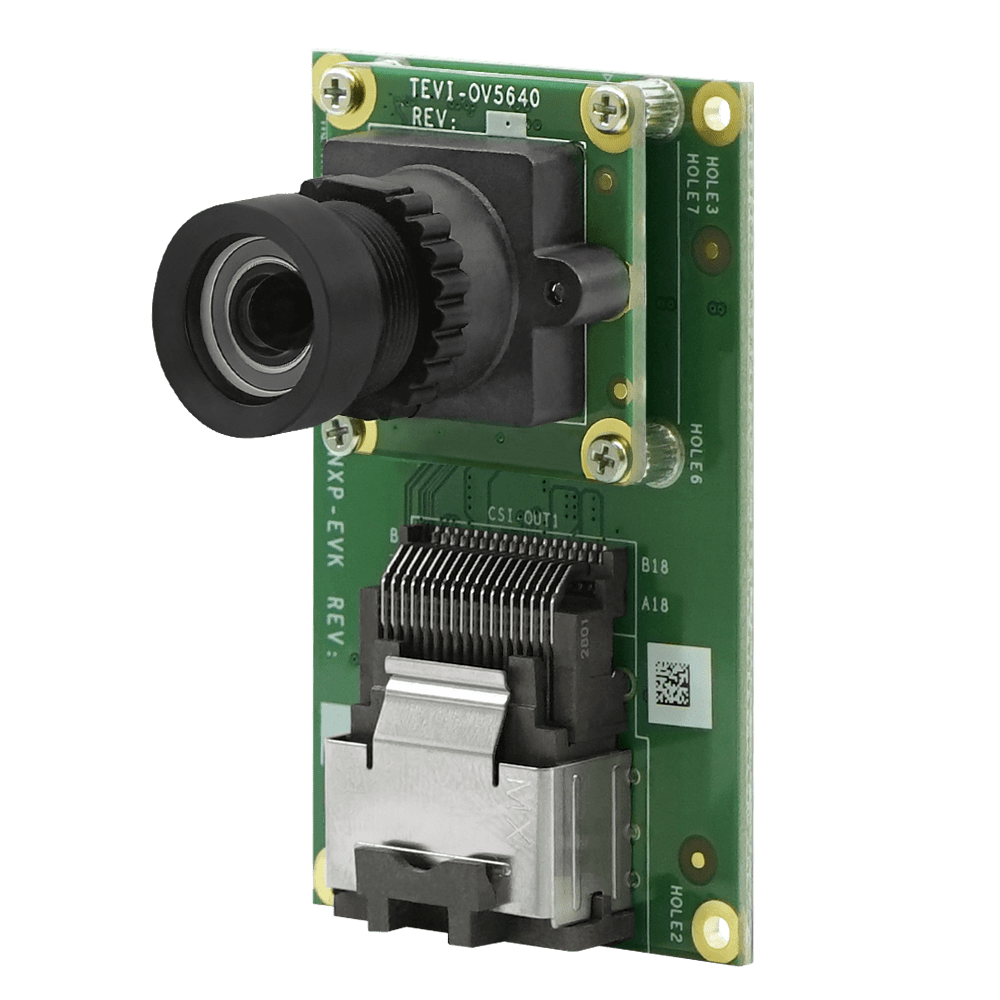

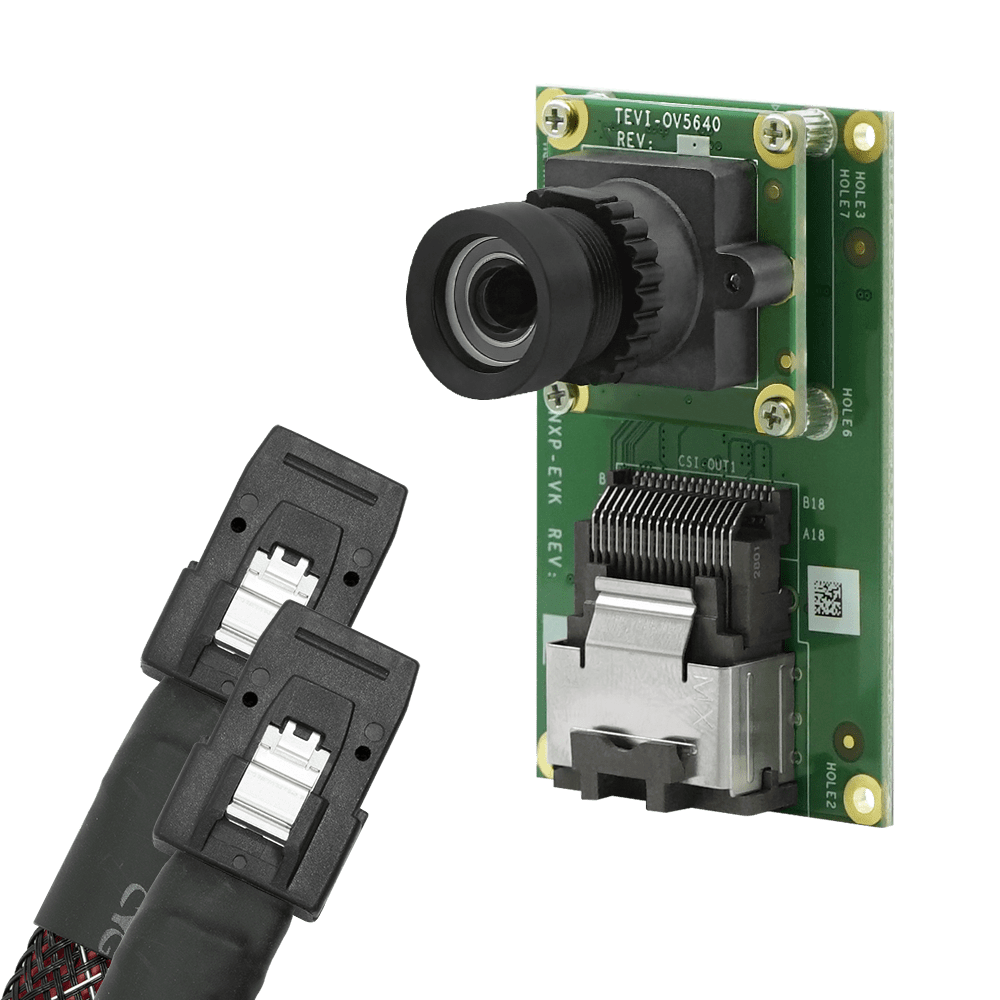

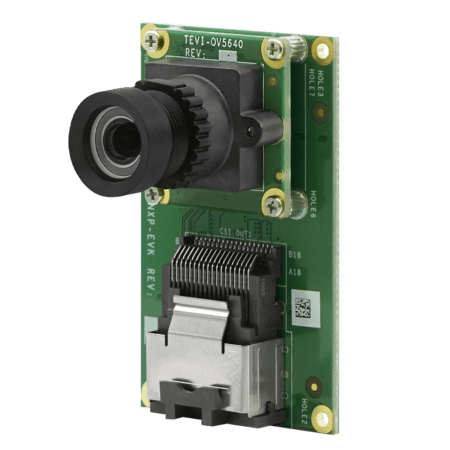

MIPI-CSI2 Sensor OmniVision OV5640 5MP Color Rolling Shutter with ISP + 84 Degree M12 Lens with IR-Cut Filter + MINI-SAS Cable for NXP i.MX8 EVK

More Information

Product Brief

Quantity	Discount (%)	Price
1 - 99	—	$100.00
100 - 249	5 %	$95.00
250 - 499	10 %	$90.00
500+	15 %	$85.00

3 in stock (can be backordered)

Specifications

Additional information

Camera Information

CMOS Sensor	OmniVision OV5640
Active Pixels	2592 (H) x 1944 (V) = 5MP
Pixel Size	1.4 μm x 1.4 μm
Illuminated type	Back Side Illuminated (BSI)
Maximum S/N Ratio	36 dB
Input Clock Range	48 MHz
Optical Format	1/4” (Diagonal 4.6 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	2592 x 1944 @ 15 fps 1920 x 1080 @ 30 fps 1280 x 720 @ 60 fps 640 x 480 @ 30 fps
Output Format	YUV422-UYVY

Interface

Module Data Transmission	MIPI CSI-2, up to 2 lanes
Communication Interface	I2C
Connector	Molex 757830132 36 Pin NXP EVK Kit Connector

Power Specifications

Supply Voltage	Digital: 3.3V Analog: 2.8V I/O: 1.8V
Power Consumption	2592 x 1944 @ 15 fps ≤ 294 mW
Standby Power	≤ 18 mW Standby

Software Support

Platform Support	NXP i.MX93 NXP i.MX8M Plus NXP i.MX8M Mini
Operation Systems	Linux Yocto
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	2.85 mm
Aperture	F2.8
Module D-FOV	83.8° ± 5%
Module H-FOV	71.5° ± 5%
Module V-FOV	56.9° ± 5%
TTL	20 mm
BFL	2.03 mm
MOD	0.3 m
Distortion	< – 0.35%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 18.3(D) mm
Weight	≤ 20 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

TEVI-OV5640-C-S84-IR-NXP Block Diagram

Dimension

TEVI-OV5640-NXP Dimension

Spectral Characteristics

OV5640 Spectral Characteristics
