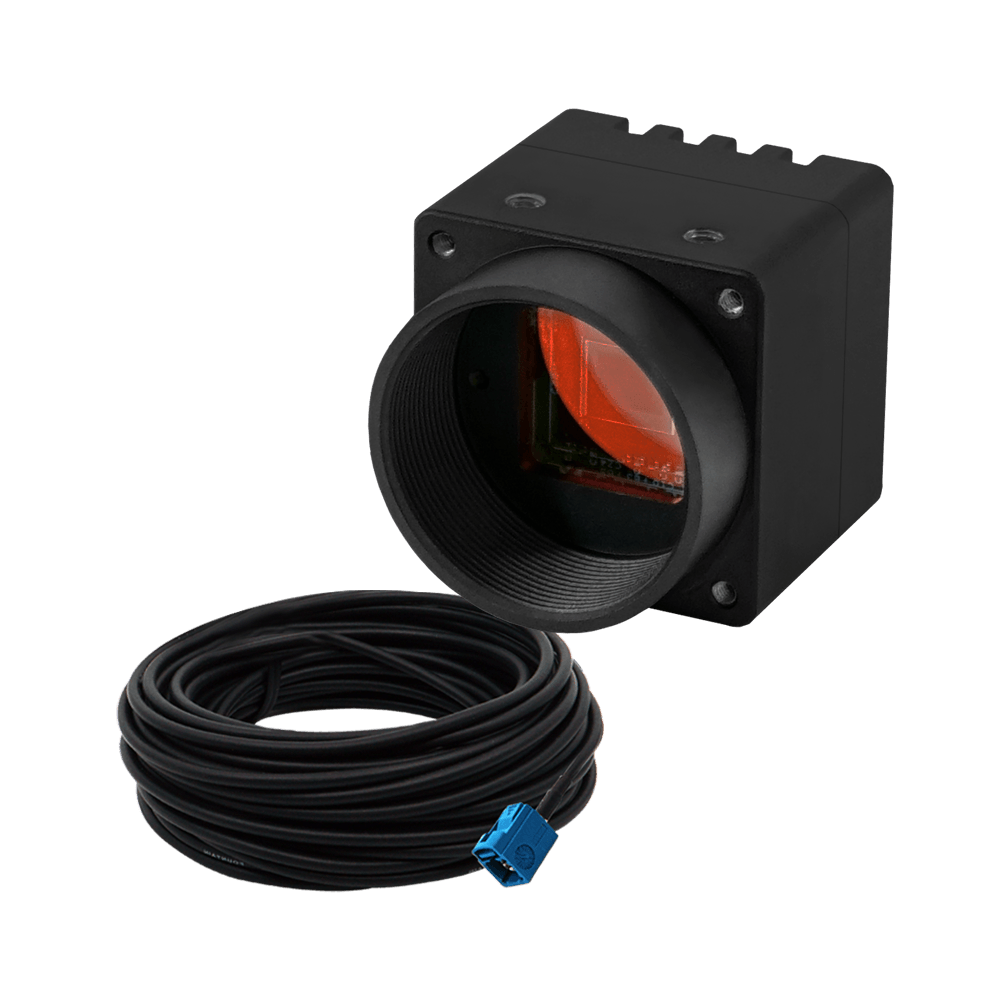

VLS3-AR1335-CB Kit

VIZIONLINK Back

VLS3-AR1335-C-CB-IR

SKU: VLS3AR1335CCBIR Category: FPD-Link III Cameras

More Information

Product Brief

Quantity	Discount (%)	Price
1	—	$158.00

FPDLINK-III IP68 Camera with onsemi AR1335 13MP Color Rolling Shutter with ISP + IR-Cut Filter with C Mount Body

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR1335
Active Pixels	4208 (H) x 3120 (V) = 13MP
Pixel Size	1.1 μm x 1.1 μm
Illuminated type	Back Side Illuminated (BSI)
Maximum S/N Ratio	37 dB
Optical Format	1/3.2” (Diagonal 5.8 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	4208 x 3120 @ 10 fps 3840 x 2160 @ 15 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 120 fps 640 x 480 @ 60 fps
Output Format	YUV422-UYVY
HDR Support	Yes

Interface

Serial Link	FPD-Link III
Connector	FAKRA SMB Jack Z-Code

Power Specifications

Supply Voltage	12V ± 5%
Power Consumption	UYVY 4200 x 3120 @ 12 fps ≤ 1.4W
Standby Power	≤ 0.3W Standby

Software Support

Platform Support	NVIDIA Jetson Orin Nano / NX NVIDIA Xavier NX NVIDIA Jetson Nano NXP i.MX93 NXP i.MX8M Mini / Plus TI Sitara™ AM62 / AM62A / AM67 TI Jacinto™ TDA4VM / TDA4VH x86 Intel / AMD
Operation Systems	Linux Yocto
SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Dimensions	29.5(W) x 29.5(H) x 37.5(D) mm
Weight	40 grams
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Vibration	1 Grms random 5-500Hz hr/axis
Relative Humidity	10 to 90 %
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

VLS3-AR1335-CB Block Diagram

Dimensions

VLS3-AR1335-CB Dimension

Spectral Characteristics

AR1335 Spectral Characteristics
