VLS3-AR0822-CB Kit

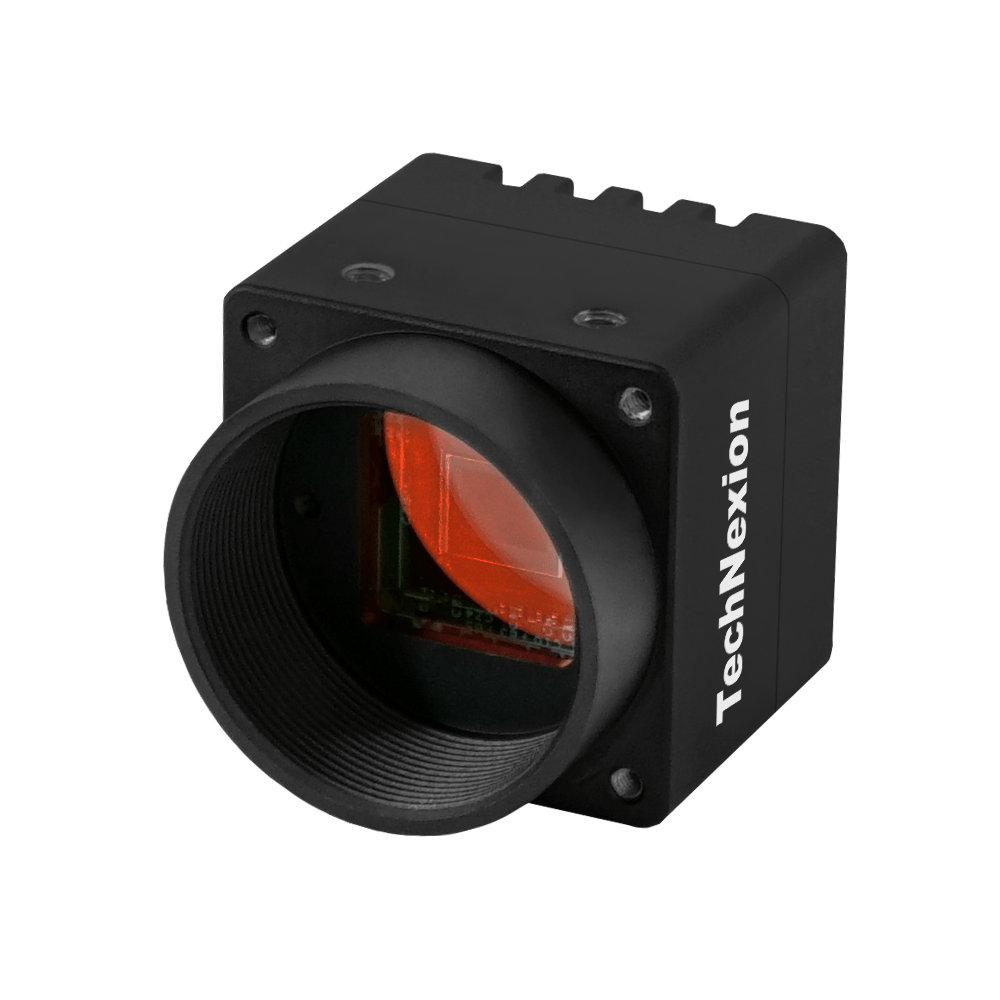

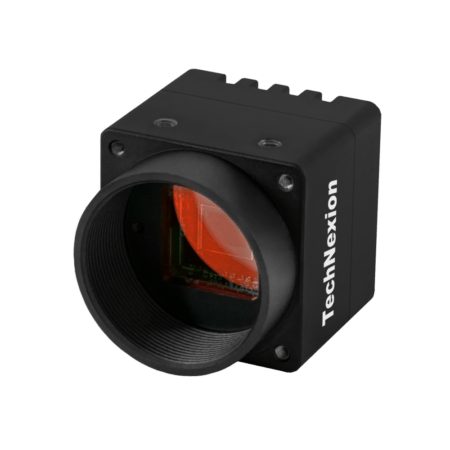

VLS3-AR0822-CB High angle

VIZIONLINK Back

VLS3-AR0822-M-CB-IR

SKU: VLS3AR0822MCBIR Category: FPD-Link III Cameras

More Information

Product Brief

FPDLINK-III IP68 Camera with onsemi AR0822 8MP 4K Mono Rolling Shutter with ISP + IR-Cut Filter with C Mount Body

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0822
Active Pixels	3848 (H) x 2168 (V) = 8MP
Pixel Size	2.0 μm x 2.0 μm
Optical Format	1/2” (Diagonal 8.81 mm)
Shutter Type	Rolling Shutter
Chromaticity	Mono
Illuminated type	Back Side Illuminated (BSI)
Maximum Frame Rate (UYVY)	3840 x 2160 @ 15 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Maximum S/N Ratio	40.5 dB
HDR Support	Yes
Output Format	UYVY

Interface

Connector	FAKRA SMB Jack Z-Code
Serial Link	FPD-Link III

Power Specifications

Supply Voltage	12V ± 5%
Power Consumption	UYVY 3840 x 2160 @ 15 fps ≤ 1.3W
Standby Power	≤ 0.1W Standby

Software Support

Platform Support	NXP i.MX8M Mini / Plus NXP i.MX93 TI Sitara™ AM62 / AM62A / AM67 TI Jacinto™ TDA4VM / AM68 NVIDIA Jetson Nano NVIDIA Xavier NX NVIDIA Orin Nano / NX x86 Intel / AMD
Operation Systems	Linux Yocto
SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Dimensions	29.5(W) x 29.5(H) x 37.5(D) mm
Weight	40 grams
Relative Humidity	10 to 90 %
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Operation Temperature	-30°C to +70℃
Vibration	1 Grms random 5-500Hz hr/axis

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

VLS3-AR0822-CB Block Diagram

Dimensions

VLS3-AR0822-SL Dimension

Spectral Characteristics

AR0822 Spectral Characteristics
