VLS3-AR0144-C-CB-IR

SKU: VLS3AR0144CCBIR Category:

$178.00

Quantity Discount (%) Price
1 $178.00

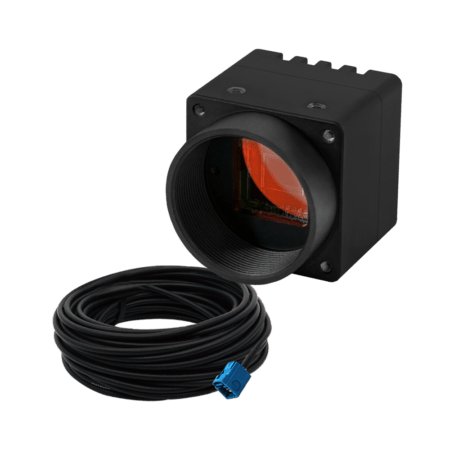

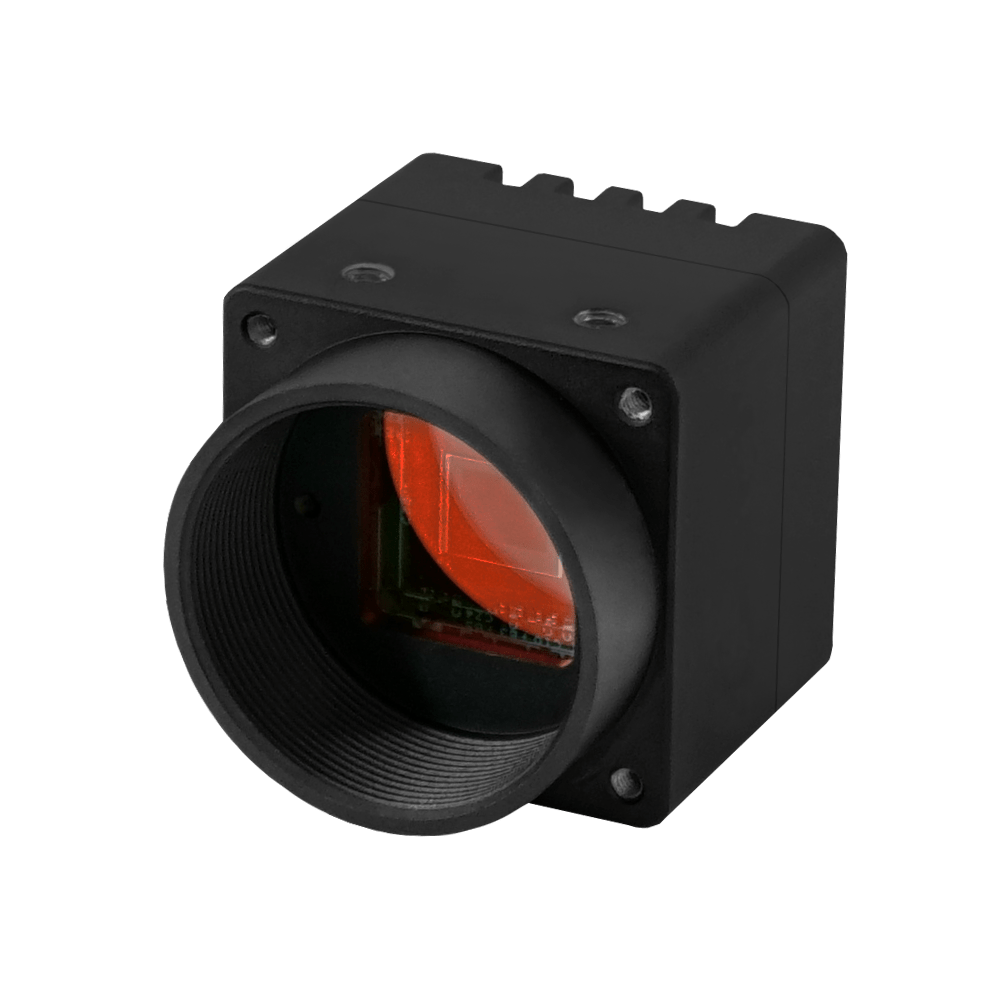

FPDLINK-III IP68 Camera with onsemi AR0144 1MP Color Global Shutter with ISP + IR-Cut Filter with C Mount Body

Specifications

Additional information

CMOS Sensor

onsemi AR0144

Active Pixels

1280 (H) x 800 (V) = 1MP

Pixel Size

3.0 μm x 3.0 μm

Optical Format

1/4” (Diagonal 4.5 mm)

Shutter Type

Global Shutter

Chromaticity

Color

Illuminated type

Front Side Illuminated (FSI)

Maximum Frame Rate (YUV422-UYVY)

1280 x 800 @ 60 fps, 1280 x 720 @ 60 fps, 640 x 480 @ 60 fps

Maximum S/N Ratio

38 dB

Output Format

YUV422-UYVY

Connector

FAKRA SMB Jack Z-Code

Supply Voltage

12V ± 5%

Power Consumption

UYVY 1280 x 800 @ 60 fps ≤ 0.9W

Standby Power

≤ 0.1W Standby

Platform Support

NVIDIA Jetson Orin Nano / NX, NVIDIA Xavier NX, NVIDIA Jetson Nano, NXP i.MX93, NXP i.MX8M Mini / Plus, TI Sitara™ AM62 / AM62A / AM67, TI Jacinto™ TDA4VM / TDA4VH, x86 Intel / AMD

Operation Systems

Linux, Yocto

SDK

VizionViewer™ / VizionSDK

Dimensions

29.5(W) x 29.5(H) x 37.5(D) mm

Weight

40 grams

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

-30°C to +70℃

Vibration

1 Grms random 5-500Hz hr/axis

Certification

Compliant with CE / FCC / RoHS / REACH directives

Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.80.5050

ECCN

EAR99

REACH / RoHS

Yes

Block Diagram

VLS3-AR0144-CB Block Diagram

Dimensions

VLS3-AR0144-CB Dimension

Spectral Characteristics

AR0144 Spectral Characteristics
