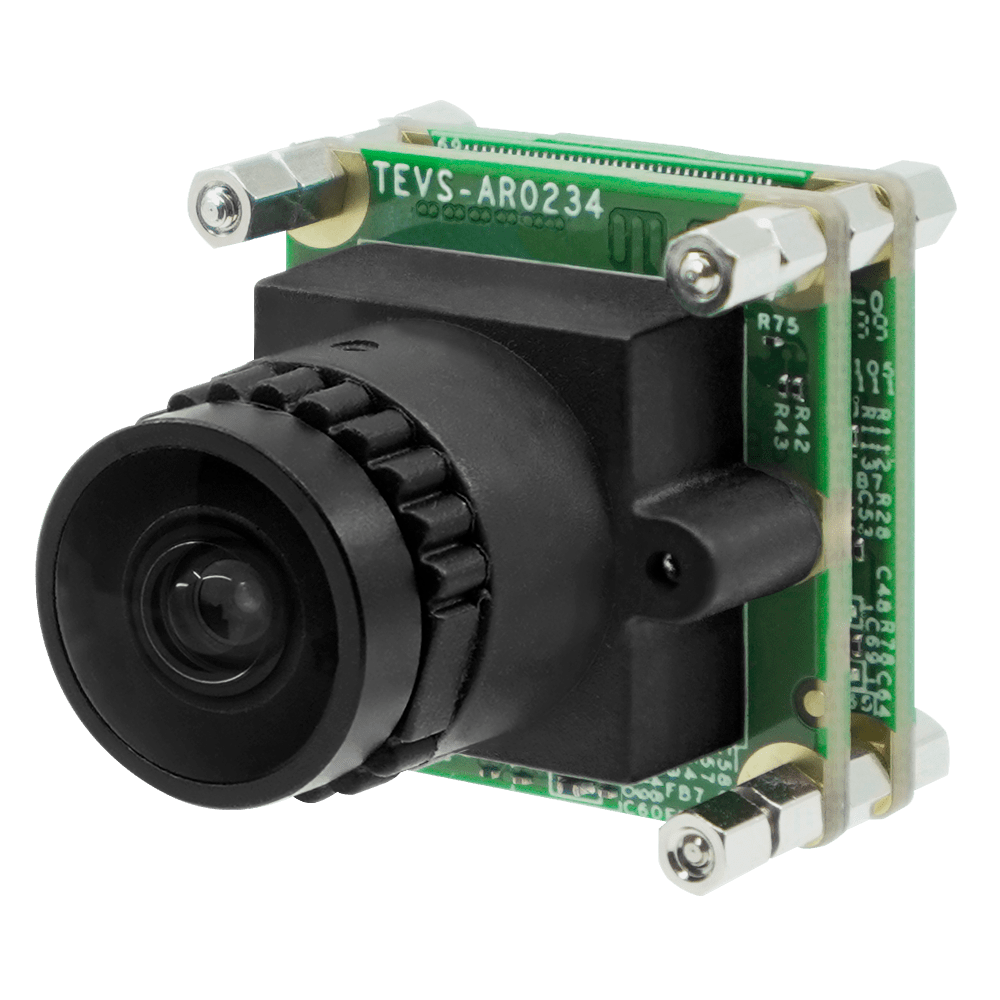

UVLS3-AR0234-SL Wide FOV Right

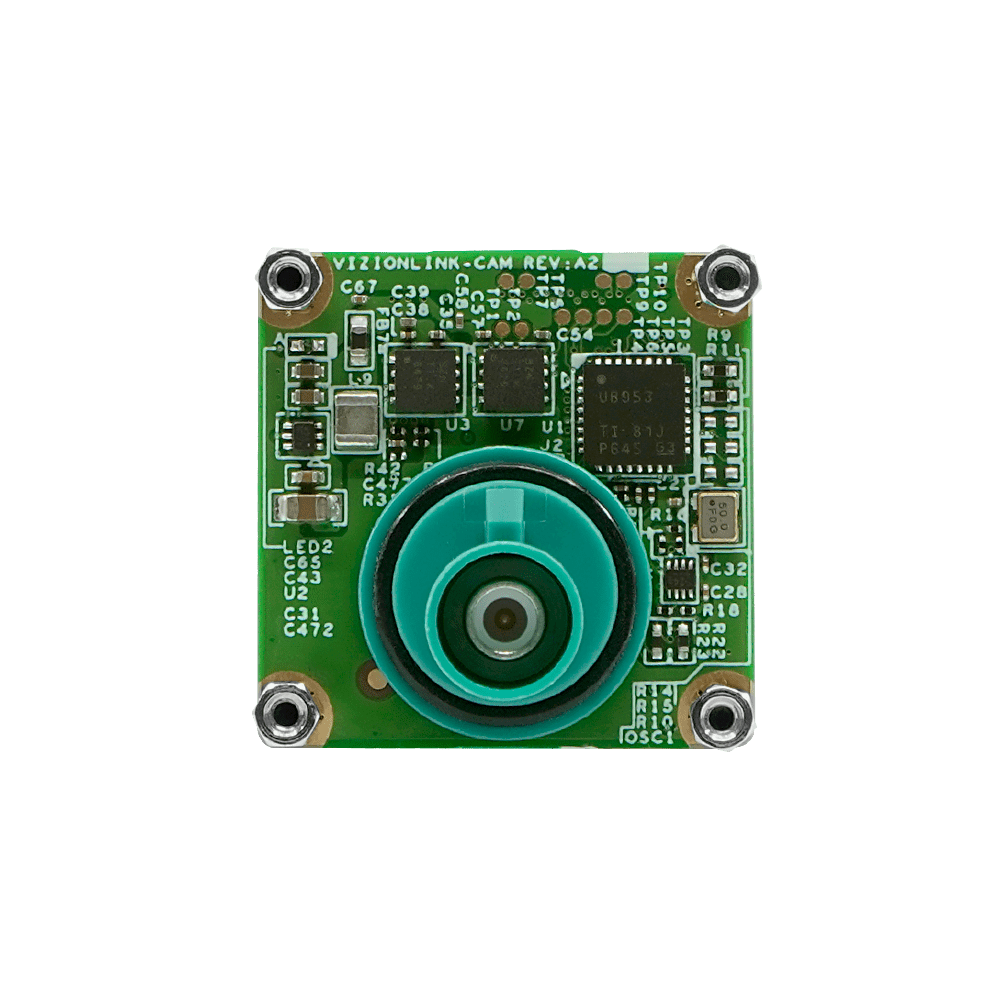

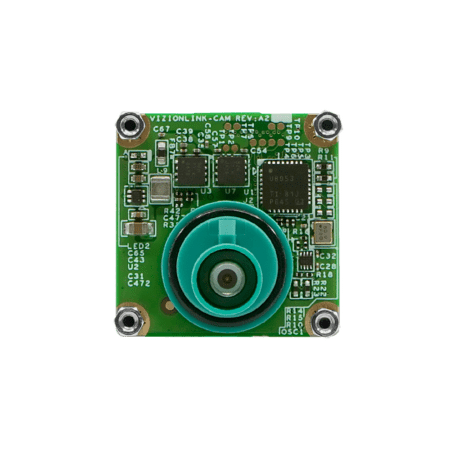

UVLI-AR0234-SL Back

UVLS3-AR0234-C-S128-IR

SKU: UVLS3AR0234CS128IR Category: FPD-Link III Cameras

More Information

Product Brief

FPDLINK-III PCB Board Camera with onsemi AR0234 2MP Full-HD Color Global Shutter with Onboard ISP + 128 Degree M12 Lens with IR-Cut Filter

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0234
Active Pixels	1920 (H) x 1200 (V) = 2.3MP
Pixel Size	3.0 μm x 3.0 μm
Optical Format	1/2.6” (Diagonal 6.8 mm)
Shutter Type	Global Shutter
Chromaticity	Color
Illuminated type	Front Side Illuminated (FSI)
Maximum Frame Rate (UYVY)	1920 x 1200 @ 60 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 120 fps 640 x 480 @ 120 fps
Maximum S/N Ratio	38 dB
Output Format	UYVY

Interface

Connector	FAKRA SMB Jack Z-Code
Serial Link	FPD-Link III

Power Specifications

Supply Voltage	12V ± 5%
Power Consumption	UYVY 1920 x 1200 @ 60 fps ≤ 1.25W
Standby Power	≤ 0.1W Standby

Software Support

Platform Support	x86 Intel / AMD NXP i.MX8M Mini / Plus NXP i.MX93 TI Sitara™ AM62x / AM62A TI Jacinto™ TDA4VM / TDA4VA / TDA4VH NVIDIA Jetson Nano NVIDIA Xavier NX NVIDIA Orin Nano/NX
Operation Systems	Linux Yocto
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	2.87 mm
Aperture	F2.6
Lens D-FOV	146.0°
Lens H-FOV	112.0°
Lens V-FOV	82.0°
Module D-FOV	128.3° ± 5%
Module H-FOV	109.7° ± 5%
Module V-FOV	67.0° ± 5%
TTL	21 mm
BFL	5.27 mm
MOD	0.3 m
Distortion	< – 20.0%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 30.0(D) mm
Weight	20 grams
Relative Humidity	10 to 90 %
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Operation Temperature	-30°C to +70℃
Vibration	1 Grms random 5-500Hz hr/axis

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

UVLS3-AR0234-SL Block Diagram

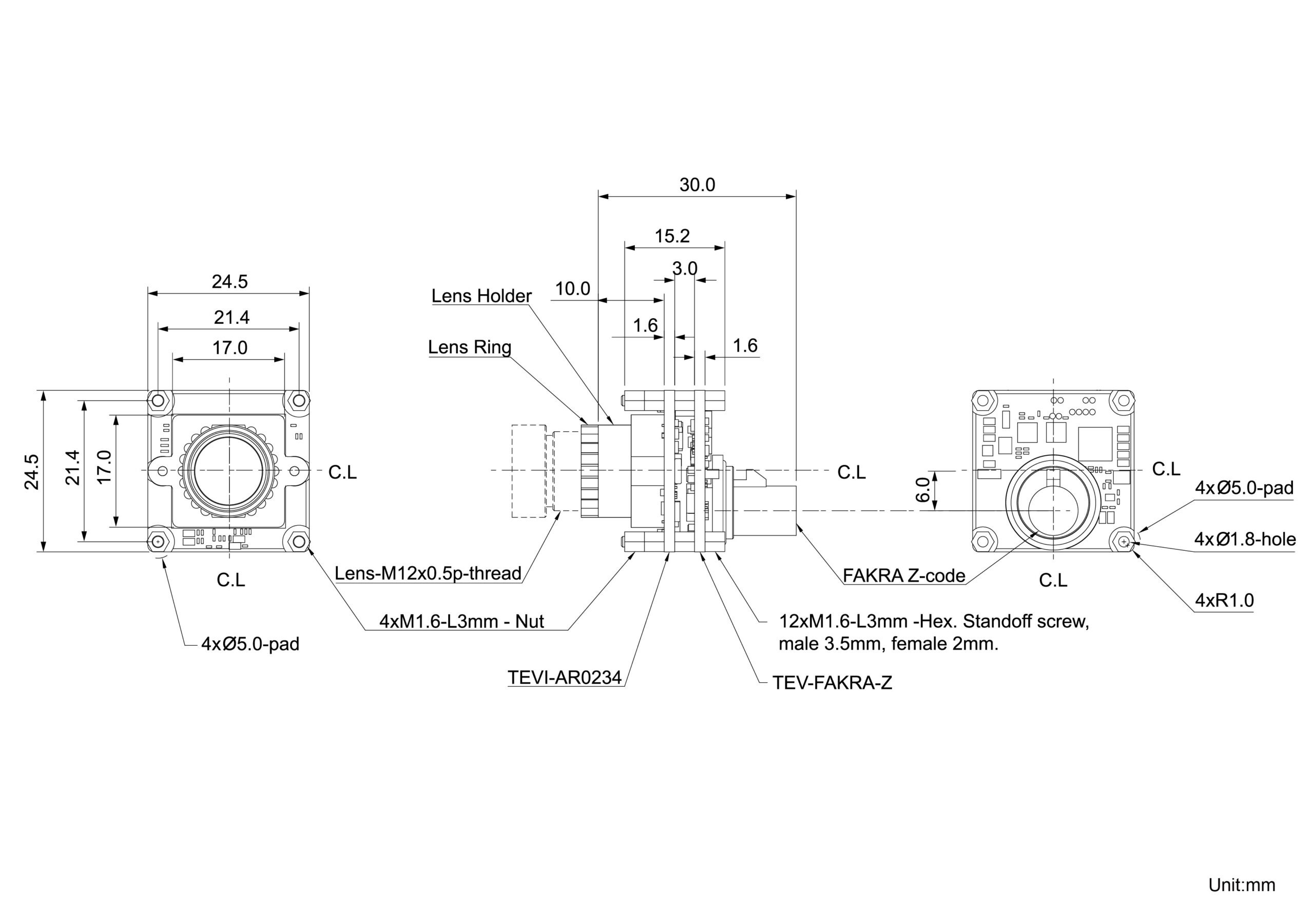

Dimensions

UVLS3-AR0234 Dimensions

Spectral Characteristics

AR0234 Spectral Characteristics
