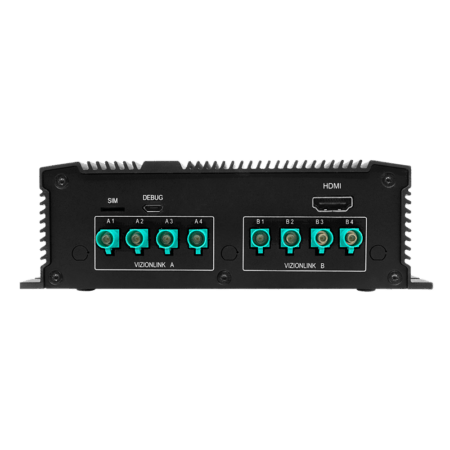

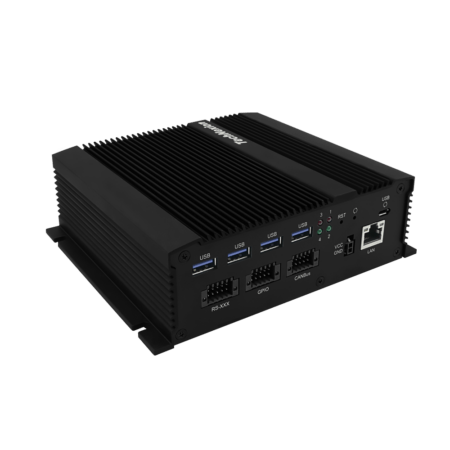

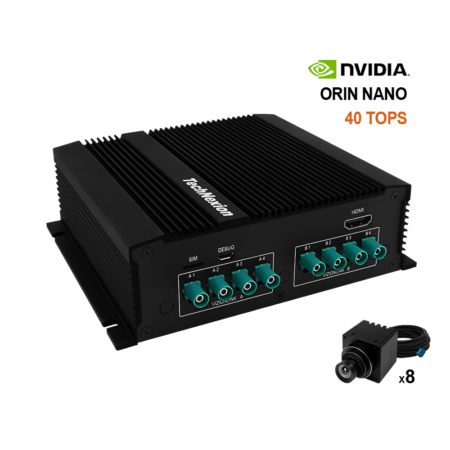

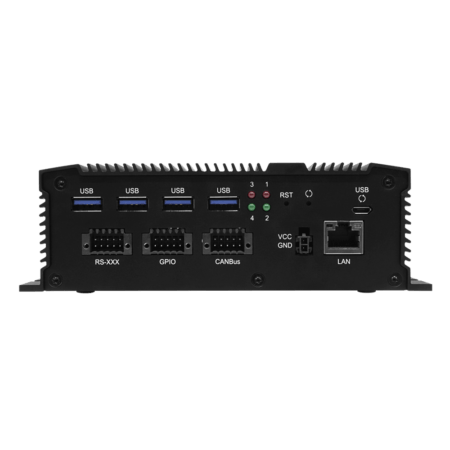

TEK6040-ORIN-NANO

SKU: TEK6040-ORIN-NANO Category:
  • Nvidia Jetson Orin Nano
  • 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
  • 40 TOPS AI Performance
  • Gigabit Ethernet and USB 3
  • UART, CAN, GPIO I/O
  • 8 FPD-Link III Camera supported
  • Comes with Nvidia Jetpack Software pre-installed
  • VizionViewer SDK for easy camera control

Specification

Additional information

Core System
Processor

NVIDIA® Jetson Orin™ Nano

Architecture

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

AI / ML

40 TOPS

Memory

8GB 128-bit LPDDR5 68 GB/s

Storage

NVMe via M.2 Key M 2242 or M 2280

System on Module

Jetson Orin Nano 8GB

Video
GPU Engine

1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

Video decode

11x 1080p30 (H.265)
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)

Video encode

1080p30 supported by 1-2 CPU cores

Environmental and Mechanical
Enclosure Material

Anodized Aluminium

Dimensions

168 (W) x 150 (D) x 55 (H) mm

Weight

960 grams

Relative Humidity

10 to 90 %

Shock

30G half-sine 11 ms duration

Operation Temperature

Industrial: -20°C to +50°C

Vibration

3 Grms random 5-500Hz hr/axis

Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives

More
Weight

960 g

Block Diagram

TEK6040-ORIN-NANO Block Diagram

Dimension

TEK6040-ORIN-NANO Dimension
