EDM1-IMX6PU-R10-E04-BB

Name: EDM1-IMX6PU-R10-E04-BB
Brand: TechNexion
SKU: EDM1IMX6PUR10E04BB
Availability: InStock

SKU: EDM1IMX6PUR10E04BB Category: Clearance

Product Brief

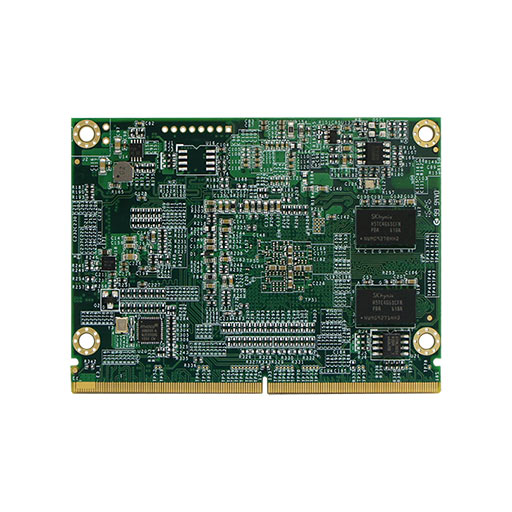

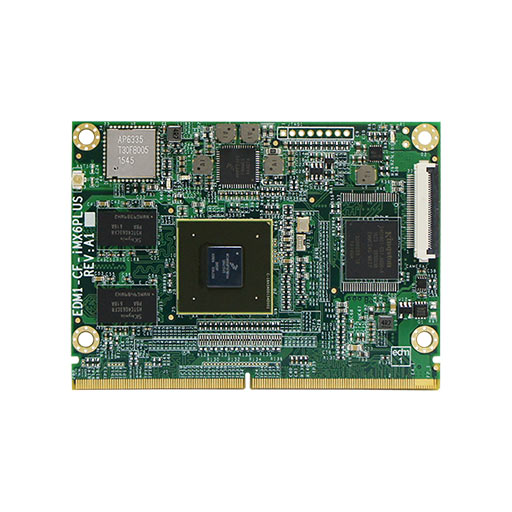

EDM System-on-Module based around NXP i.MX6 DualLite SoC with 1GB of DDR3 memory, 4GB eMMC and BCM43438 Wireless and Bluetooth.

4 in stock

Quantity	Discount (%)	Price
1 - 99	—	$105.40
100+	2.94 %	$102.30

Specifications

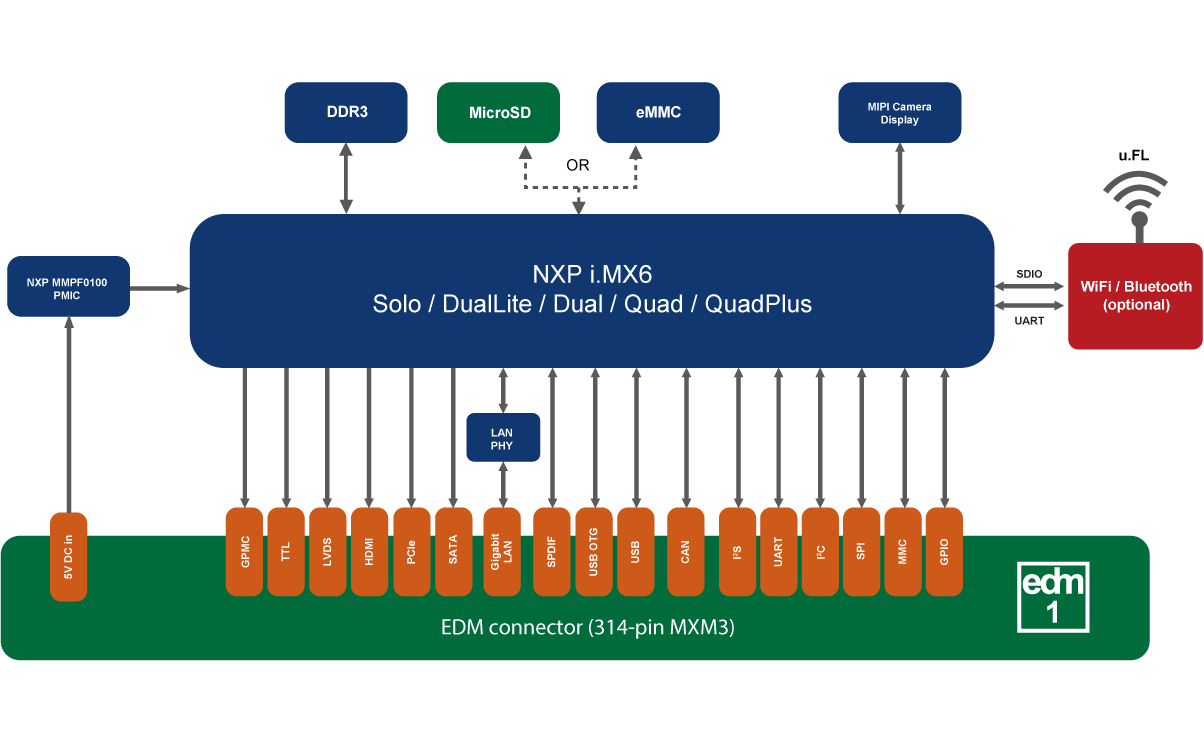

Core System

Processor	NXP i.MX6 Duallite
Processor Speed	1.0 Ghz
Architecture	ARM Cortex-A9
PMIC	NXP MMPF0100
Memory	1GB DDR3
Storage	4GB eMMC

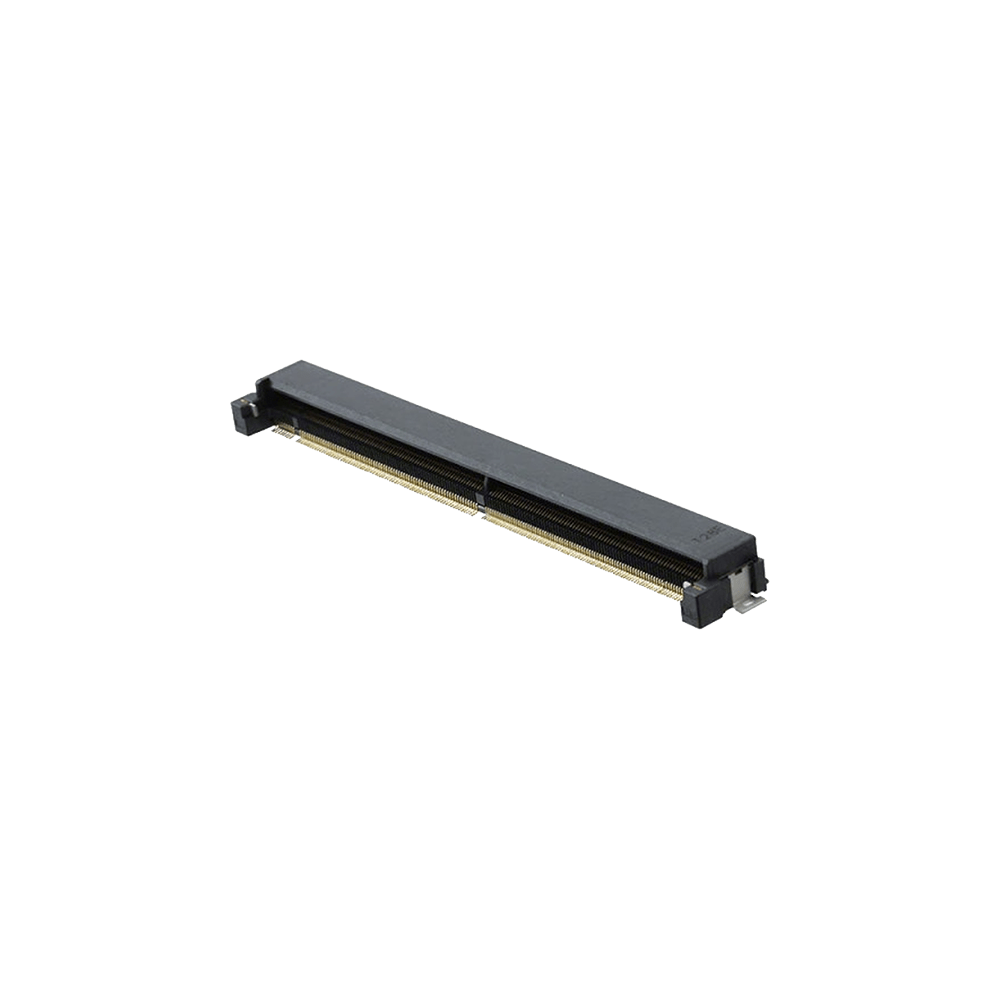

Board-to-Board Connector	EDM connector (314-pin MXM3)
System on Module	EDM SOM
Debug Interface	JTAG Interface by Through-hole

AI / Vision Capabilities

Camera	MIPI CSI (2 lanes)

Connectivity

Signaling

I/O	HDMI LVDS RGB TTL LAN PCIe USB USB OTG I²S SPDIF SDIO CAN UART SPI I²C GPMC PWM GPIO

Video

GPU Engine	Vivante GC320 (2D Composition) Vivante GC880 (Solo/DualLite)
Video decode	1080p30 + D1 (Solo/DualLite)
Video encode	BP/Dual 720p

Audio

Audio Codec	On carrier board
Audio Interface	I²S (2 channel)

Power Specifications

Power Input	5V DC +/-5%
Power Consumption	Depending on Configuration

Software Support

Standard Support	Linux Yocto Android Ubuntu
Extended Support	Commercial Linux

Environmental and Mechanical

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives
Bluetooth Logo	QDID 63292 (Bluetooth 4.1)

Commercial Information

Brand	TechNexion
SKU Number	EDM1IMX6PUR10E04BB
Country of Origin	Taiwan
HTSN	8473.30.1180
ECCN	5A992.c Mass Market
CCATS	740.17(b)(1) Mass Market (No License Required)
REACH / RoHS	Yes
