| Camera Information |
|---|
| CMOS Sensor | onsemi AR0145
|
|---|
| Active Pixels | 1280 (H) x 800 (V) = 1MP
|
|---|
| Pixel Size | 2.8 μm x 2.8 μm
|
|---|
| Illuminated type | Front Side Illuminated (FSI)
|
|---|
| Maximum S/N Ratio | 38 dB
|
|---|
| Optical Format | 1/4.3” (Diagonal 4.23 mm)
|
|---|
| Shutter Type | Global Shutter
|
|---|
| Chromaticity | Color / Mono
|
|---|
| Maximum Frame Rate (YUV422-UYVY) | 1280 x 800 @ 115 fps
1280 x 720 @ 115 fps
640 x 480 @ 115 fps
|
|---|
| Maximum Frame Rate (MJPEG) | 1280 x 720 @ 115 fps
1280 x 800 @ 115 fps
640 x 480 @ 115 fps
|
|---|
| Output Format | UYVY
MJPEG(JPG)
|
|---|
|
| Interface |
|---|

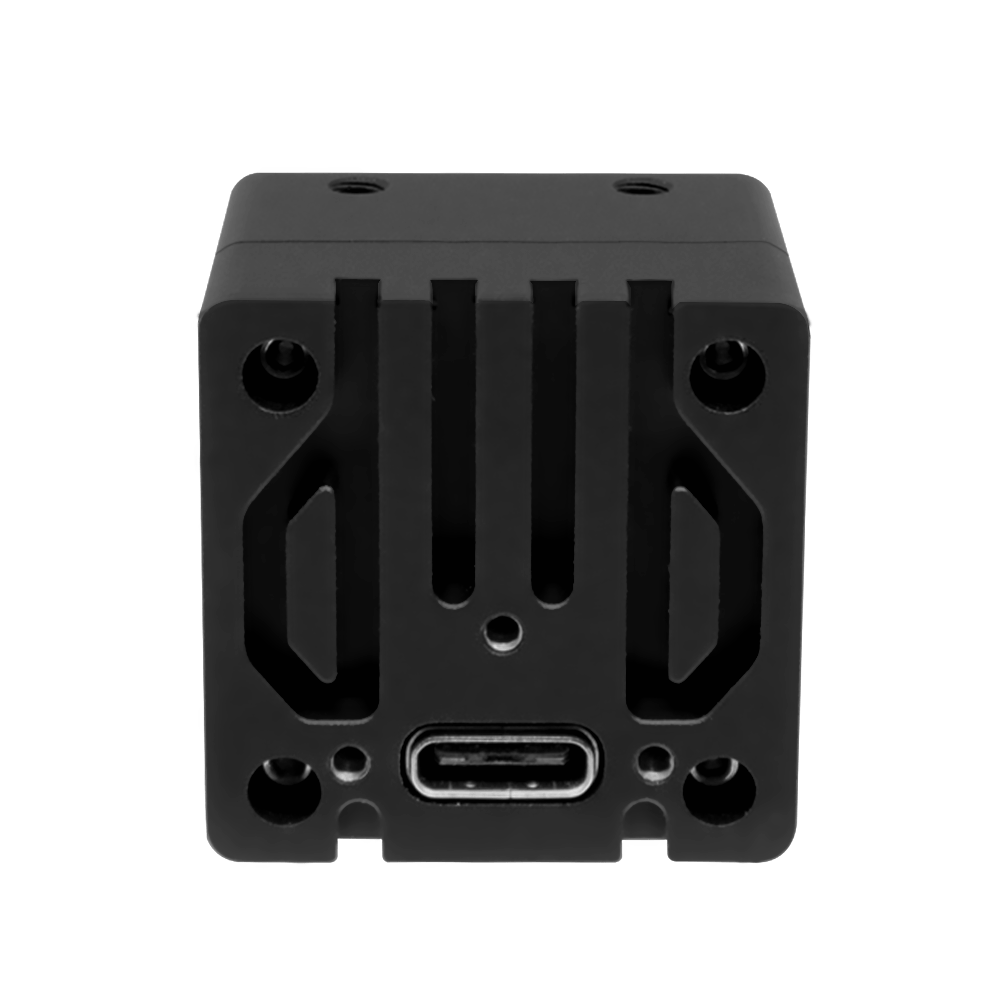

| Connector | USB Type-C 5 Gbps
|
|---|
|
| Power Specifications |
|---|
| Supply Voltage | 5V ± 5%
|
|---|
| Power Consumption | 1280 x 800 @ 115 fps ≤ 1W
|
|---|
| Standby Power | ≤ 0.1W Standby
|
|---|
|
| Software Support |
|---|
| Operation Systems | UVC Plug-and-play
Windows 10/11
Linux
Yocto
|
|---|
| SDK | VizionViewer™ / VizionSDK
|
|---|
|
| Motion Sensors |
|---|
| IMU | ST Microelectronics LSM6DSO16IS
|
|---|
| Accelerometer | 3-axis accelerometer with selectable full scale: ±2/±4/±8/±16 g
|
|---|
| Gyroscope | 3-axis gyroscope with selectable full scale: ±125/±250/±500/±1000/±2000 dps
|
|---|
| Temperature Sensor | Embedded temperature sensor
|
|---|
|
| Environmental and Mechanical |
|---|
| Dimensions | 29.5(W) x 29.5(H) x 33.7(D) mm
|
|---|
| Weight | 39 grams
|
|---|
| MTBF | 50,000 Hours
|
|---|
| Shock | 15G half-sine 11 ms duration
|
|---|
| Vibration | 1 Grms random 5-500Hz hr/axis
|
|---|
| Relative Humidity | 10 to 90 %
|
|---|
| Operation Temperature | -30°C to +70℃
|
|---|
|
| Certification and Compliance |
|---|
| Certification | Compliant with CE / FCC / RoHS / REACH directives
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8525.89.5050
|
|---|
| ECCN | EAR99
|
|---|
| REACH / RoHS | Yes
|
|---|
|
