PICO-PI-IMX8M

  • NXP i.MX 8M Quad applications processor
  • Up to 4 Cortex-A53 1.5 GHz processors
  • Armv8 64-Bit CPU cores
  • Certified Wi-Fi 5 and Bluetooth LE

Order this product

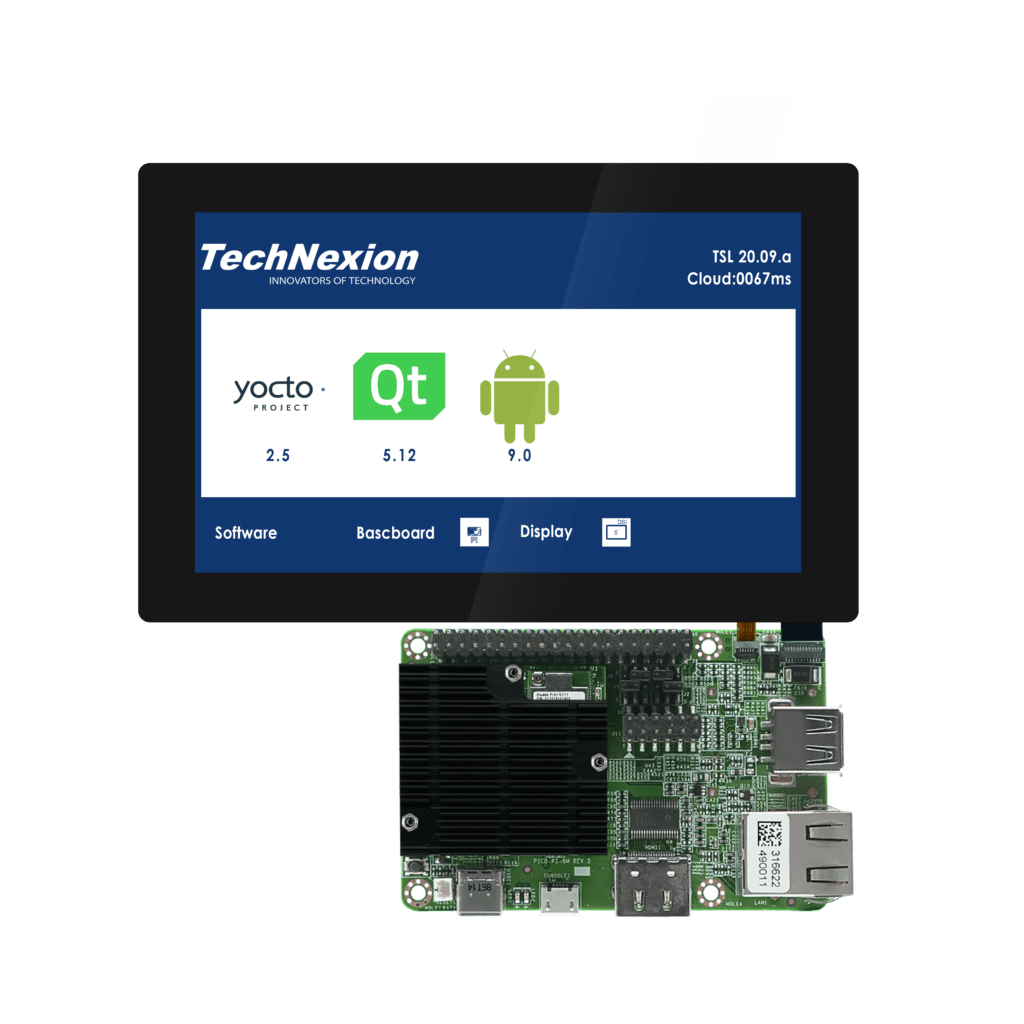

panel-for-imx8m

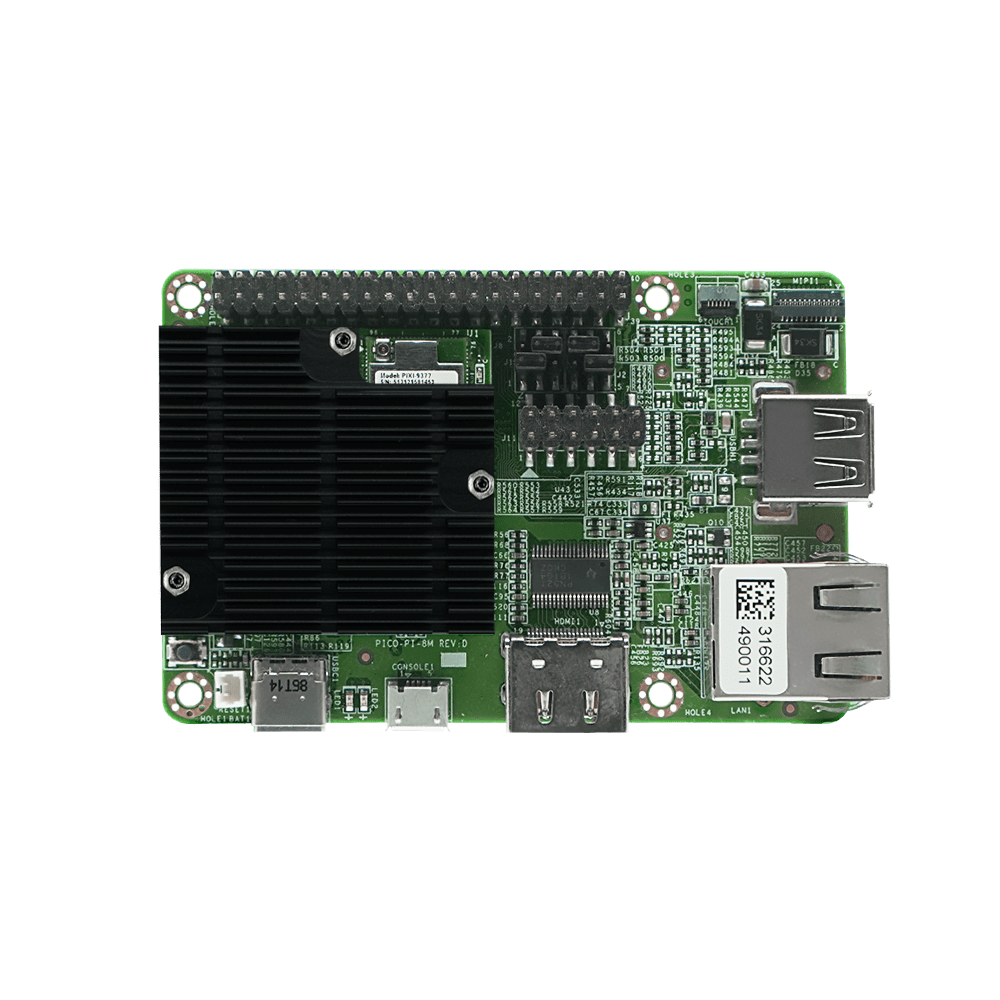

PICO-PI-IMX8M TOP

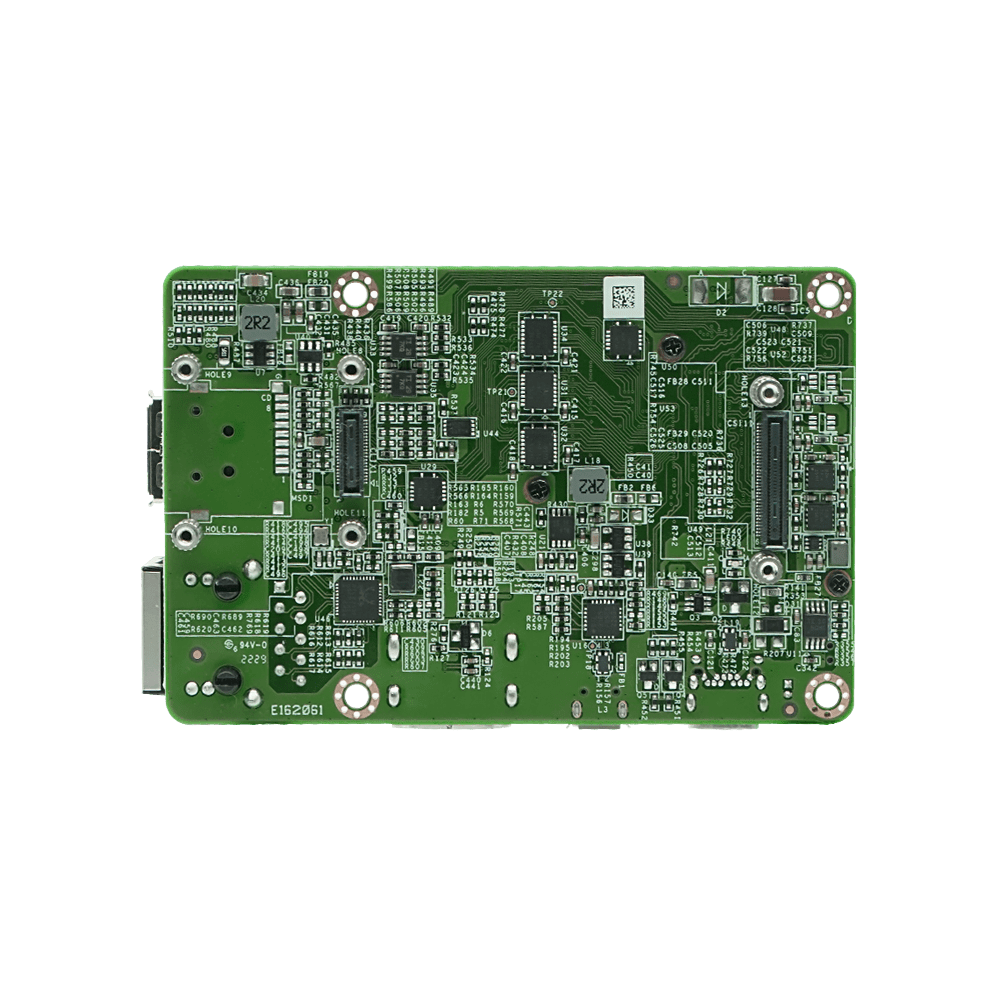

PICO-PI-IMX8M BACK

Highlights

64-bit Performance

Low power NXP i.MX8M mini 64-bit Cortex-A53 comes with a Full-HD multimedia user experience for ubiquitous IIOT and Edge applications.

I/O

Rich I/O is available for extension and connection.

Camera Integration

Machine Vision camera modules are ready off-the-shelf from TechNexion. Seamless integration and optimization from the first day of your project.

Certified Connectivity

Simplify your design with pre-certified wireless options - from the module to the antennas - and make end-device certification processes more predictable while cutting costs.

Sortware Platform

We advocate Open Source Software and support Linux, Ubuntu, Yocto and Android. Perfect solutions to success can be tailored easily.

Interfaces

Packed with a wide array of interfaces. Our System-on-Modules are as a Swiss Army knife when connecting over serial port, CAN bus, I2C, SPI or USB.

Machine Learning AI

The integrated neural network processing unit (NPU) was designed from the ground up to execute deep learning inference, and to outperform CPU- and GPU-based solutions in the same power range by several times.

Pin Compatibility

Scalability at it's finest is what sets TechNexion System-on-Modules apart. A single carrier board can host from a low-power i.MX6UL/ULL to a powerful SOC that the i.MX8M or i.MX8M Mini brings to the PICO System-on-Module family.

Core System
Processor

NXP i.MX8M Quad

Processor Speed

1.3 Ghz

Architecture

ARM Cortex-A53 + M4

PMIC

ROHM BD71847

Memory

Upto 4GB LPDDR4

Storage

16GB eMMC (default)

Board-to-Board Connector

PICO 70-pin Hirose connectors

System on Module

PICO SOM

Debug Interface

Micro USB debug

Connectivity
Network LAN

1x Atheros AR8031 Gigabit LAN

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector

Signaling
I/O

HDMI
LAN
MIPI CSI
MIPI DSI
PCIe
USB
USB OTG
I²S
UART
SPI
I²C
PWM
GPIO

Video
GPU Engine

Vivante GC7000Lite

Video decode

4K UltraHD HDR 4Kp60, H.265 VP9

Camera

MIPI CSI (4 lanes)

Audio
Audio Interface

I²S (2 channel)

Power Specifications
Power Consumption

Depending on Configuration

Operating Systems
Standard Support

Linux
Yocto
Android
Ubuntu

Extended Support

Boot2Qt
Commercial Linux

External Connectors
External Display

1x HDMI

Network

1x RJ45

USB

1x USB 2.0 Host
1x USB 2.0 OTG (Type-C)

Buttons

1x Reset

Environmental and Mechanical
Dimensions

85 (W) x 56 (H) x 25 (D) mm

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +60° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

70 grams

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)
QDID 193238 (Bluetooth 5)

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

YES

PICO-PI-IMX8M Block Diagram
PICO-PI-IMX8M Dimensions
