PICO-PI-IMX6

  • NXP i.MX6 Solo/DualLite/Quad applications processor
  • Performance scalable Cortex-A9 processor
  • Built-in powerful GPU capable for dual-display applications at Full-HD resolutions
  • Linux Mainline Support

Order this product

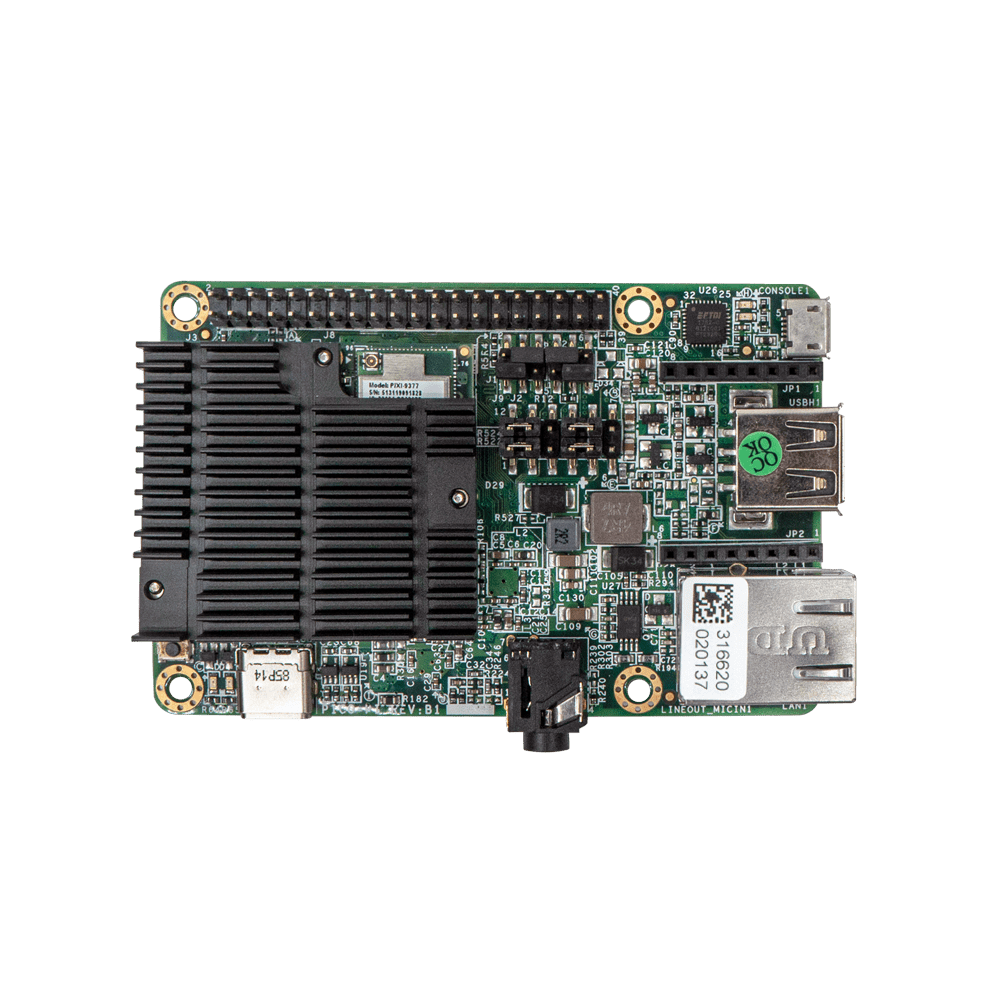

PICO-PI-IMX6 TOP

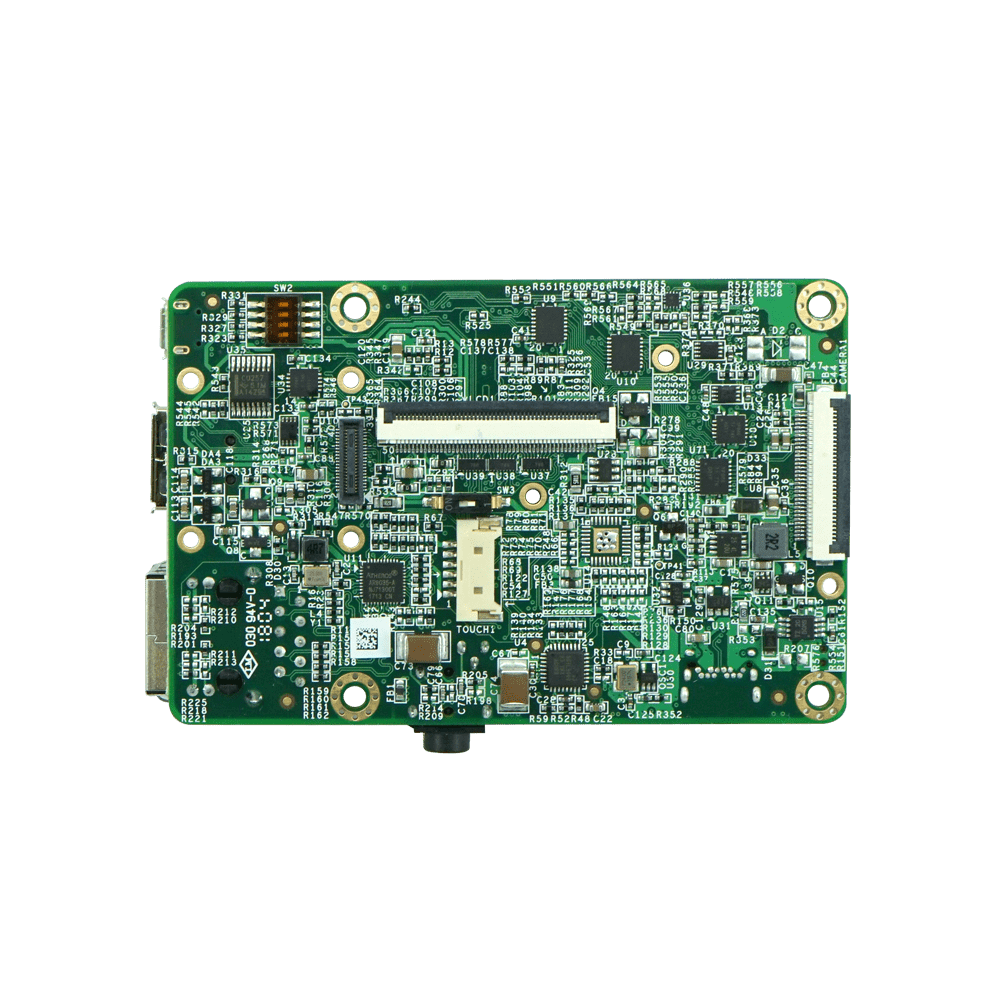

PICO-PI-IMX6 BACK

Highlights

32-bit Processing A9

Powered by NXP i.MX 6 series processor in multicore ARM Cortex-A9 architecture, cost-effective for a graphical user interface while providing sufficient power for typical industrial and multimedia applications.

Cost Saving

Scalability with a single software BSP is what the NXP i.MX Family is famous for. Keep your investment to a minimum and easily scale up or down to meet the product requirements.

I/O

Rich I/O is available for extension and connection.

Camera Integration

Machine Vision camera modules are ready off-the-shelf from TechNexion. Seamless integration and optimization from the first day of your project.

Certified Connectivity

Simplify your design with pre-certified wireless options - from the module to the antennas - and make end-device certification processes more predictable while cutting costs.

Sortware Platform

We advocate Open Source Software and support Linux, Ubuntu, Yocto and Android. Perfect solutions to success can be tailored easily.

Interfaces

Packed with a wide array of interfaces. Our System-on-Modules are as a Swiss Army knife when connecting over serial port, CAN bus, I2C, SPI or USB.

Pin Compatibility

Scalability at it's finest is what sets TechNexion System-on-Modules apart. A single carrier board can host from a low-power i.MX6UL/ULL to a powerful SOC that the i.MX8M or i.MX8M Mini brings to the PICO System-on-Module family.

Core System
Processor

NXP i.MX6 Duallite
NXP i.MX6 Quad

Architecture

ARM Cortex-A9

Memory

Upto 1GB DDR3L

Storage

16GB eMMC (default)

Board-to-Board Connector

Edison compatibile connector
PICO 70-pin Hirose connectors

System on Module

PICO SOM

Debug Interface

Micro USB debug

Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector

Signaling
I/O

RS232
RGB TTL
LAN
MIPI CSI
MIPI DSI
USB
USB OTG
I²S
UART
SPI
I²C
PWM
GPIO

Video
GPU Engine

Vivante GC880 (DualLite)
Vivante GC2000 (Quad)
Vivante GC320 (2D Composition)
Vivante GC355 (Quad)

Video decode

1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Quad)

Video encode

1080p30 H.264
BP/Dual 720p

Camera

MIPI CSI (4 lanes)

Audio
Audio Codec

NXP SGTL5000

Audio Interface

I²S (2 channel)

Audio Connectors

CTIA compliant 3.5mm audio jack

Power Specifications
Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration

Power Connector

USB OTG (Type-C)

Operating Systems
Standard Support

Linux
Yocto
Android
Ubuntu

Environmental and Mechanical

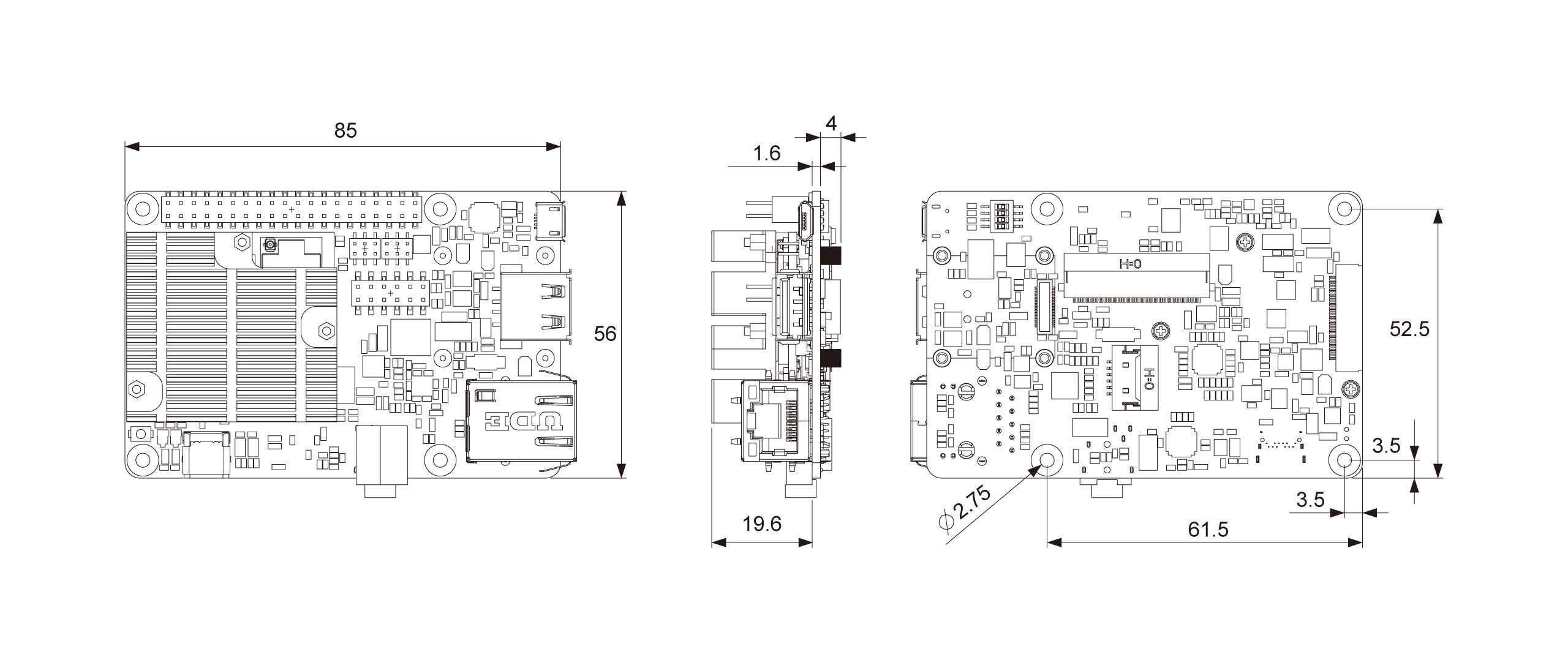

Dimensions

85.6 (W) x 56.5 (H) x 17.5 (D) mm

Relative Humidity

10 to 90 %

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +60° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

47 grams

External Connectors
Network

1x RJ45

USB

1x USB 2.0 Host
1x USB 2.0 OTG (Type-C)

Buttons

1x Reset

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)
QDID 150839 (Bluetooth 5)

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

YES

PICO-PI-IMX6 Block Diagram
