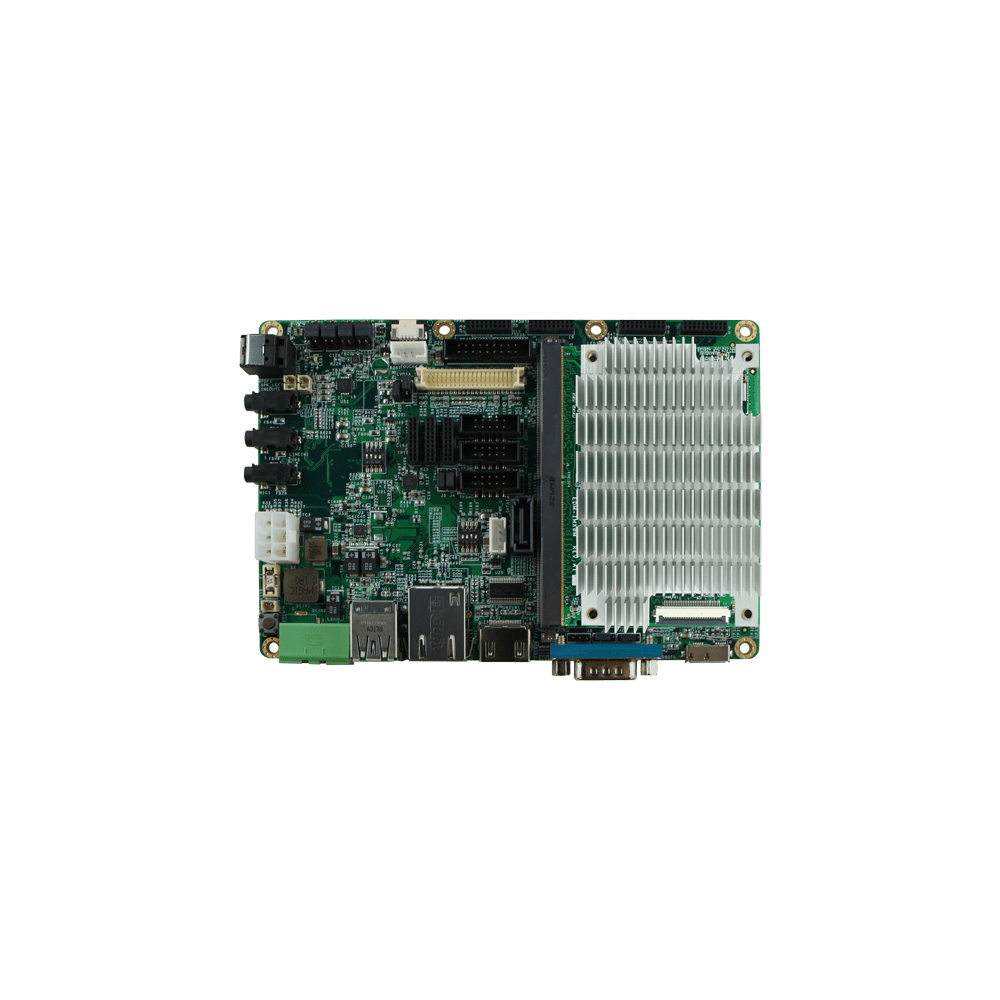

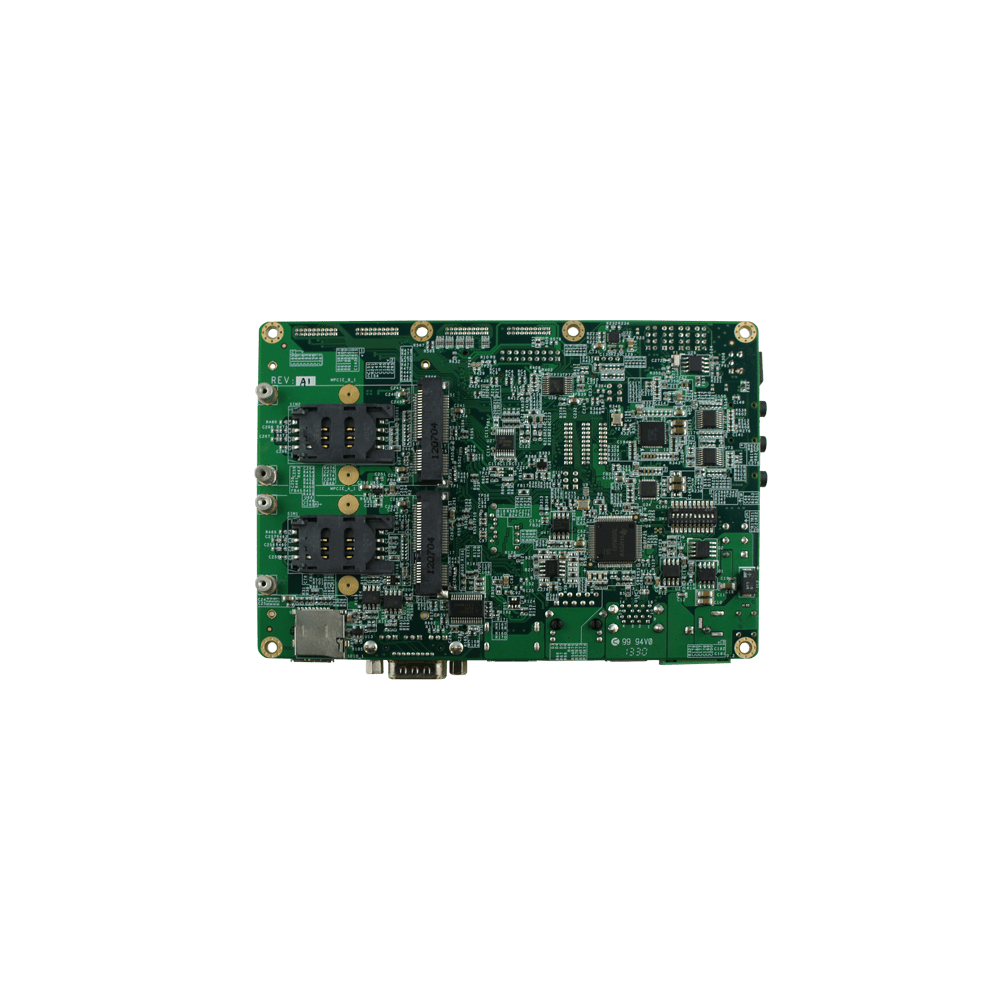

Highlights

Core System
Processor

NXP i.MX6 Duallite
NXP i.MX6 Quad

Processor Speed

1.0 Ghz

Architecture

ARM Cortex-A9

PMIC

NXP MMPF0100

Memory

Upto 2GB DDR3

Storage

16GB eMMC (default)

System on Module

EDM SOM

Debug Interface

JTAG Interface by Through-hole

Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector

Signaling
I/O

RS232
HDMI
LVDS
RGB TTL
LAN
PCIe
SATA
USB
USB OTG
I²S
SPDIF
SDIO
CAN
SPI
I²C
GPIO

Video
GPU Engine

Vivante GC880 (DualLite)
Vivante GC2000 (Quad)

Video decode

1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Quad)

Video encode

BP/Dual 720p

Audio
Audio Codec

NXP SGTL5000
TI TLV320AIC23B

Audio Connectors

1x 3.5mm jack Microphone
1x 3.5mm jack Stereo Audio in
1x 3.5mm jack Stereo Audio out
S/PDIF (optical)

Power Specifications
Power Input

12V DC +/-5%

Power Consumption

Depending on Configuration

Power Connector

2-pin 5.08mm Terminal Block 2EHDRM-02P

Operating Systems
Standard Support

Linux
Yocto
Android
Ubuntu

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with CE / FCC / RoHS / REACH directives

Environmental and Mechanical
Enclosure Material

Metal

Dimensions

161 (W) x 110 (H) x 40 (D) mm

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +60° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

510 grams

Expansion Interfaces
Expansion Slots

2x mini-PCIe with SIM cardslot

External Connectors
External Display

1x HDMI

Network

1x RJ45

USB

1x USB 2.0 OTG
2x USB 2.0 Host

Serial Port

1x RS-232/422/485

SD Cardslot

1x MicroSD Card Slot

Shop Data
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

Mass Market (No License Required)

REACH / RoHS

YES

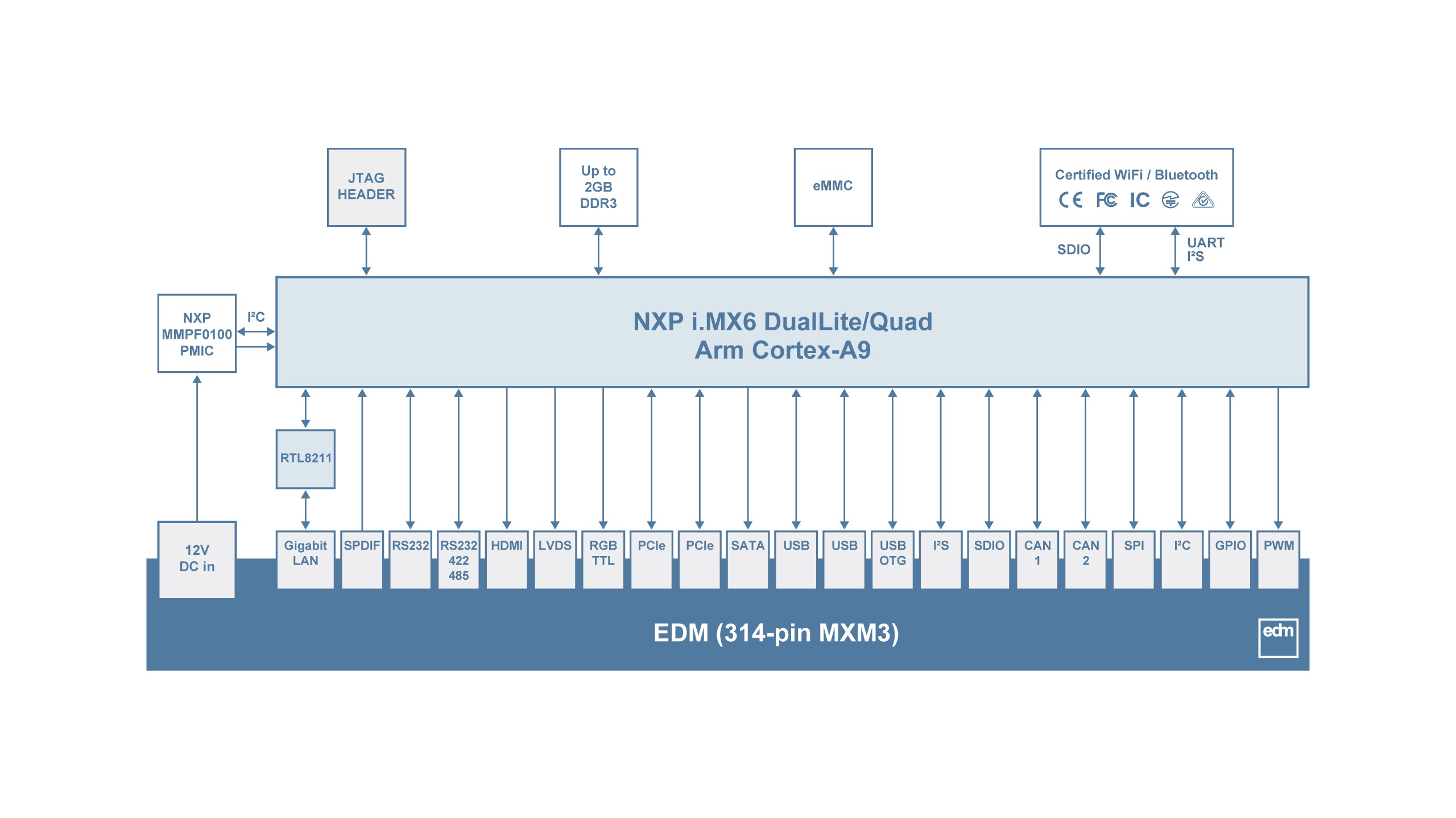

EDM1-IMX6DL-DEV Block Diagram

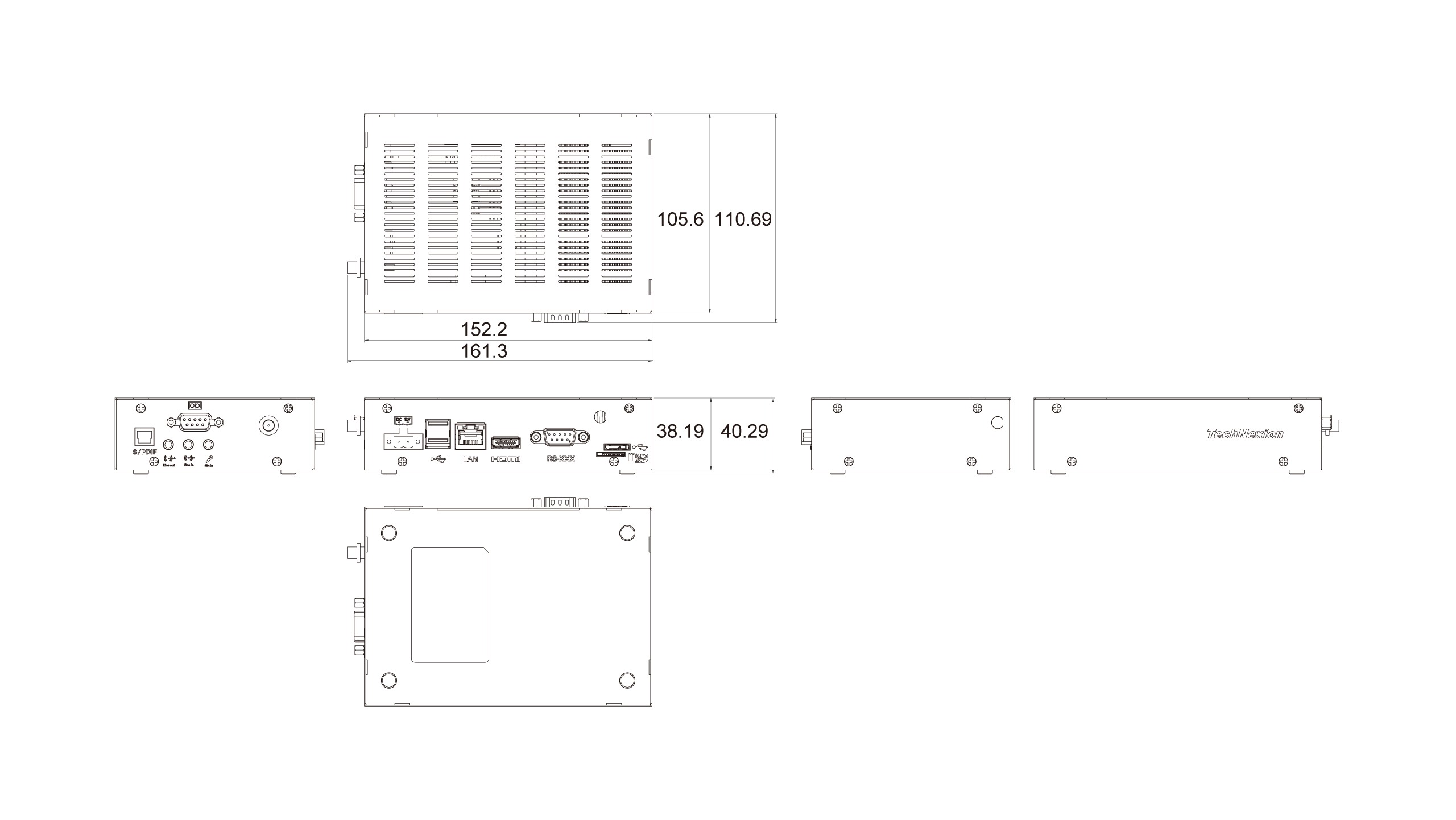

EDM1-IMX6DL-DEV Dimensions
