| Core System |
|---|
| Processor | NXP i.MX93
|
|---|
| Architecture | Arm Cortex A55 + Cortex M33
|
|---|
| PMIC | NXP PCA9451
|
|---|
| Memory | Upto 2GB LPDDR4x
|
|---|
| Storage | 32GB eMMC (default)
|
|---|
| Board-to-Board Connector | 260-pin DDR4 SO-DIMM
|
|---|
| System on Module | EDM SOM
|
|---|
| Debug Interface | UART Interface by Through-hole
|
|---|
|
| AI / Vision Capabilities |
|---|
| NPU / AI | NPU Ethos U-65 0.5 TOPS
|
|---|
| Camera | MIPI CSI (2 lanes)
|
|---|
|
| Connectivity |
|---|
| Network LAN | 1x Realtek RTL8211F
|
|---|
| Wi-Fi | NXP IW416 Wi-Fi 4 – 802.11 a/b/g/n (optional)
|
|---|
| Bluetooth | NXP IW416 Bluetooth (optional)
|
|---|
| Antenna | MHF4 connector (optional)
|
|---|
|
| Signaling |
|---|
| LVDS | 1x Single Channel LVDS
|
|---|
| MIPI DSI | 1x
|
|---|
| MIPI CSI2 | 1x
|
|---|
| LAN | 1x
|
|---|
| USB 2.0 | 2x
|
|---|
| I²S | 1x
|
|---|
| UART | 2x
|
|---|
| I²C | 3x
|
|---|
| SDIO/SD/MMC | 1x SDIO
|
|---|
| PWM | 1x
|
|---|
| RGMII | 1x RGMII compatible with GPIO
|
|---|
|
| Video |
|---|
| GPU Engine | PXP – Hardware Compositor
|
|---|
|
| Audio |
|---|
| Audio Codec | On carrier board
|
|---|
| Audio Interface | I²S
|
|---|
|
| Power Specifications |
|---|
| Power Input | 5V DC +/-5%
|
|---|
| Power Consumption | Depending on Configuration
|
|---|
|
| Software Support |
|---|
| Standard Support | Linux
Yocto
Debian
|
|---|
|
| Environmental and Mechanical |
|---|

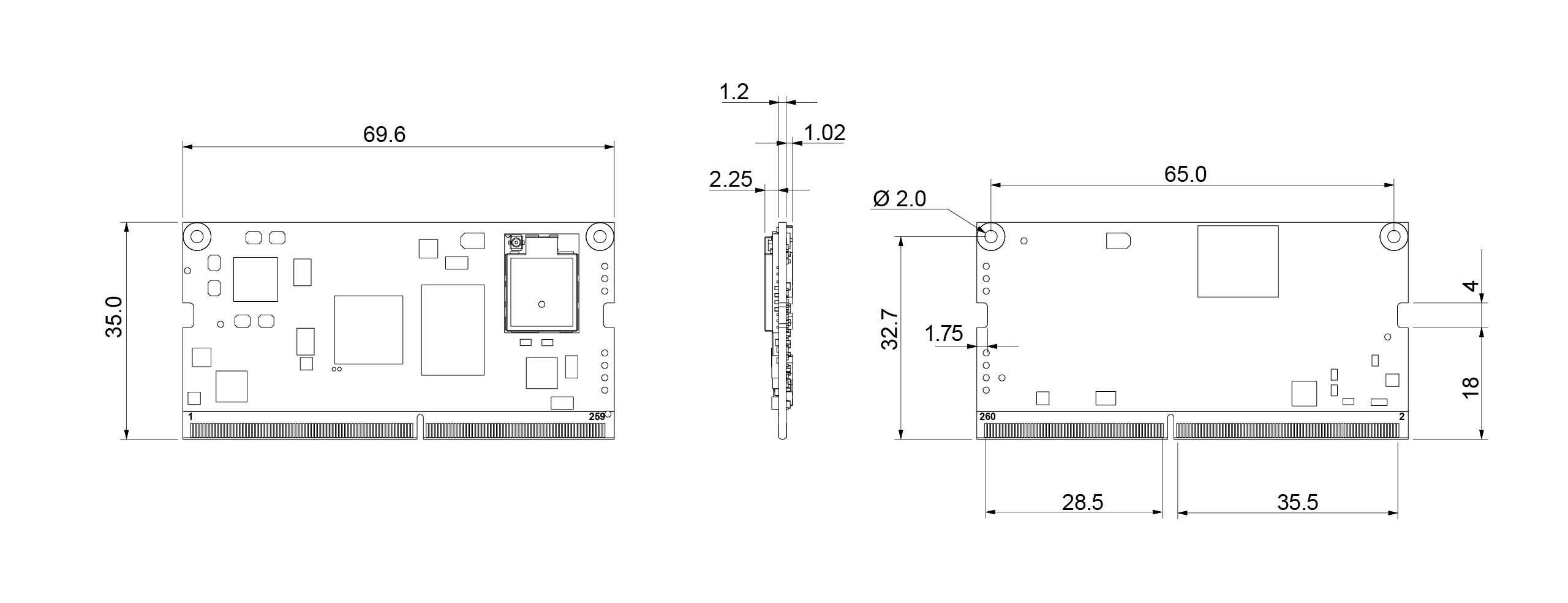

| Dimensions | 69.6 (W) x 35 (H) x 4.47 (D) mm
|
|---|
| Weight | 8 grams
|
|---|
| Form Factor | EDM
|
|---|
| MTBF | 100,000+ Hours
|
|---|
| Shock | 15G half-sine 11 ms duration
|
|---|
| Vibration | 1 Grms random 5-500Hz hr/axis
|
|---|
| Relative Humidity | 10 to 90 %
|
|---|
| Operation Temperature | Commercial: 0°C to +60°C
Industrial: -40°C to +85°C
|
|---|
|
| Certification and Compliance |
|---|
| USA | FCC ID: 2AKZA-IW416
|
|---|
| Canada | IC: 22364-IW416
|
|---|
| European Union | EN 55032 / EN 55035
EN 300 328 v2.2.2
EN 301 893 v2.1.1
|
|---|
| Japan | TELEC: 201-230590
|
|---|
| Australia / New Zealand | RCM Compliant
|
|---|
| Certification | Compliant with RoHS / REACH directives
|
|---|
| Bluetooth Logo | QDID 218991 (Bluetooth 5.2)
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8525.89.5050
|
|---|
| ECCN | EAR99
|
|---|
| CCATS | 740.17(b)(1) Mass Market (No License Required)
|
|---|
| REACH / RoHS | Yes
|
|---|
|
