| Core System |
|---|
| Processor | NXP i.MX95
|
|---|
| Architecture | 6x Arm Cortex-A55 + Arm Cortex-M33 + Arm Cortex-M7
|
|---|
| PMIC | NXP MPF0900
NXP MPF5301
NXP MPF5302
|
|---|
| Memory | Upto 16GB LPDDR5x
|
|---|
| Storage | 32GB eMMC (default)
|
|---|
| Board-to-Board Connector | 260-pin DDR4 SO-DIMM
|
|---|
| System on Module | EDM SOM
|
|---|
| Debug Interface | UART Interface by Through-hole
|
|---|
|
| AI / Vision Capabilities |
|---|
| NPU / AI | 8 eTOPS @ 1 GHz
|
|---|
| Camera | MIPI CSI (4 lanes)
|
|---|
|
| Connectivity |
|---|
| Network LAN | 1x Realtek RTL8211
|
|---|
| Wi-Fi | NXP IW611 Wi-Fi 6 – 802.11 a/b/g/n/ac/ax (optional)
|
|---|
| Bluetooth | NXP IW611 Bluetooth (optional)
|
|---|
| Antenna | MHF4 connector (optional)
|
|---|
|
| Signaling |
|---|
| LVDS | 1x Dual Channel LVDS (up to 1920×1080)
|
|---|
| MIPI DSI | 1x MIPI DSI or 1x MIPI CSI-2
|
|---|
| MIPI CSI2 | 1x
|
|---|
| LAN | 1x
|
|---|
| PCIe | 2x (Gen 3×1)
|
|---|
| USB 3.1 | 1x (Gen 1)
|
|---|
| USB 2.0 | 1x
|
|---|
| I²S | 2x
|
|---|
| CAN | 2x
|
|---|
| UART | 3x
|
|---|
| SPI | 1x
|
|---|
| I²C | 5x
|
|---|
| SDIO/SD/MMC | 1x SDIO
|
|---|
| PWM | 4x
|
|---|
| GPIO | 5x
|
|---|
| JTAG | 1x
|
|---|
| I³C | 1x
|
|---|
| RGMII | 1x
|
|---|
| USXGMII | 1x
|
|---|
|
| Video |
|---|
| GPU Engine | 2D GPU
Arm Mali-G310 Graphic Processing Unit
3D GPU supporting 64 GFLOPs FP32
OpenGL® ES 3.2
Vulkan® 1.3
OpenCL™ 3.0
|
|---|
| 2D Acceleration | Yes
|
|---|
| 3D Acceleration | Yes
|
|---|
| Video Decode | 4Kp60 H.265 and H.264
|
|---|
| Video Encode | 4Kp60 H.265 and H.264
|
|---|
|
| Audio |
|---|
| Audio Codec | On carrier board
|
|---|
| Audio Interface | I²S
|
|---|
|
| Power Specifications |
|---|
| Power Input | 5V DC +/-5%
|
|---|
| Power Consumption | Depending on Configuration
|
|---|
|
| Software Support |
|---|
| Standard Support | Linux
Yocto
Debian
Android
|
|---|
|
| Environmental and Mechanical |
|---|

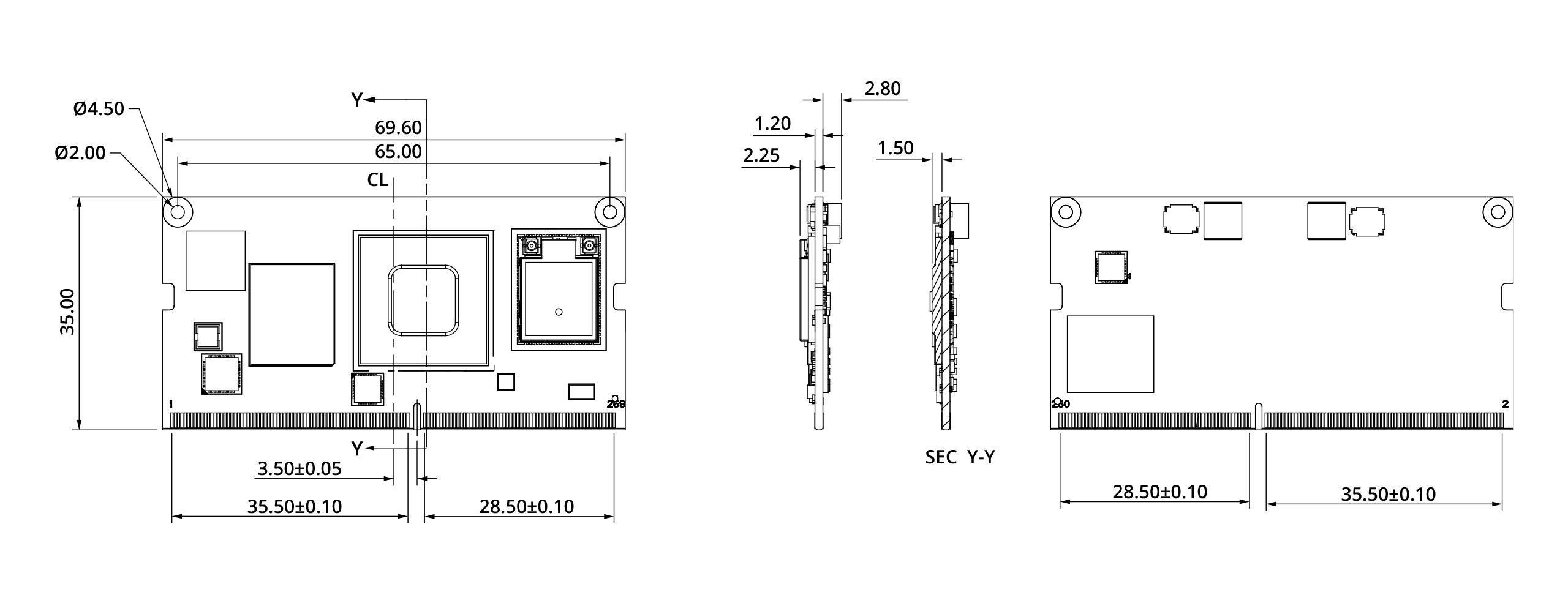

| Dimensions | 69.6 (W) x 35 (H) x 6.25 (D) mm
|
|---|
| Weight | 13 grams
|
|---|
| Form Factor | EDM
|
|---|
| MTBF | 100,000+ Hours
|
|---|
| Shock | 15G half-sine 11 ms duration
|
|---|
| Vibration | 1 Grms random 5-500Hz hr/axis
|
|---|
| Relative Humidity | 10 to 90 %
|
|---|
| Operation Temperature | Commercial: 0°C to +60°C
Industrial: -40°C to +85°C
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8473.30.1180
|
|---|
| ECCN | EAR99
|
|---|
| CCATS | 740.17(b)(1) Mass Market (No License Required)
|
|---|
|
