| Core System |
|---|
| Processor | Synaptics SL2610
|
|---|
| Processor Speed | upto 2Ghz
|
|---|
| Architecture | Arm Cortex A55
|
|---|
| PMIC | Discrete Power Solution
|
|---|
| Memory | Upto 1GB DDR3L
Upto 2GB LPDDR4
|
|---|
| Storage | 16GB eMMC (default)
|
|---|
| Board-to-Board Connector | 260-pin DDR4 SO-DIMM
|
|---|
| System on Module | AIOM
|
|---|
| Debug Interface | JTAG Interface by Through-hole
|
|---|
|
| Connectivity |
|---|
| Network LAN | 1x Realtek RTL8211F
RGMII
|
|---|
| Wi-Fi | Synaptics SYN4612 Wi-Fi 6 1×1
|
|---|
| Bluetooth | Synaptics SYN4612 BT6
|
|---|
| Antenna | MHF4 connector
|
|---|
|
| Software Support |
|---|
| Standard Support | Linux
Yocto
|
|---|
|
| Environmental and Mechanical |
|---|

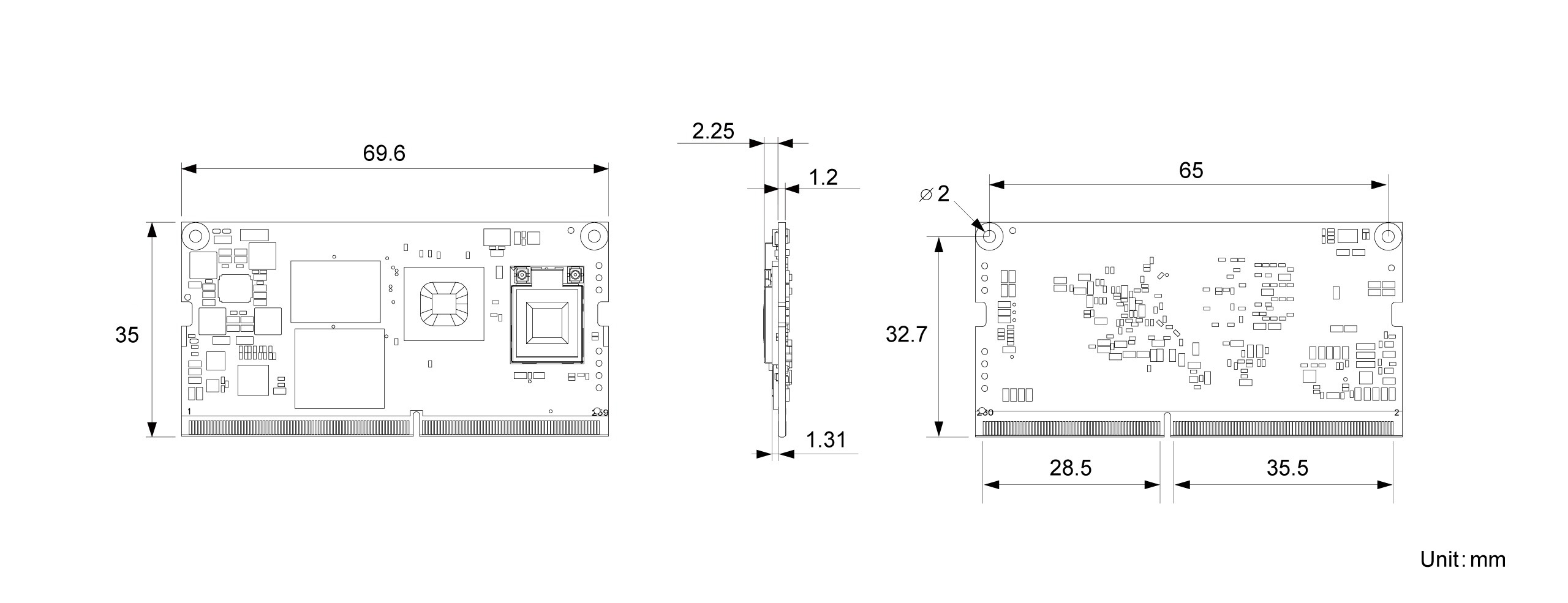

| Dimensions | 69.6 x 35mm
|
|---|
| Weight | ≤ 12 grams
|
|---|
| Form Factor | AIOM
|
|---|
| MTBF | 50,000 Hours
|
|---|
| Shock | 15G half-sine 11 ms duration
|
|---|
| Vibration | 1 Grms random 5-500Hz hr/axis
|
|---|
| Relative Humidity | 10 to 90 %
|
|---|
| Operation Temperature | Commercial: 0°C to +60°C
Industrial: -40°C to +85°C
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8473.30.1180
|
|---|
| ECCN | 5A992.c Mass Market
|
|---|
| CCATS | 740.17(b)(1) Mass Market (No License Required)
|
|---|
| REACH / RoHS | Yes
|
|---|
|
