| Information |
|---|
| Deserializer | MAX96716A
|
|---|
| Frame Sync Support | Sync mode / non-Sync mode support
|
|---|
|
| Interface |
|---|
| Support Camera Quantity | Up to 8 Cameras
|
|---|
| Connector | FAKRA SMB Jack Z-Code
|
|---|
| DIO Connector | 20-Pin Expansion
120-Pin Jetson Camera Connector
|
|---|
|
| Power Specifications |
|---|
| Power Input | 10-30V DC
|
|---|
| Power Connector | Molex 430450412
|
|---|
| Power Consumption | Depending on Configuration
|
|---|
|
| Software Support |
|---|
| Platform Support | NVIDIA Jetson AGX Orin
|
|---|
| Operation Systems | Linux
|
|---|
| SDK | VizionViewer™ / VizionSDK
|
|---|
|
| Environmental and Mechanical |
|---|

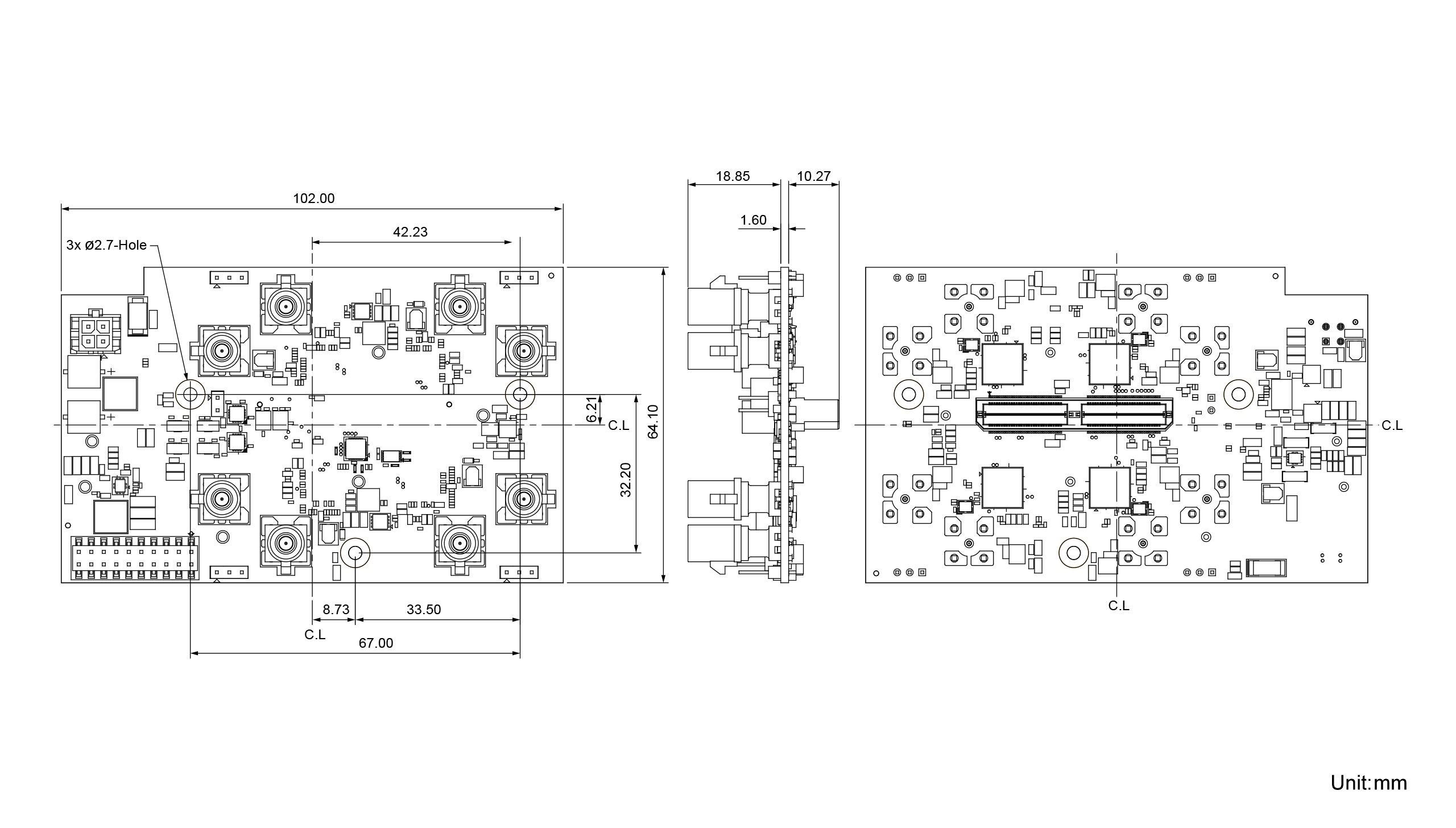

| Dimensions | 102 x 64.1 mm
|
|---|
| Weight | 68 grams
|
|---|
| Operation Temperature | -30°C to +70℃
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8473.30.1180
|
|---|
| ECCN | EAR99
|
|---|
| REACH / RoHS | Yes
|
|---|
|
