VL-FPD3-8CAM-RPI22

  • Supports up to 8 FPD-Link III cameras with frame synchronization
  • Compatible with NVIDIA® Jetson™ Orin Nano and Orin NX platform
  • Transmits video over coaxial cable up to 15 meters via FAKRA connectors
  • Compact and low-profile design for easy system integration

Order this product

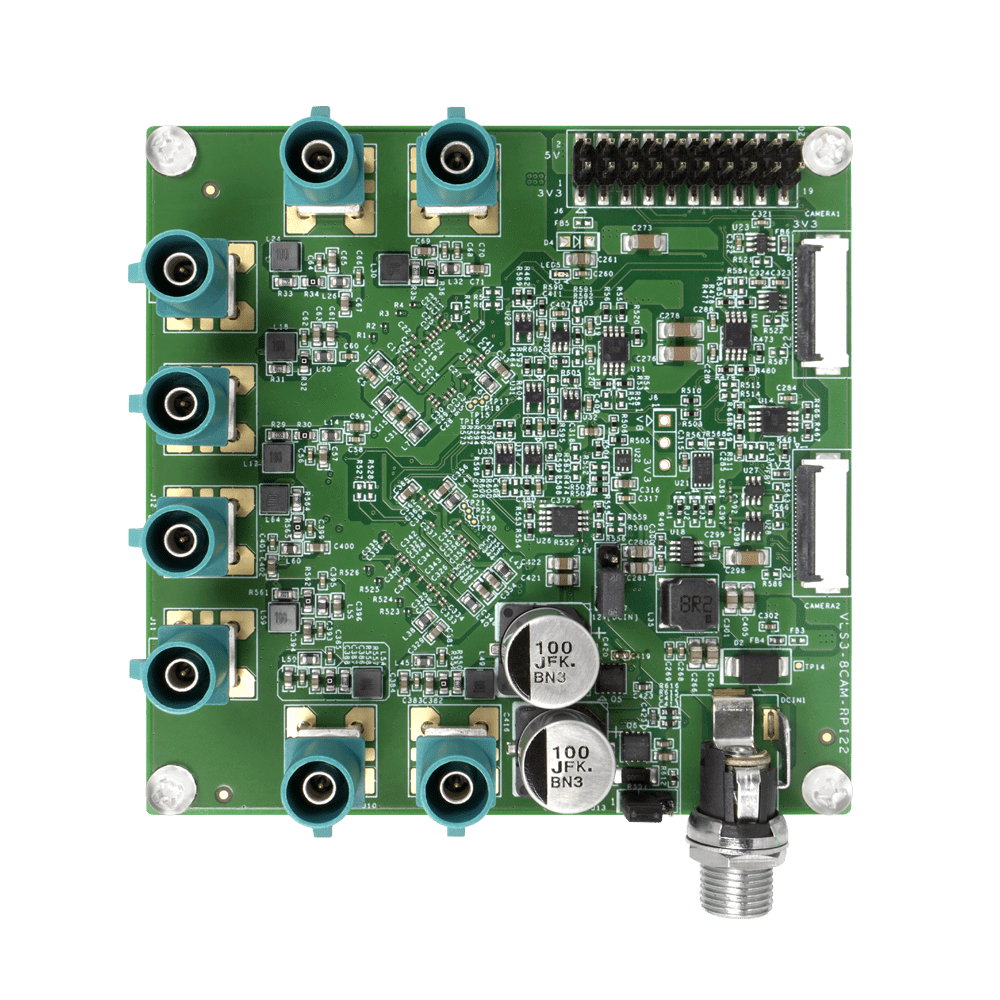

VL-FPD3-8CAM-RPI22 Front
VL-FPD3-8CAM-RPI22

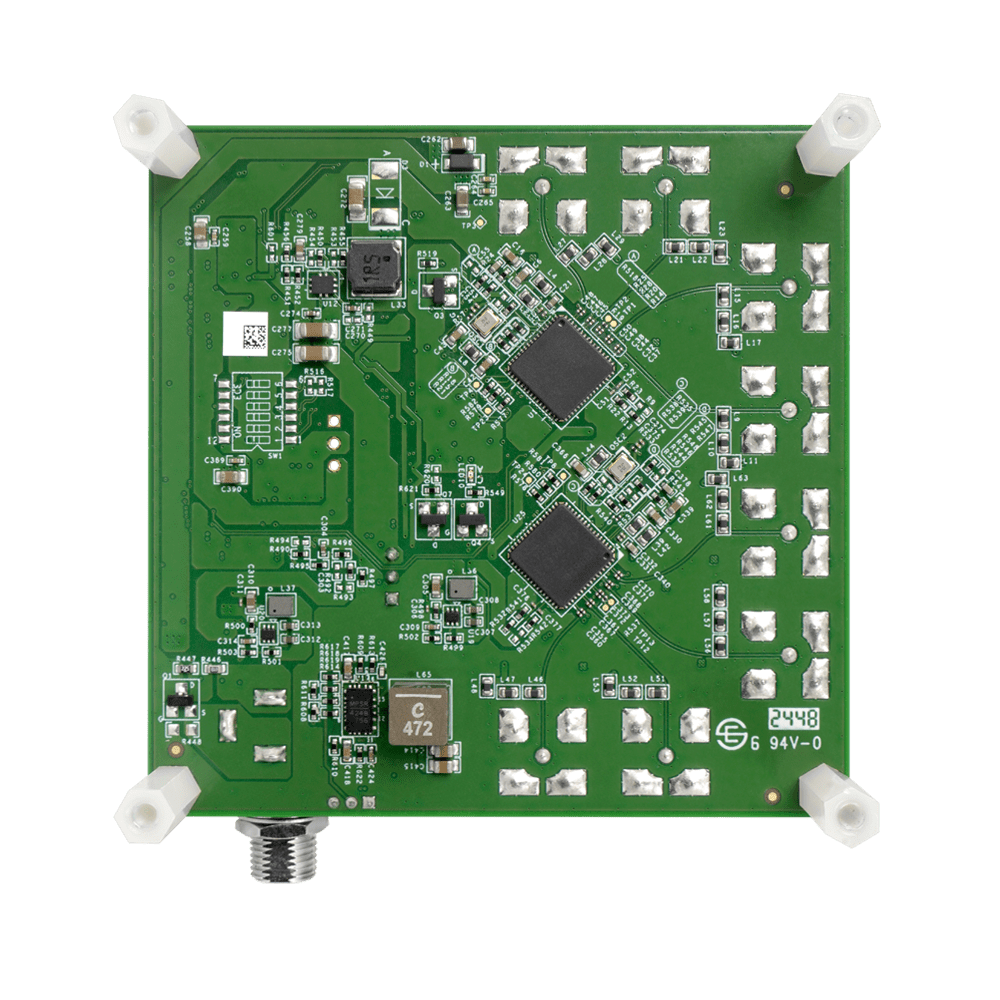

VL-FPD3-8CAM-RPI22 Back
VL-FPD3-8CAM-RPI22

VL-FPD3-8CAM-RPI22 Highlights

Jetson Orin Nano

Jetson Orin NX

1-8 Port

Multi Camera Frame Sync

Specifications

Interface
Connector

FAKRA SMB Jack Z-Code
Power Specifications
Power Input

10-30V DC

Power Consumption

Depending on Configuration

Power Connector

DC Jack
Software Support
Platform Support

NVIDIA Jetson Orin Nano / NX

Operation Systems

Linux

SDK

VizionViewer™ / VizionSDK
Environmental and Mechanical
Dimensions

79 x 80 mm

Weight

64 grams

Operation Temperature

-30°C to +70℃
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

EAR99

REACH / RoHS

Yes

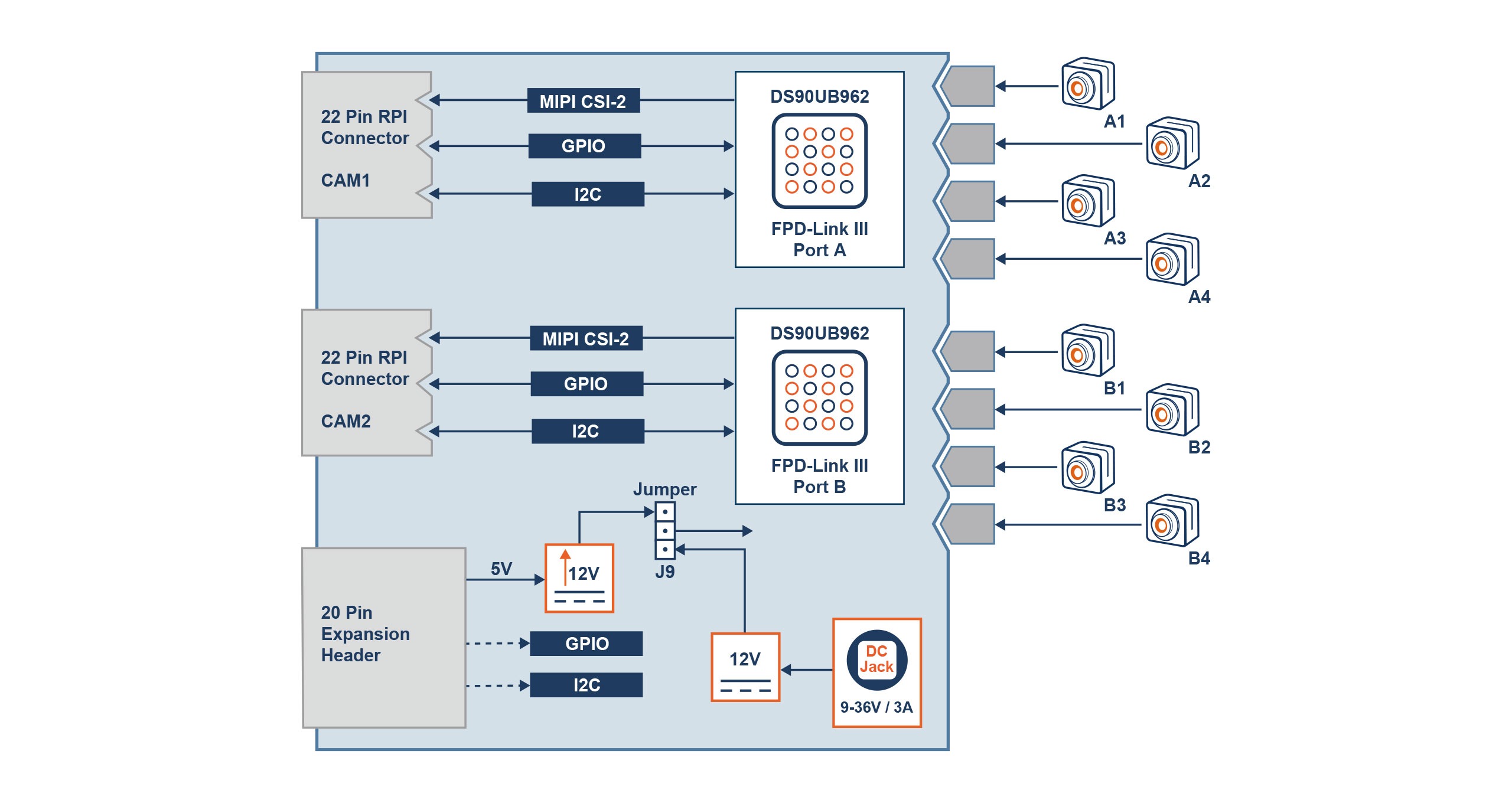

Block Diagram

VL-FPD3-8CAM-RPI22 Block Diagram

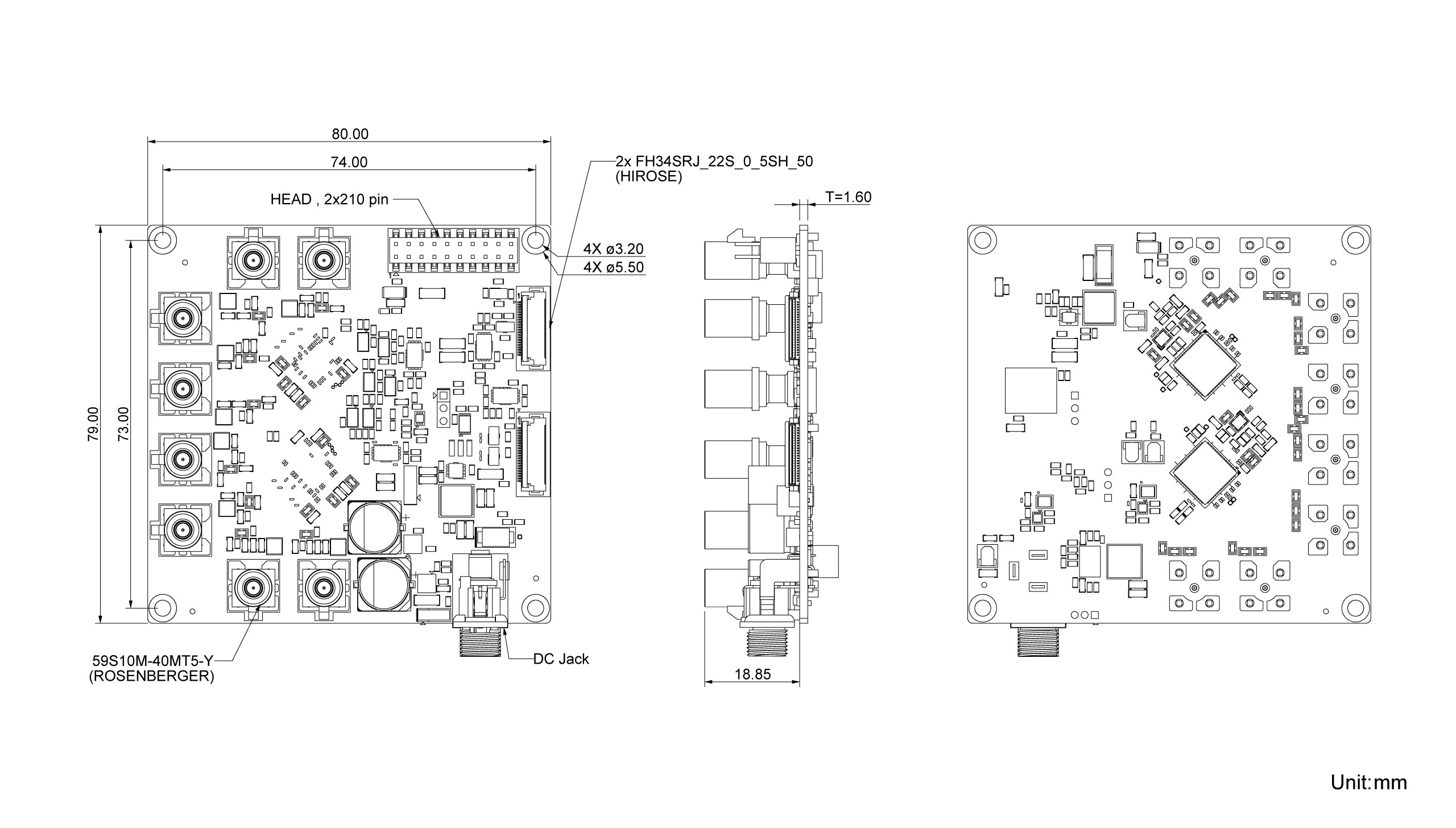

Dimensions

VL-FPD3-8CAM-RPI22 Dimensions

Documentation
