USB3 Type-C PCB Board Camera with onsemi AR1335 13MP Rolling Shutter with Onboard ISP and S-mount Lens - UVCI-AR1335-SL

UVCI-AR1335-SL Highlights

VizionViewer™

Interchangeable Lenses

ISP

Rolling Shutter

Rugged and Reliable

Cost Saving

Time to Market

Low Power

Specifications

Camera Information

CMOS Sensor	onsemi AR1335
Active Pixels	4208 (H) x 3120 (V) = 13MP
Pixel Size	1.1 μm x 1.1 μm
Optical Format	1/3.2” (Diagonal 5.8 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Illuminated type	Back Side Illuminated (BSI)
Maximum Frame Rate (MJPEG)	4200 x 3120 @ 20 fps 3840 x 2160 @ 30 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 120 fps
Maximum Frame Rate (UYVY)	4200 x 3120 @ 5 fps 3840 x 2160 @ 7 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 30 fps 1280 x 720 @ 30 fps 640 x 480 @ 30 fps
Maximum S/N Ratio	37 dB
HDR Support	Yes
Output Format	UYVY MJPEG (JPG)

Interface

Connector	USB Type-C 5 Gbps

Power Specifications

Supply Voltage	5V ± 5%
Power Consumption	UYVY 4200 x 3120 @ 12 fps ≤ 1.4W
Standby Power	≤ 0.3W Standby

Software Support

Operation Systems	UVC Plug-and-play Windows 10/11 Linux Yocto
SDK	VizionViewer™ SDK

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 25.6(D) mm
Weight	18 grams
Relative Humidity	10 to 90 %
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Operation Temperature	-30°C to +70℃
Vibration	1 Grms random 5-500Hz hr/axis

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

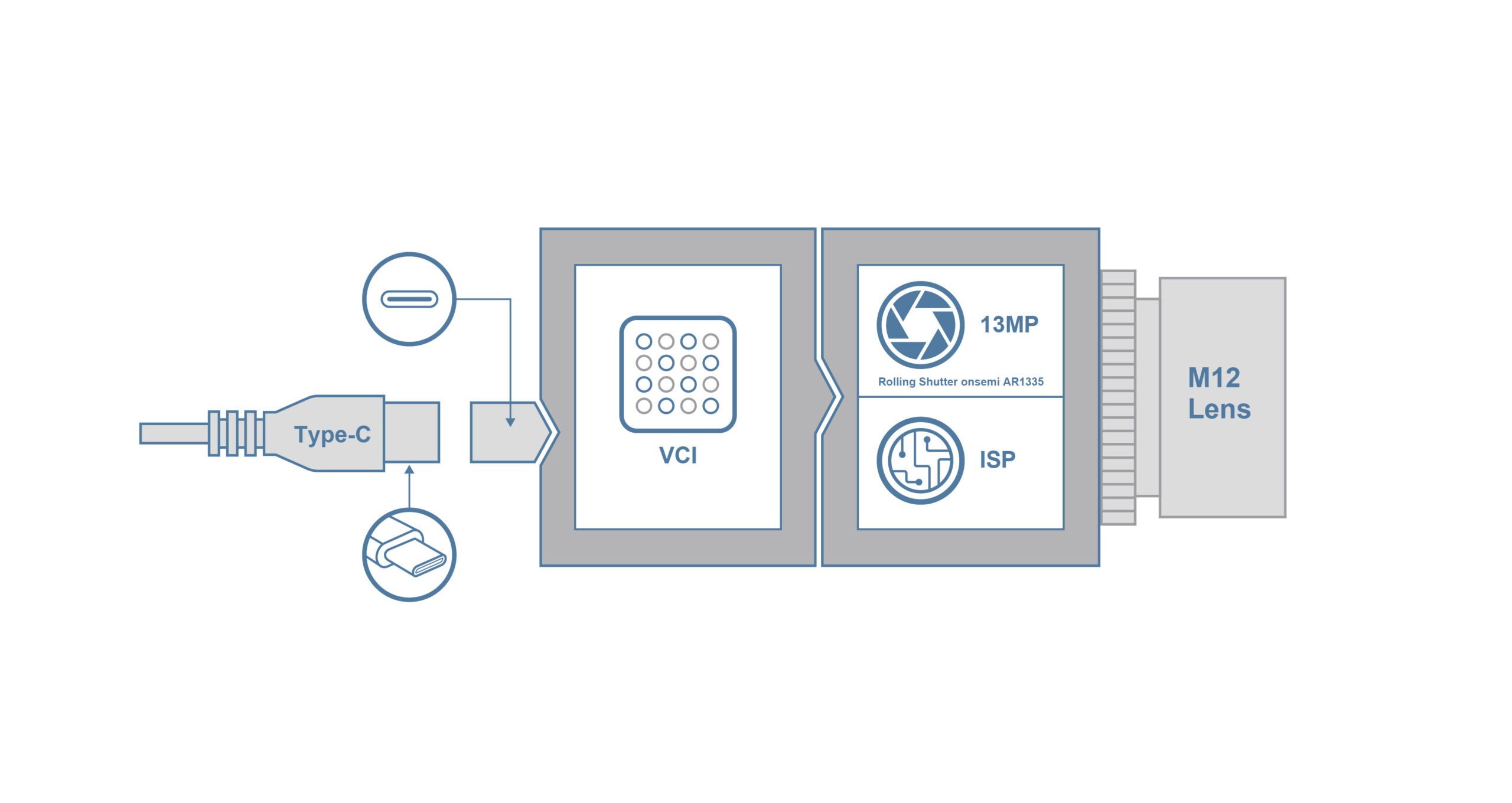

Block Diagram

Dimensions

Spectral Characteristics

Part Numbers

Order Information Example:

UVCI-AR1335-x-Sxx-xx

Option	Code	Description
Chromaticity	C	Color
Lens	S85	S-Mount Module D-FOV 85°
Filter	-	-
Filter	IR	IR Cut Filter 650nm

For further customization or questions about orders, contact your TechNexion sales representative.

UVCI-AR1335-C-S85-IR

USB3 Type-C PCB Board Camera with onsemi AR1335 13MP Color Rolling Shutter with Onboard ISP + 85 Degree M12 Lens with IR-Cut Filter
