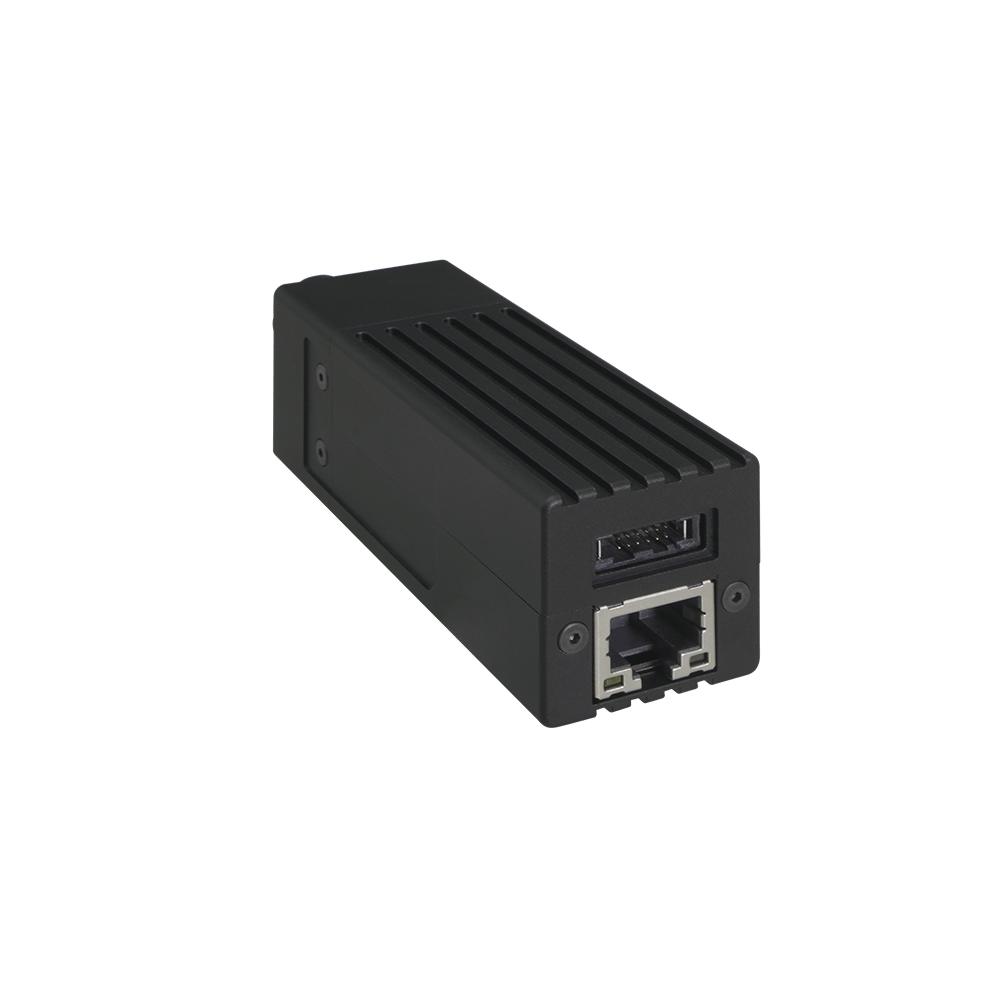

MESOS-V1300-G1-AR0235-SL

Specifications

Core System

Architecture	1x Arm Cortex-M33 1x Arm Cortex-M7 6x Arm® Cortex-A55 multicore complex NXP eIQ® Neutron Neural Processing Unit
Memory	On-Board 2GB LPDDR4
Storage	32GB eMMC (default)

AI / Vision Capabilities

NPU / AI	8 TOPS

Connectivity

Network LAN	1x 1GbE Ethernet
GigE Vision	Ver. 3.0 & RoCEv2

Camera Information

CMOS Sensor	onsemi AR0235
Active Pixels	1920 (H) x 1200 (V) = 2.3MP
Pixel Size	2.8 μm x 2.8 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	37 dB
Optical Format	1/2.8” (Diagonal 6.34 mm)
Shutter Type	Global Shutter
Chromaticity	Color / Mono
Maximum Frame Rate (YUV422-UYVY)	1920 x 1200 @ 60 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 120 fps 640 x 480 @ 120 fps
Maximum Frame Rate (MJPEG)	1920 x 1200 @ 100 fps 1920 x 1080 @ 100 fps 1280 x 720 @ 120 fps 640 x 480 @ 120 fps
Output Format	YUV422-UYVY MJPEG(JPG)

Interface

Connector	USB Type-C 5 Gbps

Power Specifications

Supply Voltage	5V ± 5%
Power Consumption	≤ 1.4W
Standby Power	≤ 0.1W Standby

Software Support

Operation Systems	UVC Plug-and-play Windows 10/11 Linux Yocto
SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Dimensions	29.5(W) x 29.5(H) x 28.5(D) mm
Weight	44 grams
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Vibration	1 Grms random 5-500Hz hr/axis
Relative Humidity	10 to 90 %
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.89.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

Dimensions

Spectral Characteristics

Part Numbers

Order Information Example:

MESOS-V13xx-G1-AR0235-x-Sxx-xx

Option	Code	Description
Memory	20	2GB LPDDR4
Chromaticity	C	Color
Chromaticity	M	Monochrome

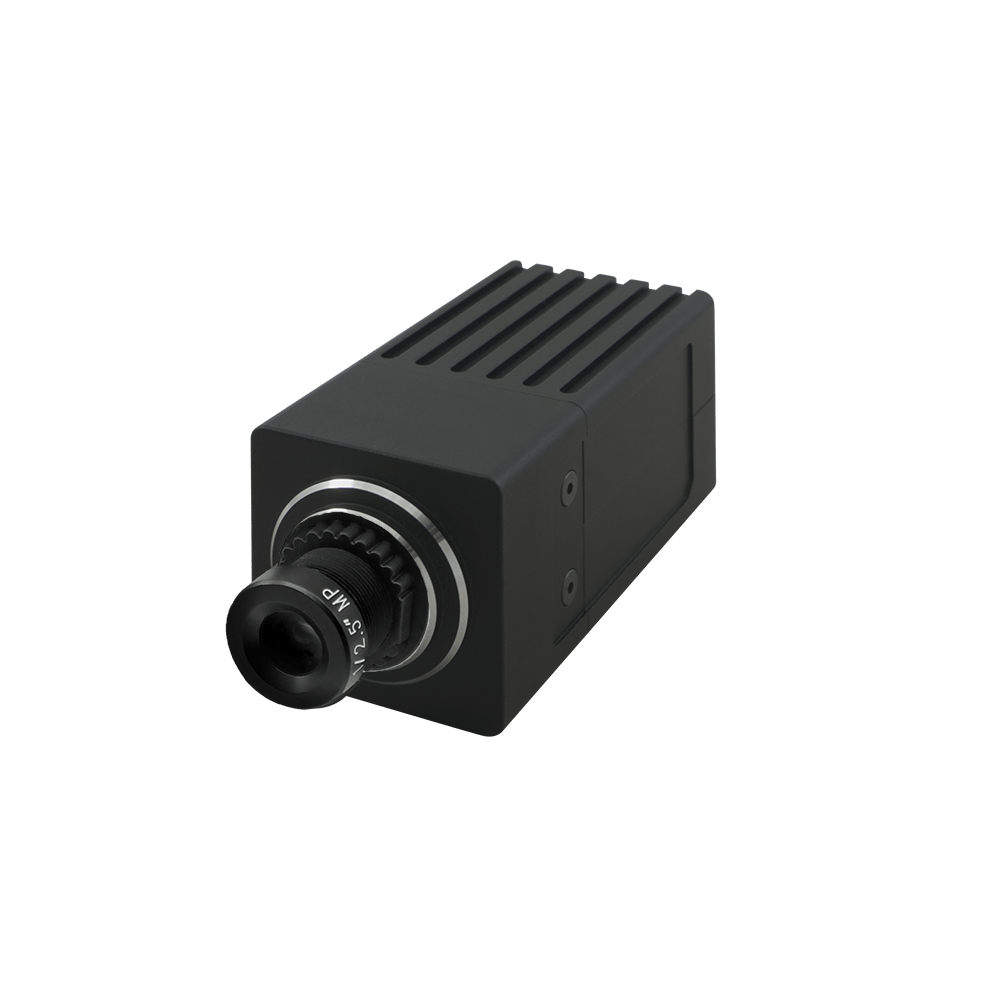

Lens	S30	S-Mount Module D-FOV 30°

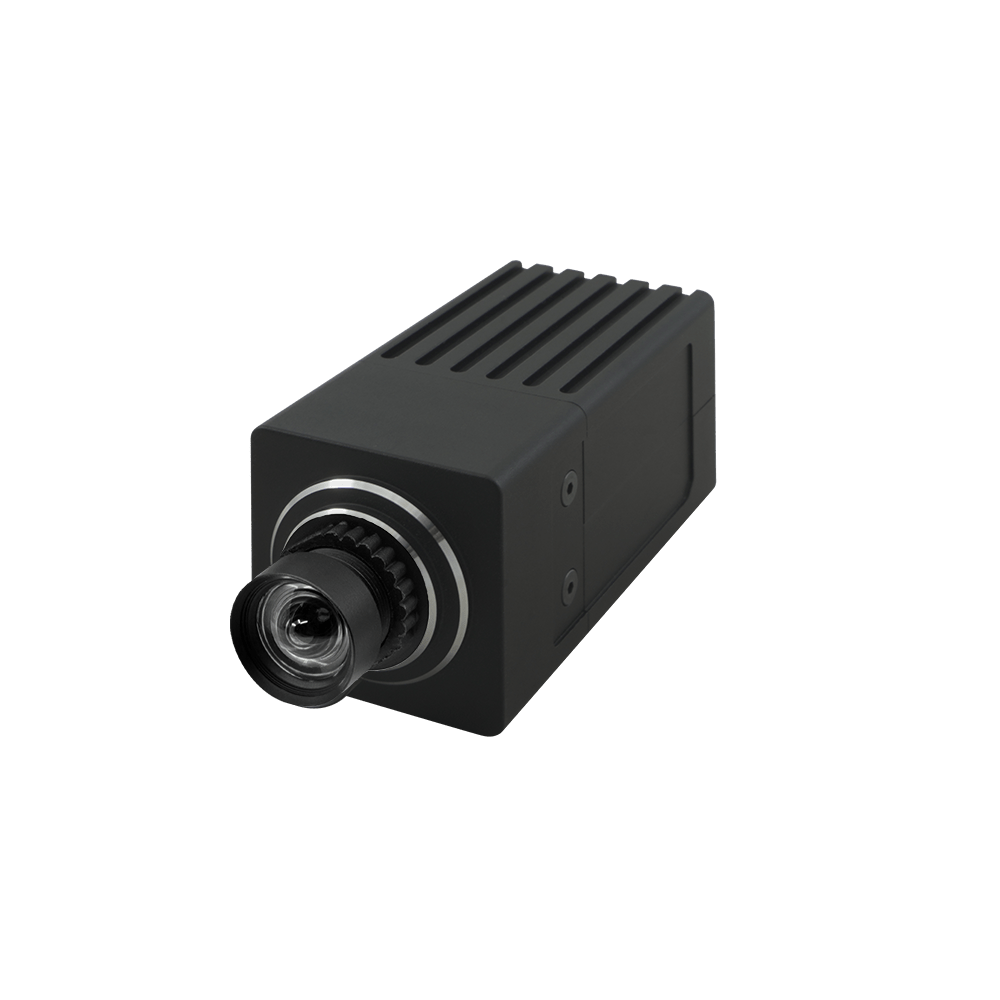

	S79	S-Mount Module D-FOV 79°

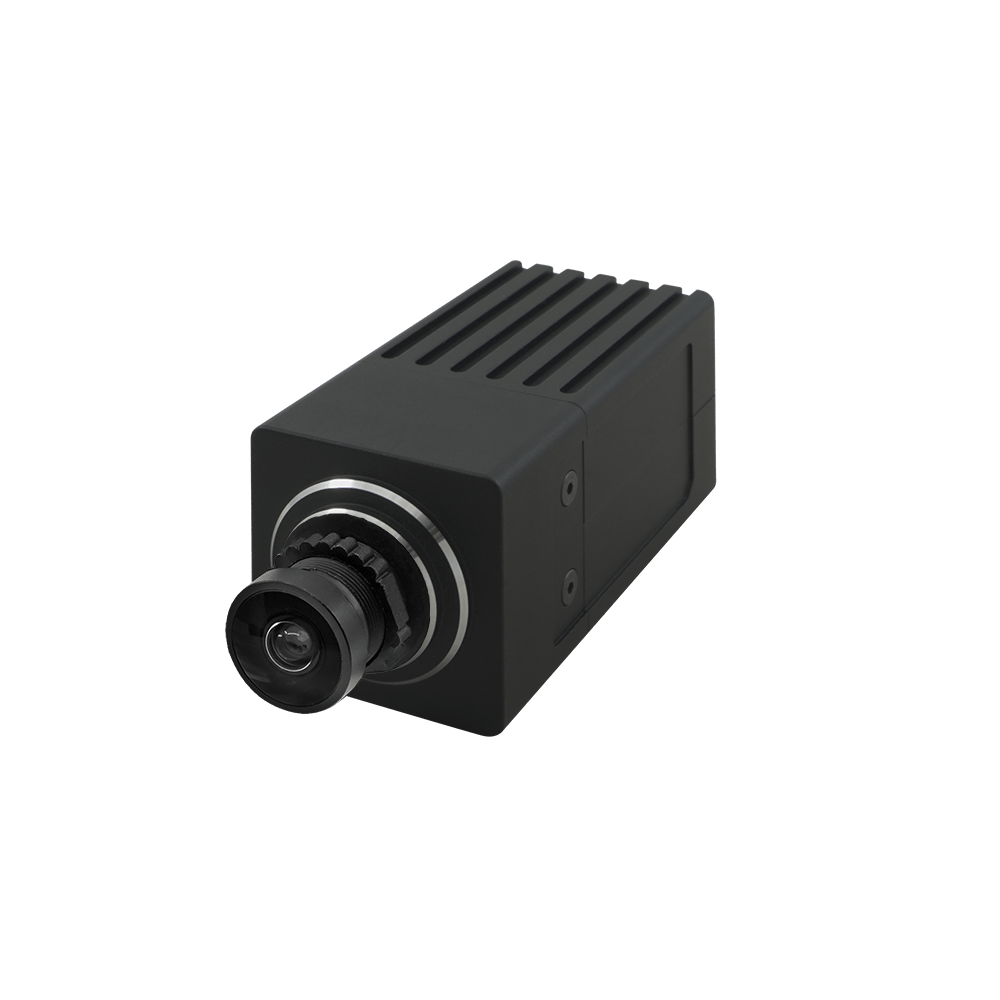

	S120	S-Mount Module D-FOV 120°
	S200	S-Mount Module D-FOV 200°
Filter	-	-
Filter	IR	IR Cut Filter 650nm

For further customization or questions about orders, contact your TechNexion sales representative.
