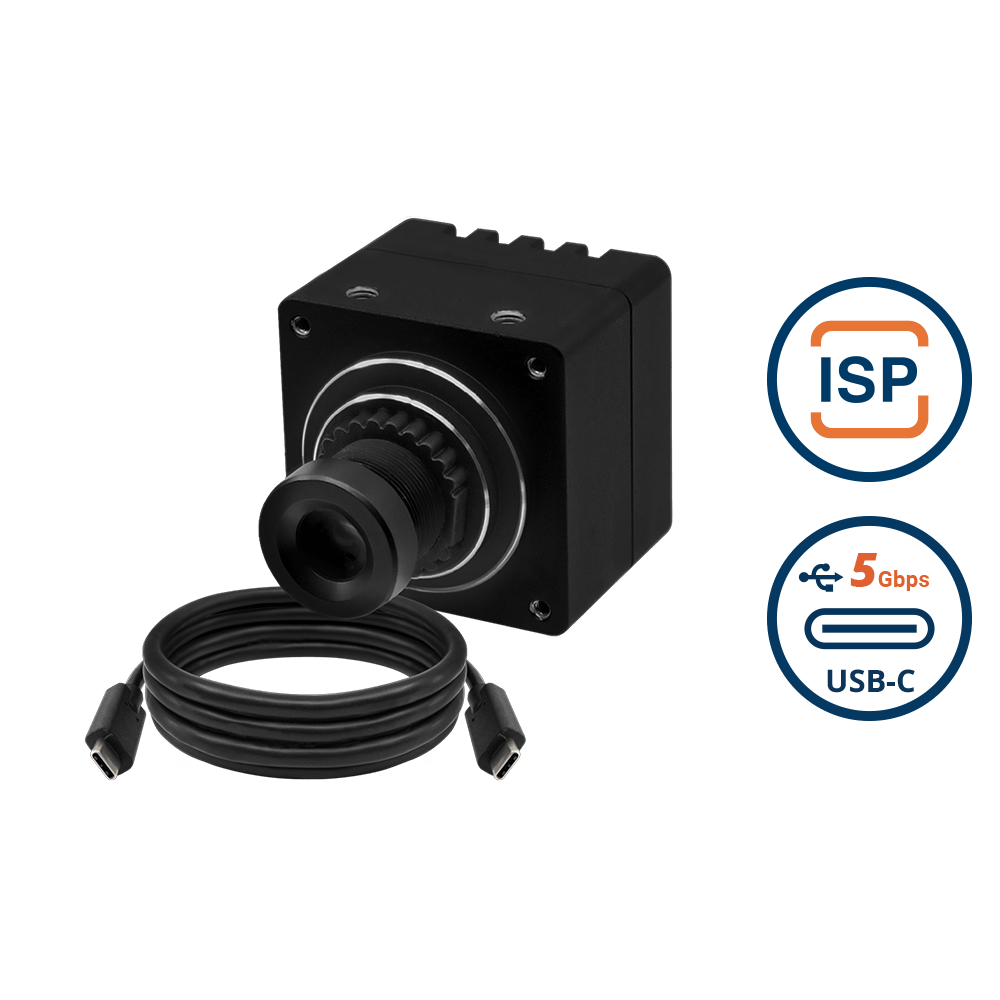

VCS-AR0145-SL-IR Narrow FOV Kit
VCS-AR0145-SL Narrow FOV
VCS-AR0145 Back

VCS-AR0145-M-S31-IR

SKU: VCSAR0145MS31IR Category:

USB3 Type-C Aluminium Enclosed Camera with onsemi AR0145 1MP Monochrome Global Shutter with Onboard ISP + 31 Degree M12 Lens with IR-Cut Filter + Incl. 1 Meter USB C Cable

More Information
Product Brief

$178.40

Quantity Discount (%) Price
1 - 49 — $178.40
50 - 199 5.94 % $167.80
200 - 499 11.88 % $157.20
500 - 999 17.83 % $146.60
1,000+ 23.77 % $136.00

Specifications

Additional information

Camera Information
CMOS Sensor

onsemi AR0145

Active Pixels

1280 (H) x 800 (V) = 1MP

Pixel Size

2.8 μm x 2.8 μm

Illuminated type

Front Side Illuminated (FSI)

Maximum S/N Ratio

38 dB

Optical Format

1/4.3” (Diagonal 4.23 mm)

Shutter Type

Global Shutter

Chromaticity

Mono

Maximum Frame Rate (YUV422-UYVY)

1280 x 800 @ 115 fps
1280 x 720 @ 115 fps
640 x 480 @ 115 fps

Maximum Frame Rate (MJPEG)

1280 x 720 @ 115 fps
1280 x 800 @ 115 fps
640 x 480 @ 115 fps

Output Format

UYVY
MJPEG(JPG)
Interface
Connector

USB Type-C 5 Gbps
Power Specifications
Supply Voltage

5V ± 5%

Power Consumption

1280 x 800 @ 115 fps ≤ 1W

Standby Power

≤ 0.1W Standby
Software Support
Operation Systems

UVC Plug-and-play
Windows 10/11
Linux
Yocto

SDK

VizionViewer™ / VizionSDK
Lens Information
Focus Type

Fixed Focus

Focal Length

8 mm

Aperture

F1.6

Module D-FOV

31.2° ± 5%

Module H-FOV

26.3° ± 5%

Module V-FOV

16.3° ± 5%

TTL

26.2 mm

BFL

7.8 mm

MOD

0.3 m

Distortion

< – 5.03%

IR-Filter

650 nm

Lens Operating Temperature

-20°C to +60°C
Environmental and Mechanical
Dimensions

29.5(W) x 29.5(H) x 28.5(D) mm

Weight

44 grams

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Vibration

1 Grms random 5-500Hz hr/axis

Relative Humidity

10 to 90 %

Operation Temperature

-30°C to +70℃
Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.89.5050

ECCN

EAR99

REACH / RoHS

Yes

Block Diagram

VCS-AR0145-SL Block Diagram

Dimensions

VCS-AR0145-SL Dimensions

Spectral Characteristics

AR0145 Spectral Characteristics
