VCM-AR0246-C-S143-IR

Name: VCM-AR0246-C-S143-IR
Brand: TechNexion
SKU: VCMAR0246CS143IR
Availability: InStock

SKU: VCMAR0246CS143IR Category: VCM USB3 Series Brand: TechNexion

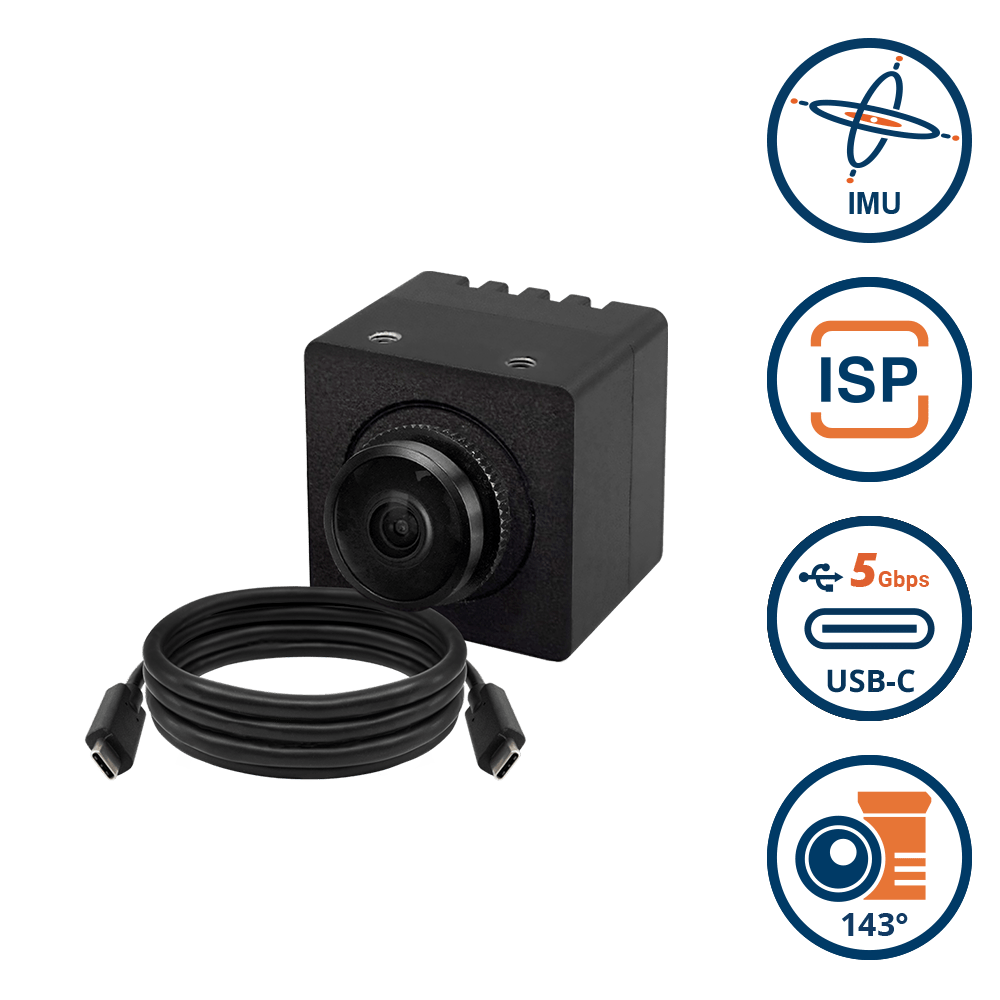

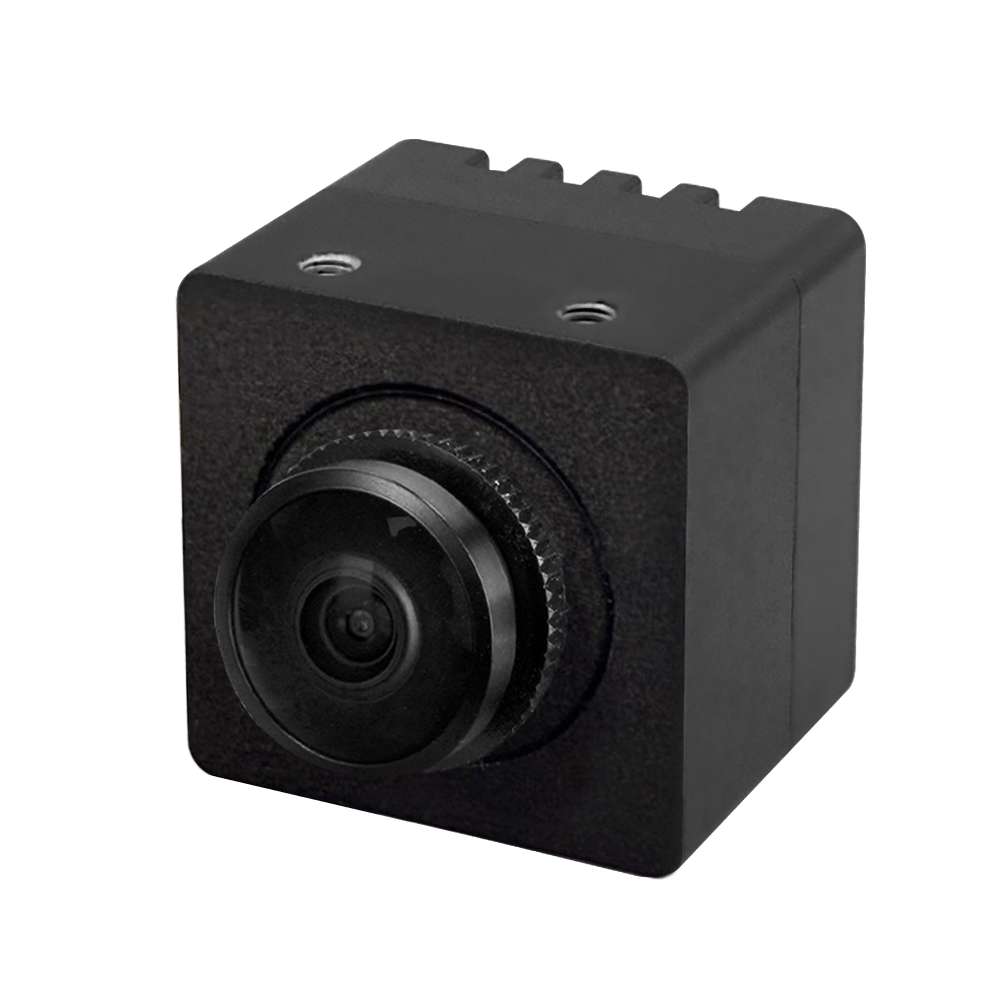

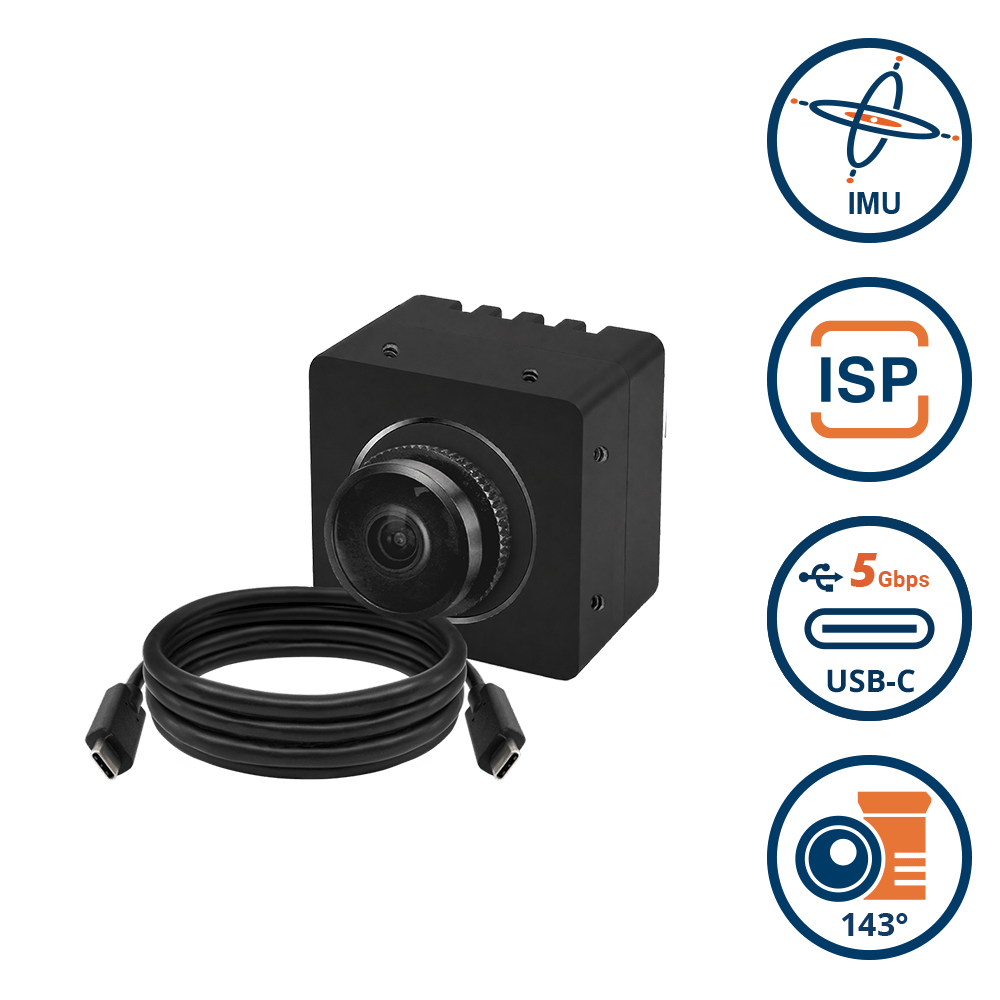

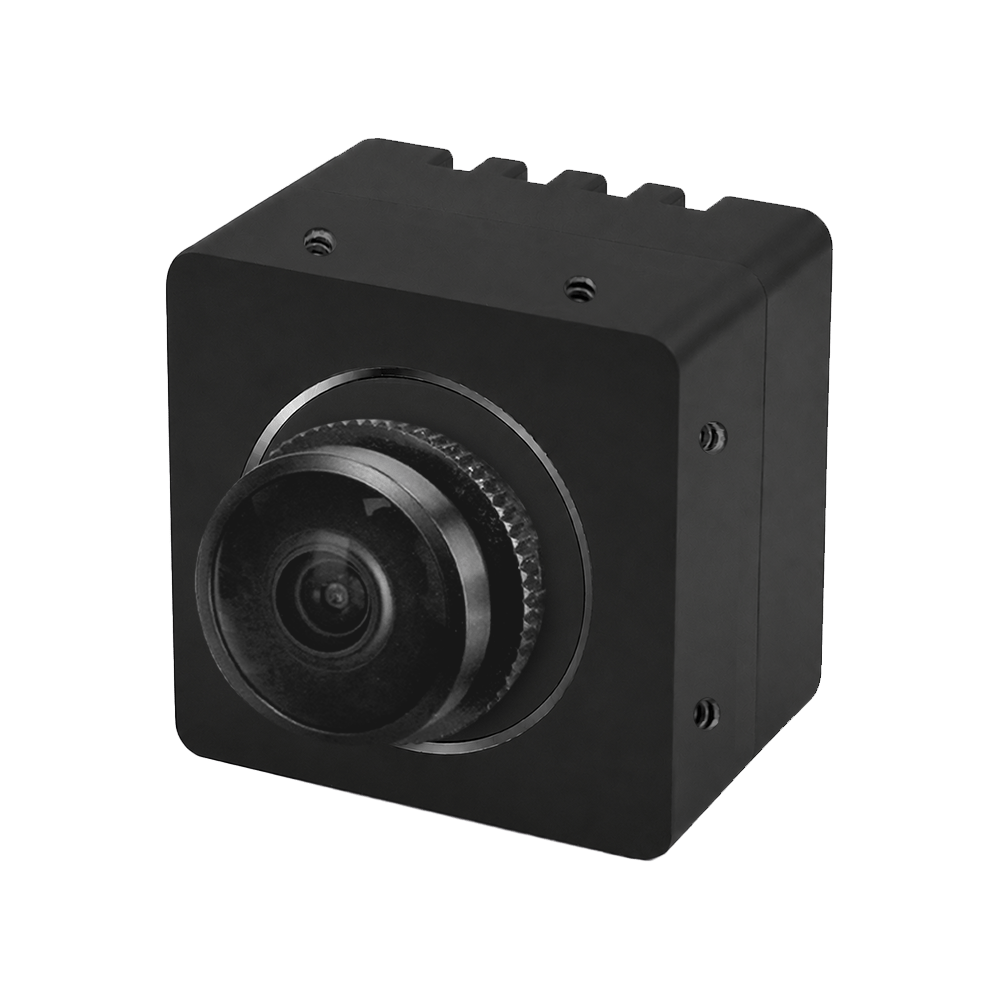

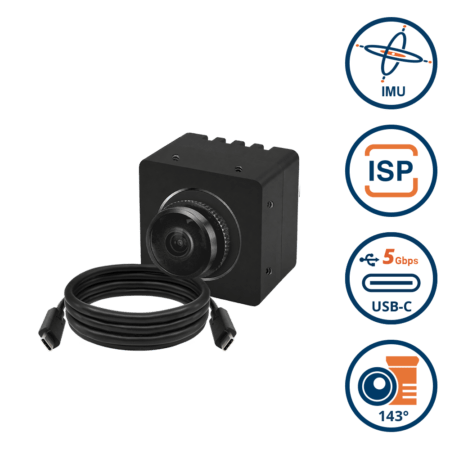

USB3 Type-C Enclosed Camera with onsemi AR0246 2MP Full-HD Color Rolling Shutter with onboard IMU + ISP + 143 Degree M12 Lens with IR-Cut Filter + Incl. 1 Meter USB C Cable

More Information

Product Brief

Quantity	Discount (%)	Price
1 - 50	—	$228.50
51 - 199	7.55 %	$211.25
200 - 499	13.46 %	$197.75
500+	19.54 %	$183.85

180 in stock (can be backordered)

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0246
Active Pixels	1920 (H) x 1080 (V) = 2MP
Pixel Size	2.0 μm x 2.0 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	39 dB
Optical Format	1/4” (Diagonal 4.41 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	1920 x 1080 @ 30 fps 1280 x 720 @ 30 fps 640 x 480 @ 30 fps
Maximum Frame Rate (MJPEG)	1280 x 720 @ 30 fps 1920 x 1080 @ 30 fps 640 x 480 @ 30 fps
Output Format	UYVY MJPEG(JPG)
HDR Support	Yes

Interface

Connector	USB Type-C 5 Gbps

Power Specifications

Supply Voltage	5V ± 5%
Power Consumption	UYVY 1920 x 1080 @ 30 fps ≤ 1.2W
Standby Power	≤ 0.1W Standby

Software Support

Operation Systems	UVC Plug-and-play Windows 10/11 Linux Yocto
SDK	VizionViewer™ / VizionSDK

Motion Sensors

IMU	ST Microelectronics LSM6DSO16IS
Accelerometer	3-axis accelerometer with selectable full scale: ±2/±4/±8/±16 g
Gyroscope	3-axis gyroscope with selectable full scale: ±125/±250/±500/±1000/±2000 dps
Temperature Sensor	Embedded temperature sensor

Lens Information

Focus Type	Fixed Focus
Focal Length	1.8 mm
Aperture	F2.3
Module D-FOV	143° ± 5%
Module H-FOV	114° ± 5%
Module V-FOV	80° ± 5%
TTL	15.9 mm
BFL	4.0 mm
MOD	0.2 m
Distortion	< – 98°
IR-Filter	650 nm

Environmental and Mechanical

Dimensions	29.5(W) x 29.5(H) x 21(D) mm
Weight	44 grams
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Vibration	1 Grms random 5-500Hz hr/axis
Relative Humidity	10 to 90 %
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.89.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

UVCM-AR0246-SL Block Diagram

Spectral Characteristics

AR0246 Spectral Characteristics

VCM-AR0246-C-S143-IR

Specifications

Additional information

Block Diagram

Spectral Characteristics
