VLS-GM2-AR0246-CB Kit

VLS-GM2-AR0246-C-CB-IR

SKU: VLSGM2AR0246CCBIR Category: VLS GMSL2™ Series Brand: TechNexion

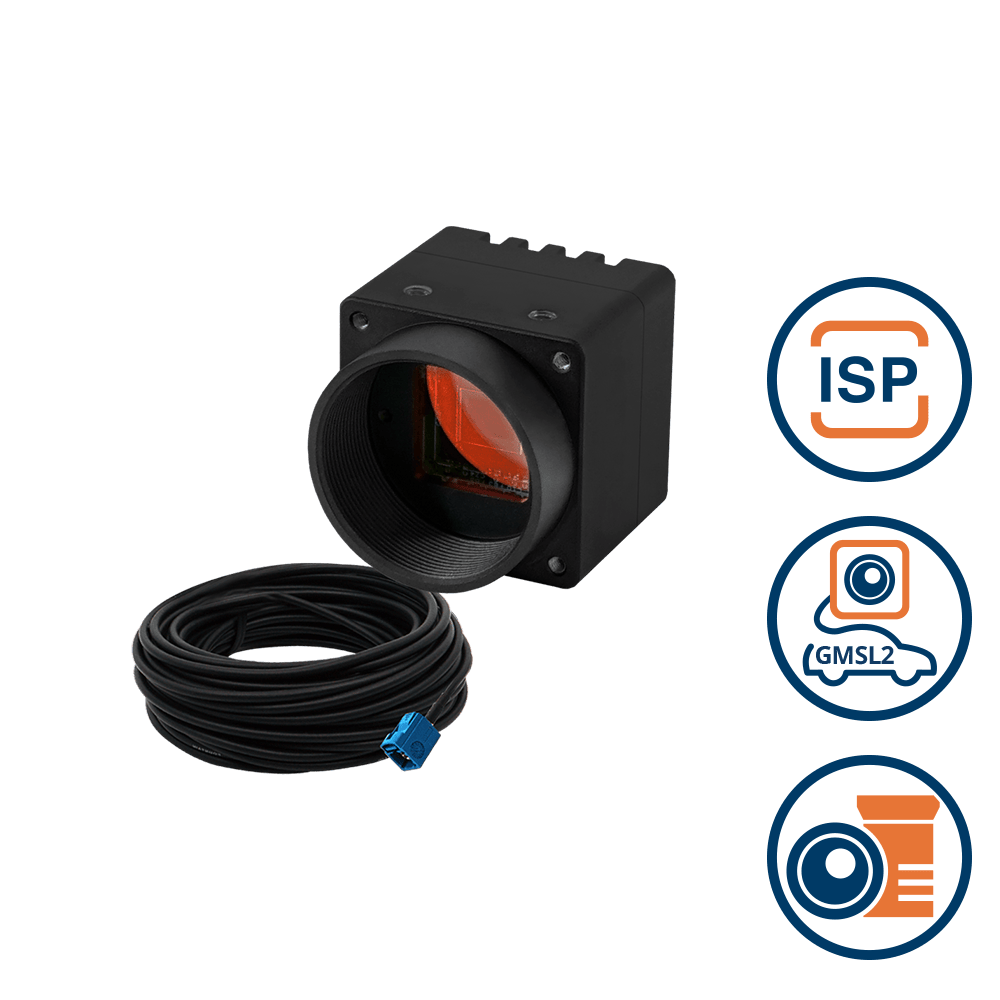

GMSL2 Enclosed Camera with onsemi AR0246 2MP Full-HD Color Rolling Shutter with Onboard ISP + IR-Cut Filter with C Mount Body

More Information

Product Brief

Quantity	Discount (%)	Price
1 - 50	—	$170.00
51 - 199	7.76 %	$156.80
200 - 499	13.76 %	$146.60
500+	20 %	$136.00

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0246
Active Pixels	1920 (H) x 1080 (V) = 2MP
Pixel Size	2.0 μm x 2.0 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	39 dB
Optical Format	1/4” (Diagonal 4.41 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	1920 x 1080 @ 30 fps 1280 x 720 @ 30 fps 640 x 480 @ 30 fps
Output Format	YUV422-UYVY RGB888 RGB565 RAW8 RAW10 RAW12
HDR Support	Yes

Interface

Serial Link	GMSL2™
Serializer	MAX96717
Connector	FAKRA SMB Jack Z-Code

Power Specifications

Power over Coax	10.8V – 26.4V
Power Consumption	TBD
Standby Power	TBD

Software Support

Platform Support	NVIDIA Jetson AGX Orin NVIDIA Jetson Orin Nano / NX NXP i.MX95 NXP i.MX8M Plus Intel Arrow Lake Intel Panther Lake
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Dimensions	29.5(W) x 29.5(H) x 33.2(D) mm
Weight	40 grams
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Vibration	1 Grms random 5-500Hz hr/axis
Relative Humidity	10 to 90 %
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.89.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

VLS-GM2-AR0246-CB Block Diagram

Dimensions

VLS-GM2-AR0246-CB Dimension

Spectral Characteristics

AR0246 Spectral Characteristics
