UVLS-FPD3-AR0822-SL-IR Medium FOV Kit

UVLS-FPD3-AR0822 Back

UVLS-FPD3-AR0822-M-S72-IR

SKU: UVLSFPD3AR0822MS72IR Category: FPD-Link III Cameras

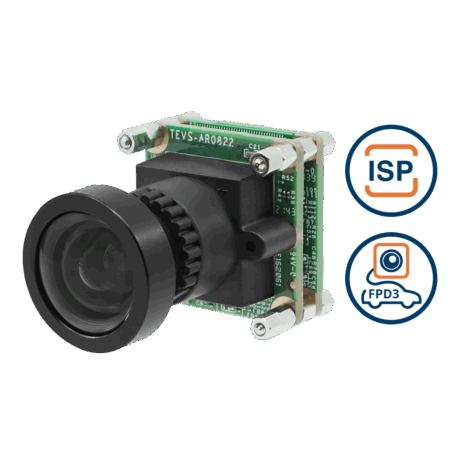

FPD-Link III PCB Board Level Camera with onsemi AR0822 8MP 4K Monochrome Rolling Shutter with Onboard ISP + 72 Degree M12 Lens with IR-Cut Filter

More Information

Product Brief

Quantity	Discount (%)	Price
1 - 49	—	$153.60
50 - 199	5.99 %	$144.40
200 - 499	11.98 %	$135.20
500 - 999	17.97 %	$126.00
1,000+	23.96 %	$116.80

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0822
Active Pixels	3848 (H) x 2168 (V) = 8MP
Pixel Size	2.0 μm x 2.0 μm
Illuminated type	Back Side Illuminated (BSI)
Maximum S/N Ratio	40.5 dB
Optical Format	1/1.8” (Diagonal 8.81 mm)
Shutter Type	Rolling Shutter
Chromaticity	Mono
Maximum Frame Rate (YUV422-UYVY)	3840 x 2160 @ 15 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Output Format	YUV422-UYVY RGB888 RGB565 RAW8 RAW10 RAW12
HDR Support	Yes

Interface

Serial Link	FPD-Link III
Serializer	TI DS90UB953
Connector	FAKRA SMB Jack Z-Code

Power Specifications

Power over Coax	10.8V – 26.4V
Power Consumption	UYVY 3840 x 2160 @ 15 fps ≤ 1.3W
Standby Power	≤ 0.1W Standby

Software Support

Platform Support	NVIDIA Jetson AGX Orin NVIDIA Jetson Orin Nano / NX NVIDIA Jetson Xavier NX NVIDIA Jetson Nano NXP i.MX95 TI Sitara™ AM68 / AM69 TI Jacinto™ TDA4VM / TDA4VH
Operation Systems	Linux Yocto
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	6 mm
Aperture	F2.8
Module D-FOV	72.0° ± 5%
Module H-FOV	64.7° ± 5%
Module V-FOV	39.0° ± 5%
TTL	28.6 mm
BFL	8.8 mm
MOD	0.1 m
Distortion	< 0.5%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 34.4(D) mm
Weight	25 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.89.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

UVLS-FPD3-AR0822-SL Block Diagram

Dimensions

UVLS-FPD3-AR0821-SL Dimensions

Spectral Characteristics

AR0822 Spectral Characteristics
