C2305500FF

SKU: C2305500FF Category:

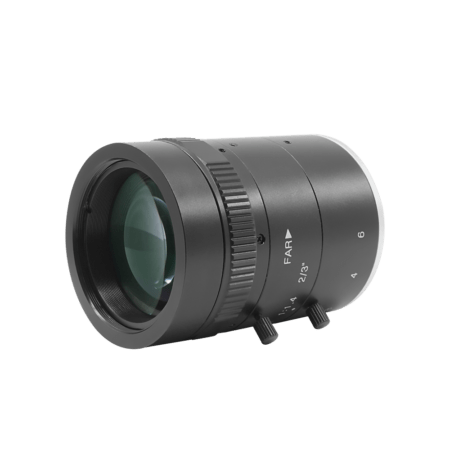

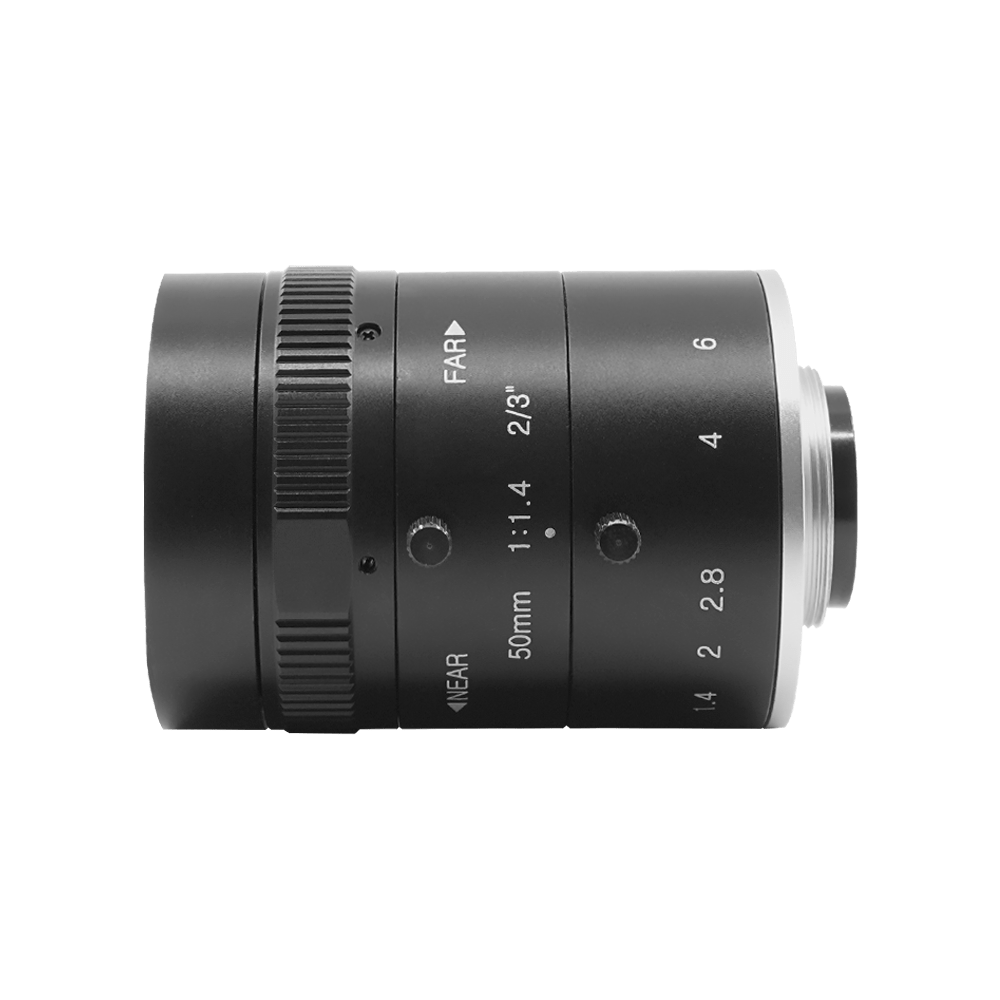

C-Mount Lens 50mm Fixed Focal Length Aperture Range From F1.4 ~ F16 Up To 5 Megapixel Resolution

1 in stock (can be backordered)

Quantity Discount (%) Price
1 - 24 $126.00
25+ 7.94 % $116.00
x

Specification

Additional information

Lens Information
Focal Length

50 mm

Aperture

F1.4 ~ F16

Lens D-FOV

14.2°

Lens H-FOV

12.5°

Lens V-FOV

7.0°

TTL

77.53 mm

BFL

13.05 mm

MOD

0.5 m

Distortion

< – 1.0%

Lens Operating Temperature

-20°C to +100°C

Image Size

2/3”

Resolution

5MP

Environmental and Mechanical
Weight

224 grams

Material

Metal

Mount Type

C-Mount

Operation Focal

Manual with Lock

Operation Iris

Manual with Lock

Operation Zoom

Fixed

Dimensions

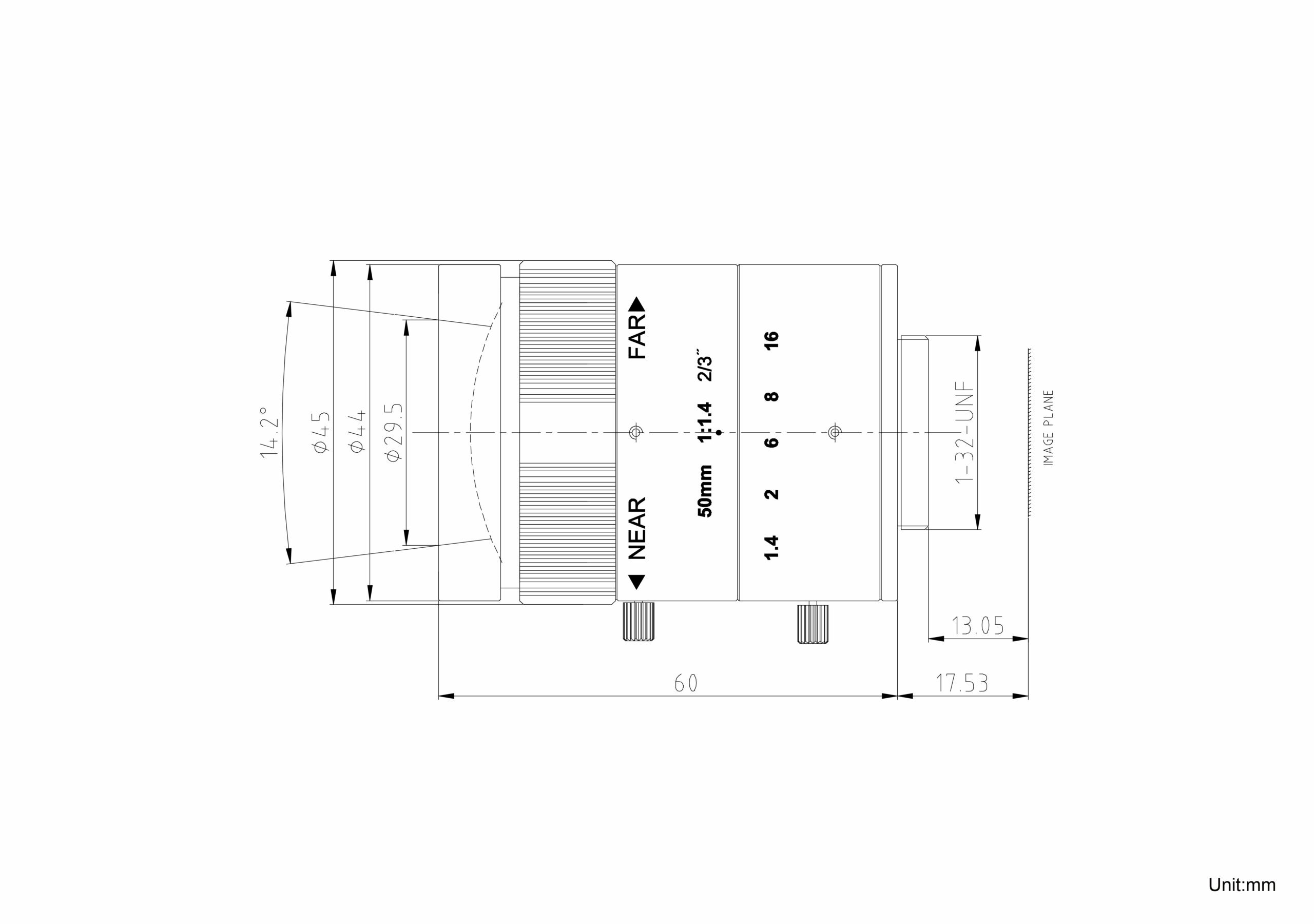

C2305500FF Dimension
