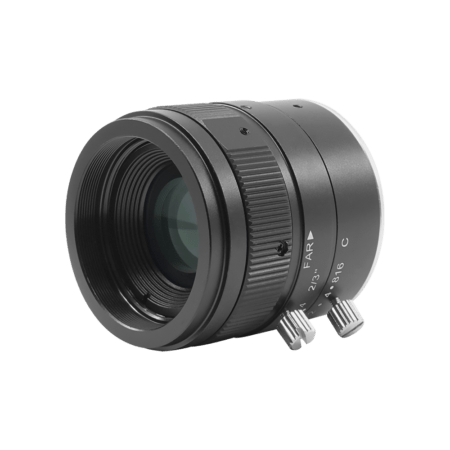

C2305250FF front-side

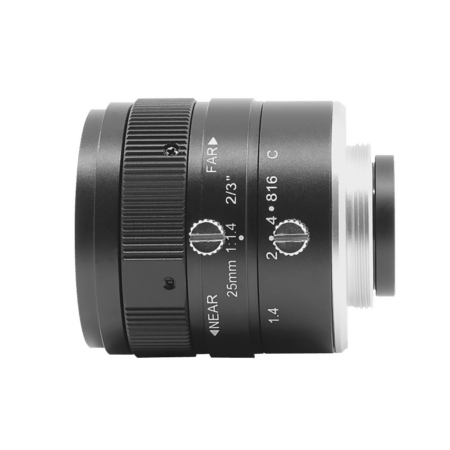

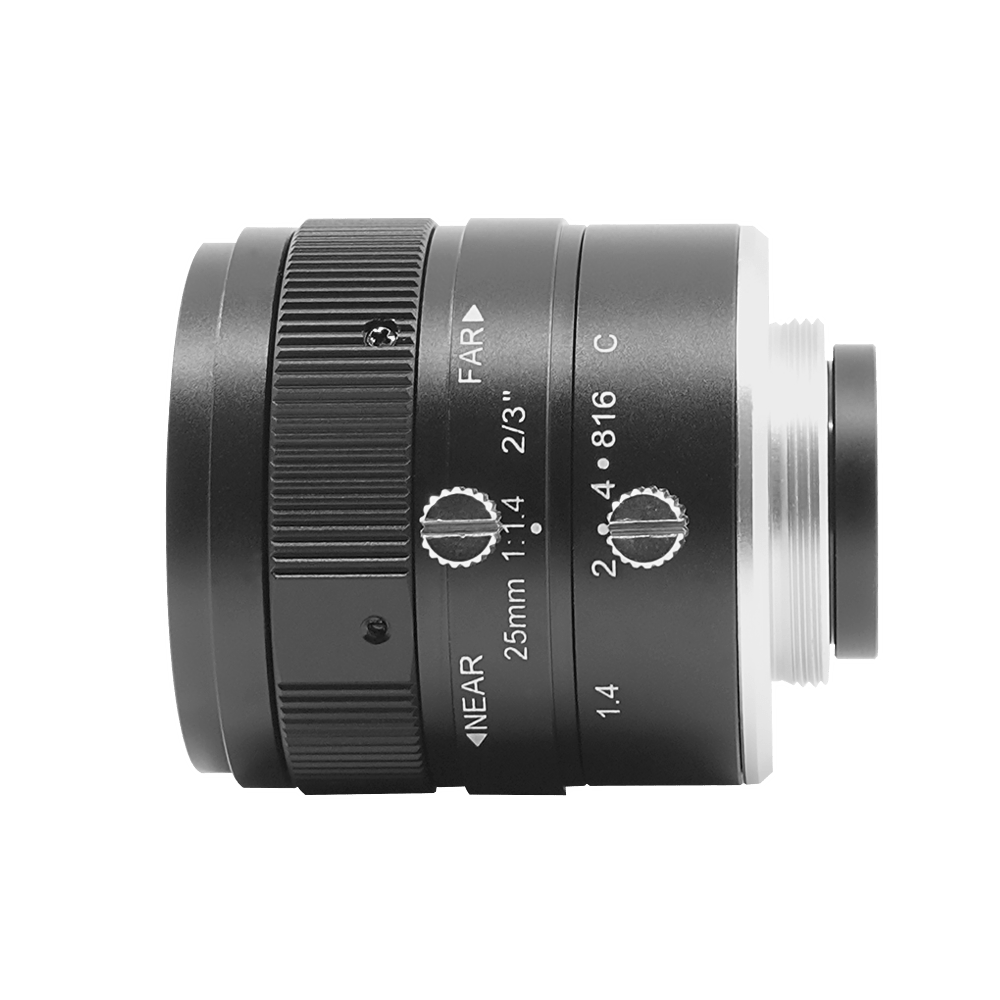

C2305250FF side

C2305250FF

SKU: C2305250FF Category:
More Information
Product Brief

C-Mount Lens 25mm Fixed Focal Length Aperture Range From F1.4 ~ Close Up To 5 Megapixel Resolution

Out of stock

Specifications

Additional information

Lens Information
Focal Length

25 mm

Aperture

F1.4 ~ Close

Lens D-FOV

24.8°

Lens H-FOV

21.0°

Lens V-FOV

12.0°

TTL

55.95 mm

BFL

11.60 mm

MOD

0.4 m

Distortion

＜ – 1.0%

Lens Operating Temperature

-20°C to +100°C

Image Size

2/3”

Resolution

5MP
Environmental and Mechanical
Weight

109 grams

Material

Metal

Mount Type

C-Mount

Operation Focal

Manual with Lock

Operation Iris

Manual with Lock

Operation Zoom

Fixed

Dimensions

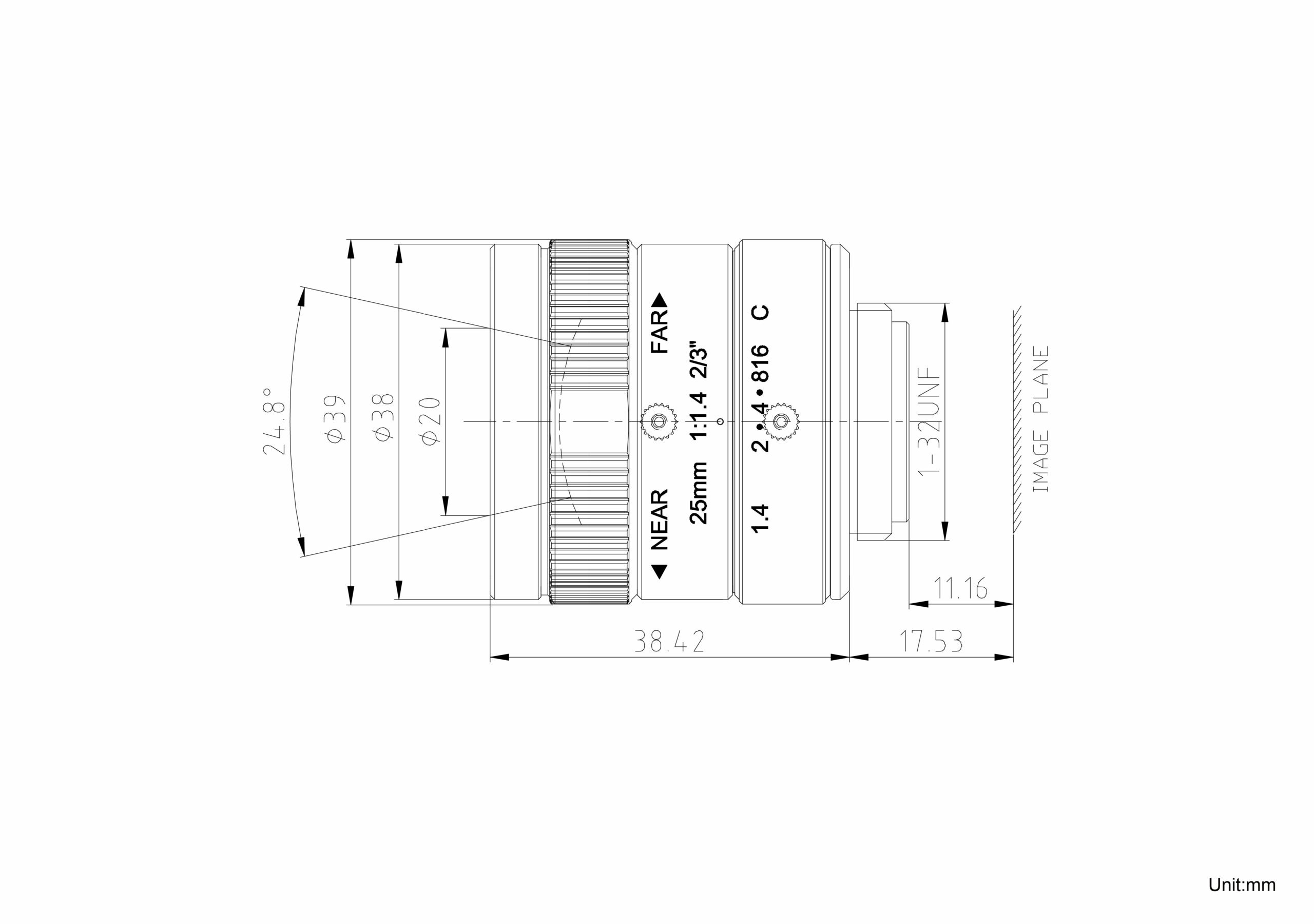

C2305250FF Dimension
